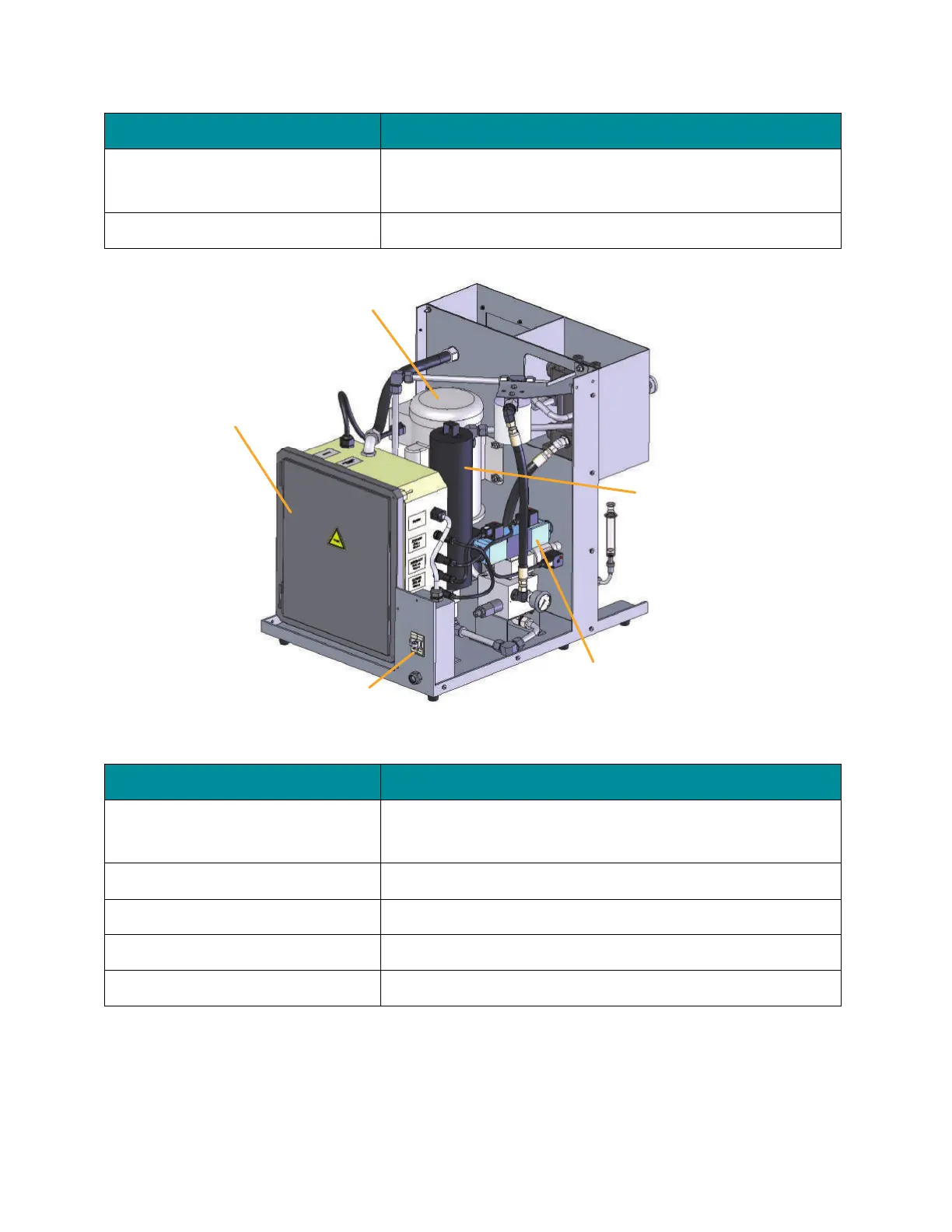

M. Process Pressure Gauge
Has a range from 0 to 40,000 psi. Note that the pressure being
monitored is NOT product pressure, but scaled hydraulic pressure that
represents the product process pressure.
Allows delivery of power upon system initialization.
O. Oil Fill
P. Accumulator Charge Port
Q. Directional Control Valve
R. Master Power On/O with Lockout Device
S. Electrical Box
Provides access for filling with hydraulic oil. Note: the oil must be
pre-filtered to at least 10 microns. Refer to Appendix E for the
recommended grade.
P. Accumulator Charge Port
Provides access for charging the accumulator.
Q. Directional Control Valve
Controls the flow direction of the hydraulic fluid.
Allows power to enter the unit.
