Warning Example
The GPIO peripheral is used and uses the device PAD bounded to package pin V24 (GPIO_3).
Configuring the USB peripheral such that the DATA1 port is connected to an MSIO (ULPI, I/O Group A)
results in a warning.
Figure 4-3 shows the warning icon displayed in the connectivity assignment table for the DATA1 port.
Figure 4-4 shows the warning icon displayed in the preview panel on the PAD resource for the DATA1
port.

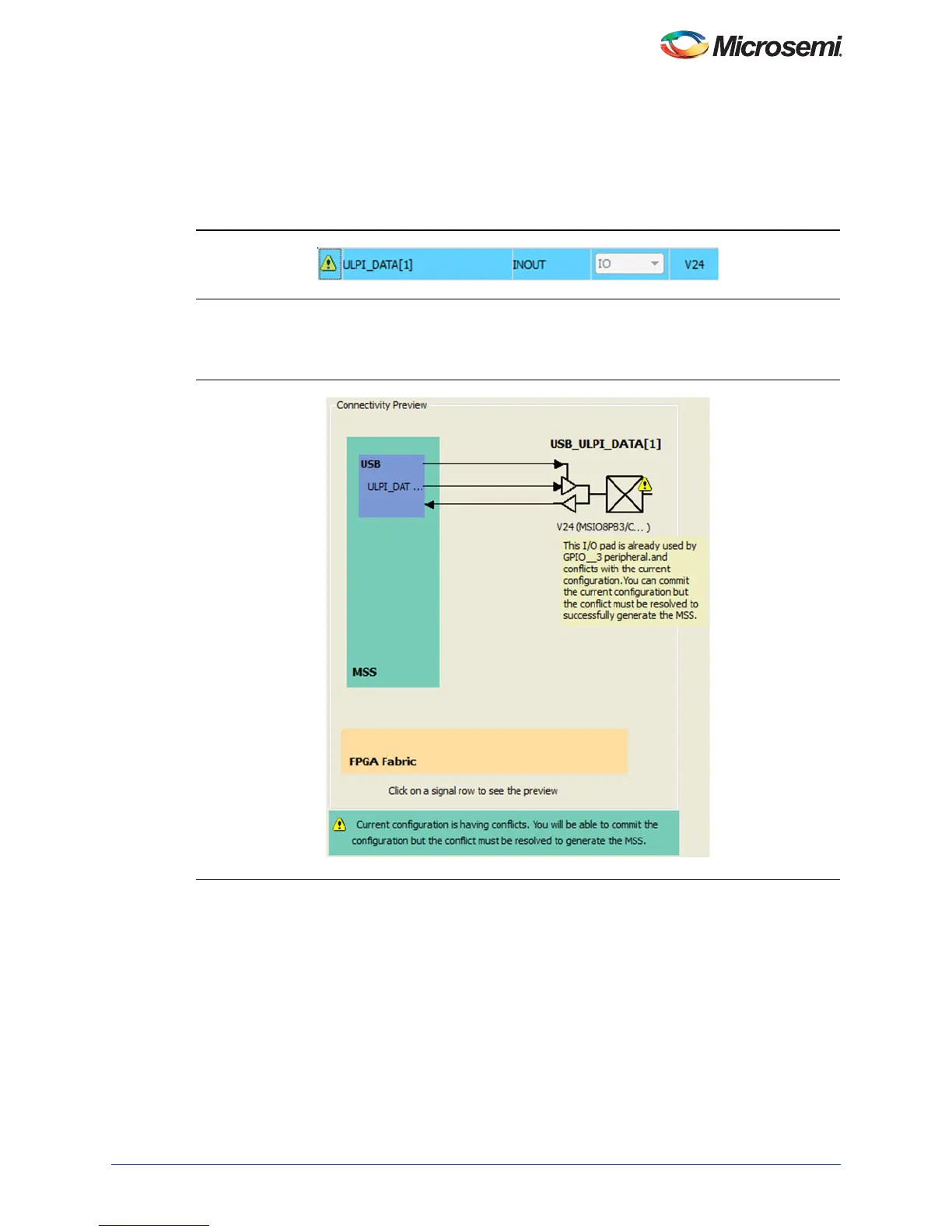

Figure 4-3 • Warning Displayed in the Connectivity Assignment Table
Figure 4-4 • Warning in the Preview Panel
