2.5 Installing SFP Modules
You can install or remove a SFP module without having to power off the switch.
Step 1: Insert the module into the SFP port.
Step 2: Press firmly to ensure that the module seats into the connector.

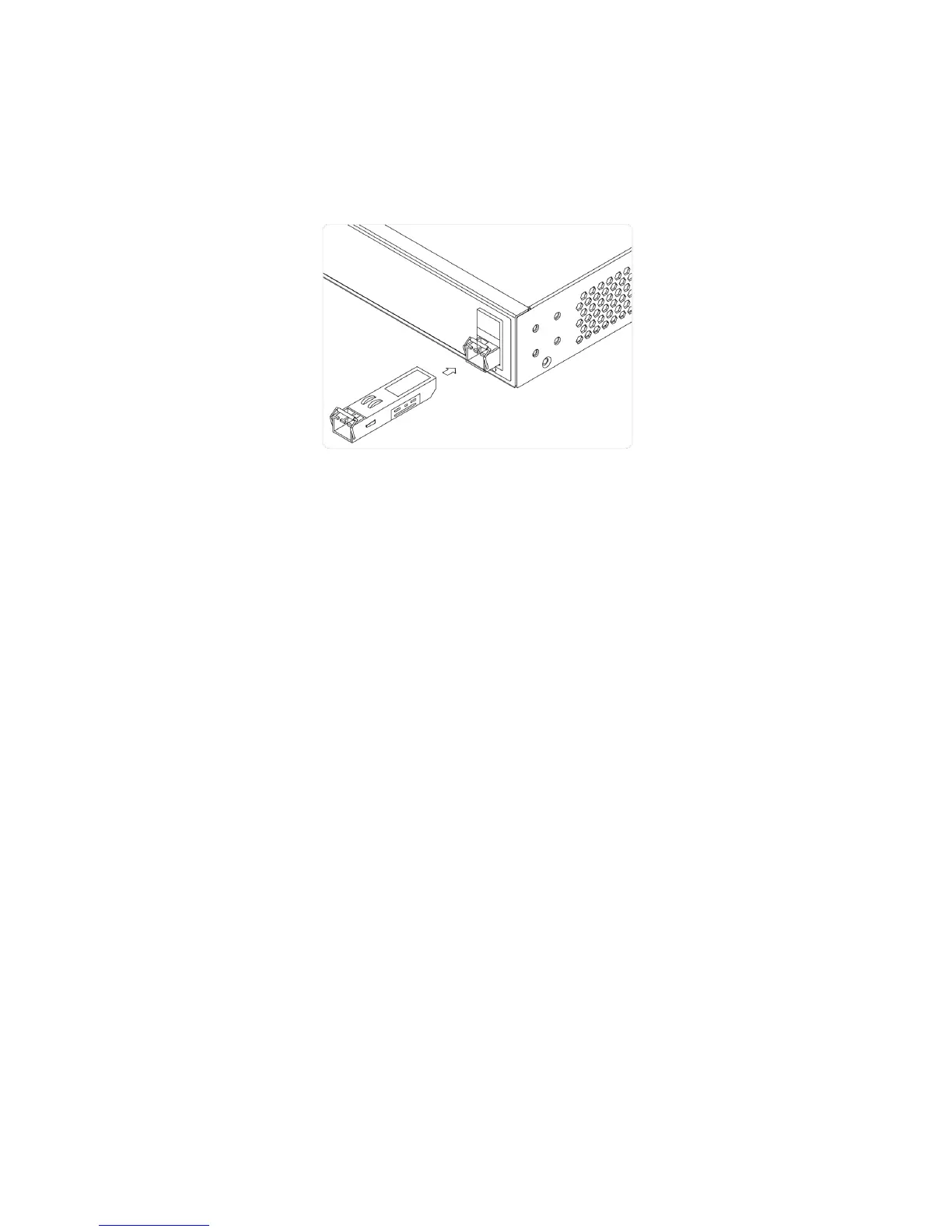

Figure 7: Installing a SFP Module into a SFP Port
WARNING: Infrared radiation as used for data transmission within the fiber optic,
although invisible to the human eye, can nevertheless cause damage.
To avoid damage to the eyes:
 never look straight into the output of fiber optic components – danger of blinding!
 cover all unused optical connections with caps.
 commission the transmission link only after completing all connections.
