Gigabit Ethernet Switch – Quick Installation Guide Page 1 of 9

_______________________________________________________________________________________________

1. Introduction

1.1 Overview

This user guide describes how to install, configure, and troubleshoot the MS453514M, 28

Port managed Gigabit Ethernet (GBE) PoE(+) Switch.

By reading this user guide, users can perform the following tasks:

 To check the switch status by reading the LED behavior

 To reset the switch or to restore the switch to factory defaults

 To install the switch

 To use a Web browser to initially configure the switch

 To troubleshoot the switch

1.2 Front View of the Switch

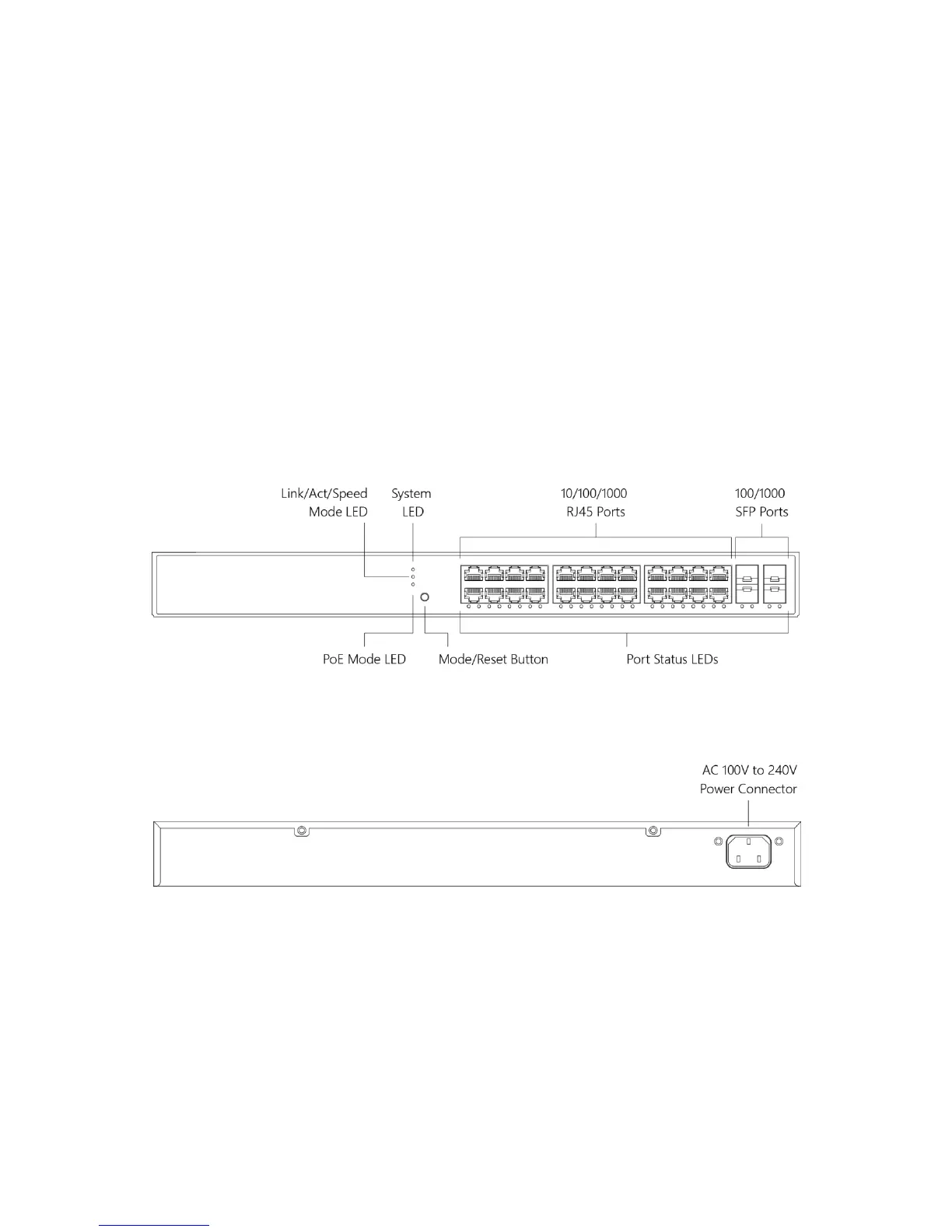

Figure 1: Front panel of the switch

1.3 Rear View of the Switch

Figure 2: Rear panel of the switch

1.4 LED Descriptions

The LEDs on the front panel provide users with switch status checking and monitoring.

There are three types of LEDs as follows:

 System LED indicates if the switch is powered up correctly or not, or, indicates if

there is a system alarm triggered for troubleshooting.

 Mode LED indicates the mode of all ports on the switch. Users can press the mode

button sequentially to switch between the two different modes (link/activity/speed

mode and PoE mode).
