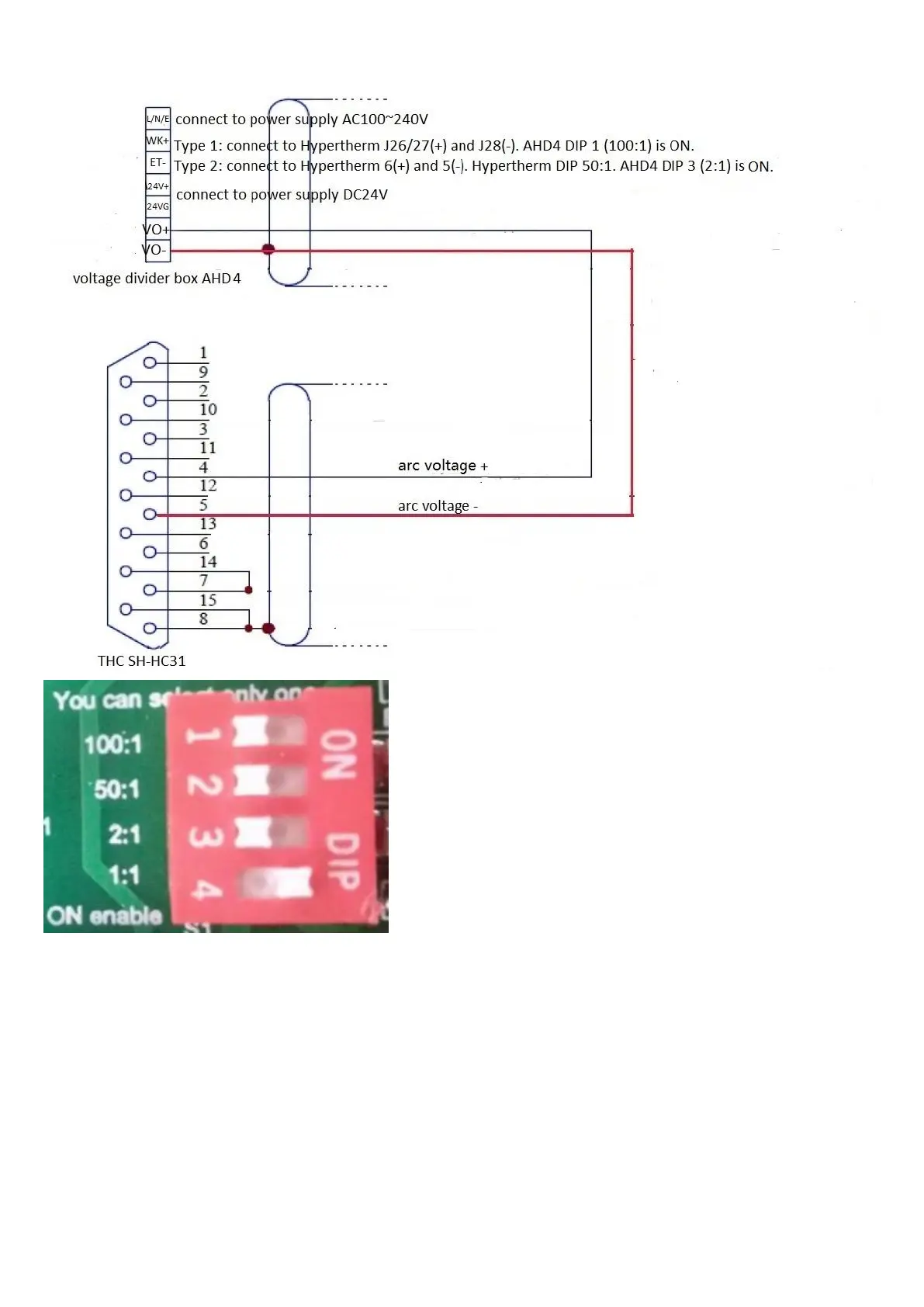

The connection (plasma mode) of SH-HC31 and the voltage divider box AHD4

If the plasma power is raw arc voltage, then connect to WK+ and ET-. And AHD4 only DIP 1

(100:1) is ON.

If the plasma power is 50:1 arc voltage, then connect to WK+ and ET-. And AHD4 only DIP 3

(2:1) is ON.
