11
Plasma/flame
Connect output of CNC cutting controller or external switch, 24V
signal, high level is plasma mode, low level is flame mode.
12
Up
Connect output of CNC cutting controller or external switch, 24V
signal, low level is effective.
13
down
Connect output of CNC cutting controller or external switch, 24V
signal, low level is effective.

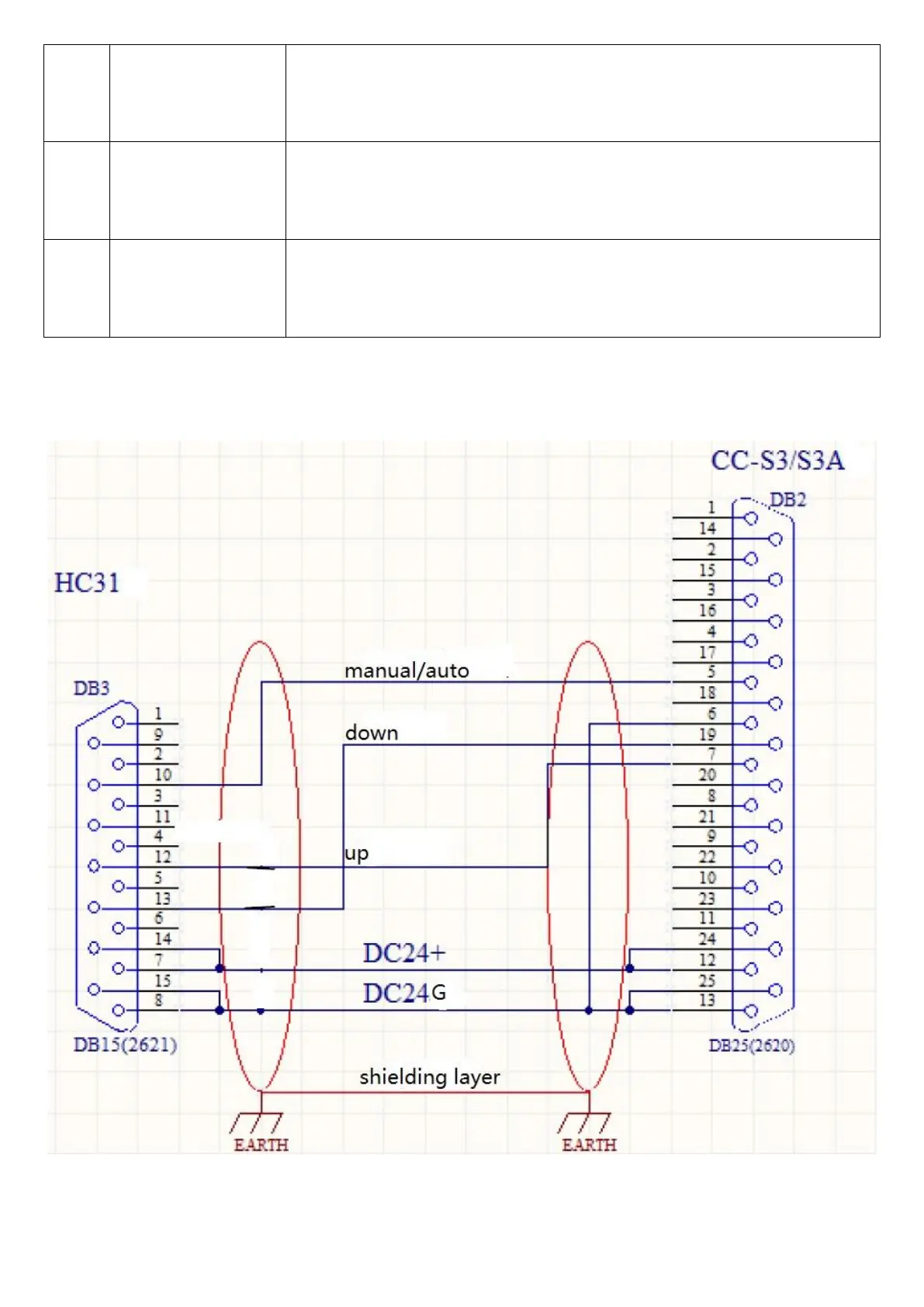

The connection (plasma mode) of SH-HC31 and CNC cutting controller CC-S3/CC-S3A
