An external relay is needed. Its coil connects pin 9 of CNC cutting controller. When change to
plasma mode, pin 9 output is low, and the relay works for following purposes:
1. auto/manual signal, change from flame mode pin 21 to plasma mode pin 5.
2. arc voltage/capacitance switch signal, change to arc voltage mode after breaking DC24VG.
3. plasma arc strike output of CNC cutting controller is connected.
Chapter 2 Quick Start

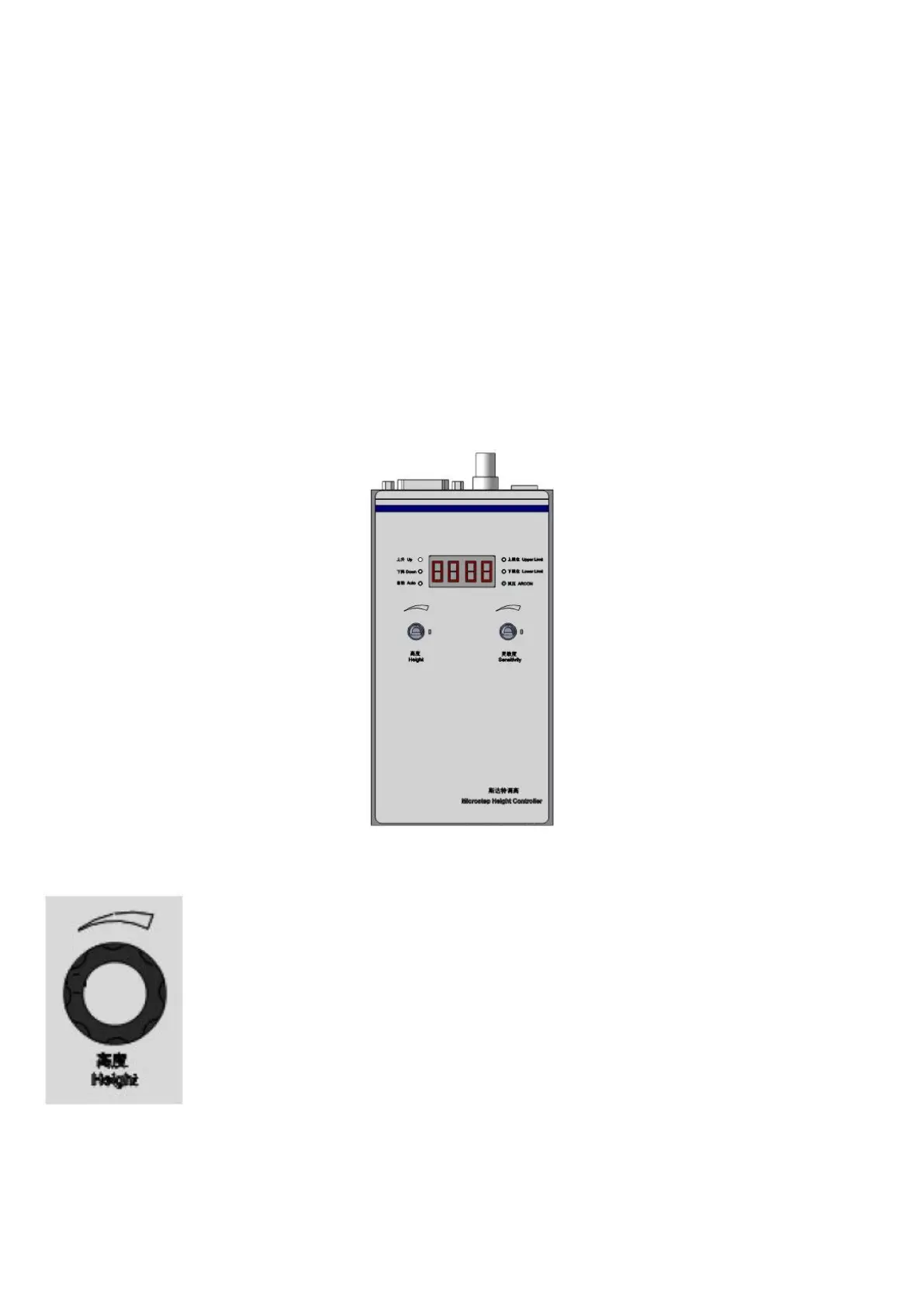

2-1 panel
Instruction
Height knob, adjust and set cutting height.
In the plasma mode and the manual mode, press it to display b value (location height/pierce
height), then set.
To Next Page
