10 Microtek TMA1600 Installing and Getting Started
C. Using the 6 x 9 cm Filmstrip Template
The 6 x 9 cm Filmstrip Template allows you to scan varying sizes of transparencies,
including 6 x 4.5 cm, 6 x 6 cm, 6 x 7 cm, and 6 x 9 cm. The maximum number of film that
can be loaded depends on the size of your film. (e.g., the 6 x 4.5 cm can hold up to 4
pieces of film, the 6 x 9 cm can hold up to 2 pieces of film)

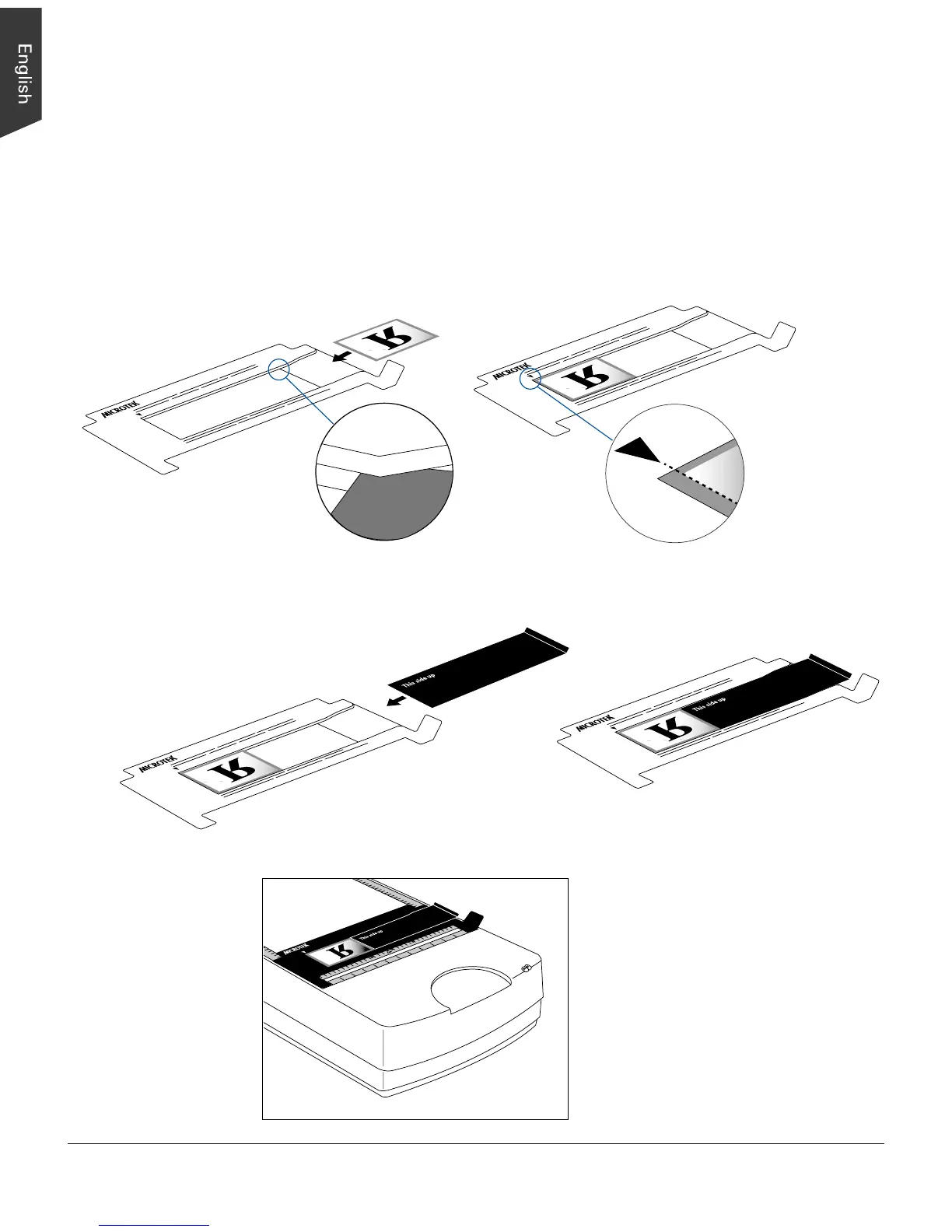

1. Load the film face down inside the template. Slide the film along the slots of the
template until its edge is against the side of the template (indicated by an arrow
mark ).
2. Slide the black plate* until its edge is against the film, thus covering the blank
spaces. The side of the black plate (which reads “This side up”) should face up.
2
1
0
3
4
5
6
6
5
4
3
2
1
3. Place the template assembly on the scanner glass surface.
Align the edge
of the film frame
with the arrow
mark of the
template
To Next Page
