16
3.1.1
Sy
s
te
m
S
elf
-T
est
This function allows the
setting
for whether this machin
e will execute the self
-
test function immedia
tely
upon powering on.
(1)
P
ress [Func]; please use [↑] or [↓] to select system self
-test and the
n pr
ess [Enter].
(2)
T
he system
will
now execu
te the sel
f
-test function.
(3)

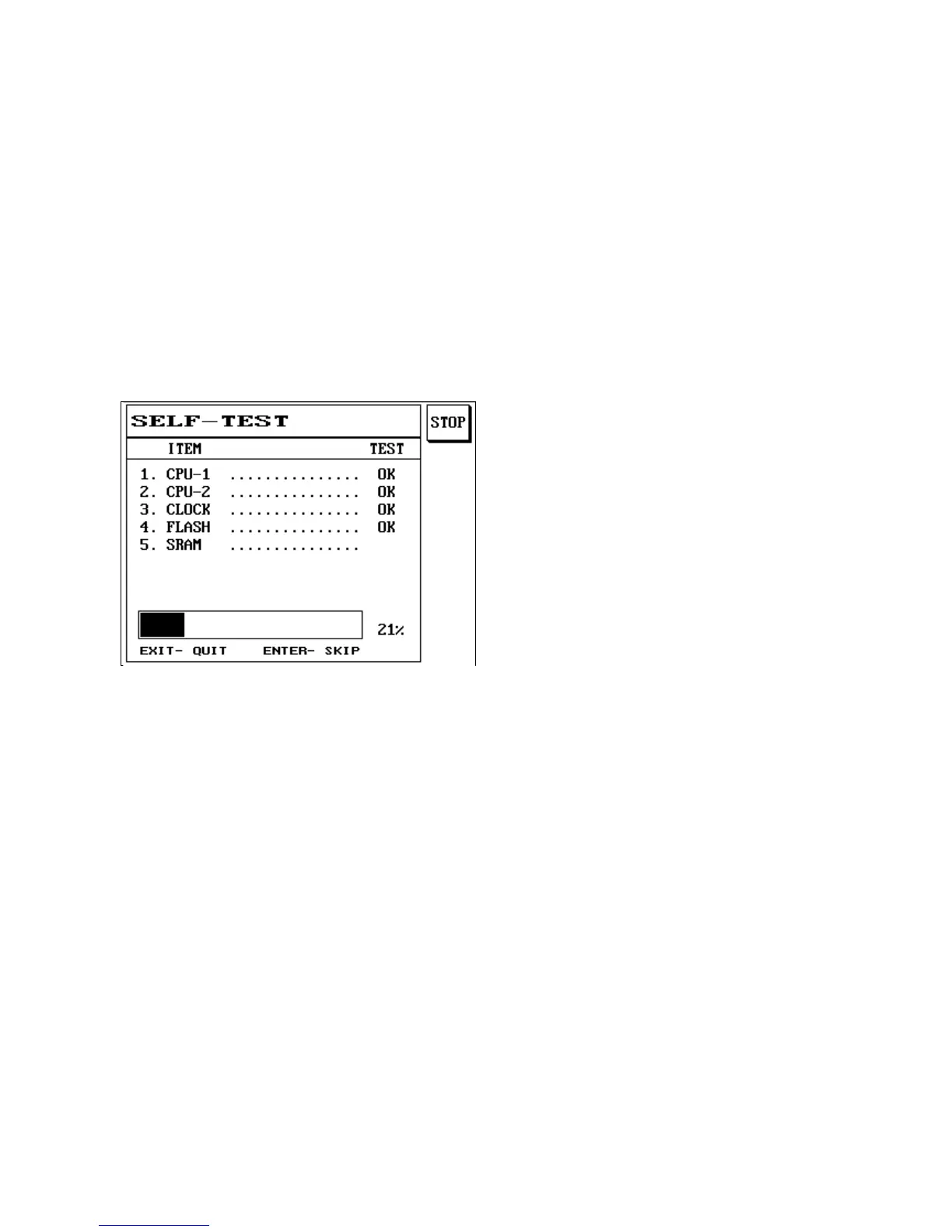

The LCD screen will display
as follows:
(4)
Press [Exit] to exit.
