34
(3)

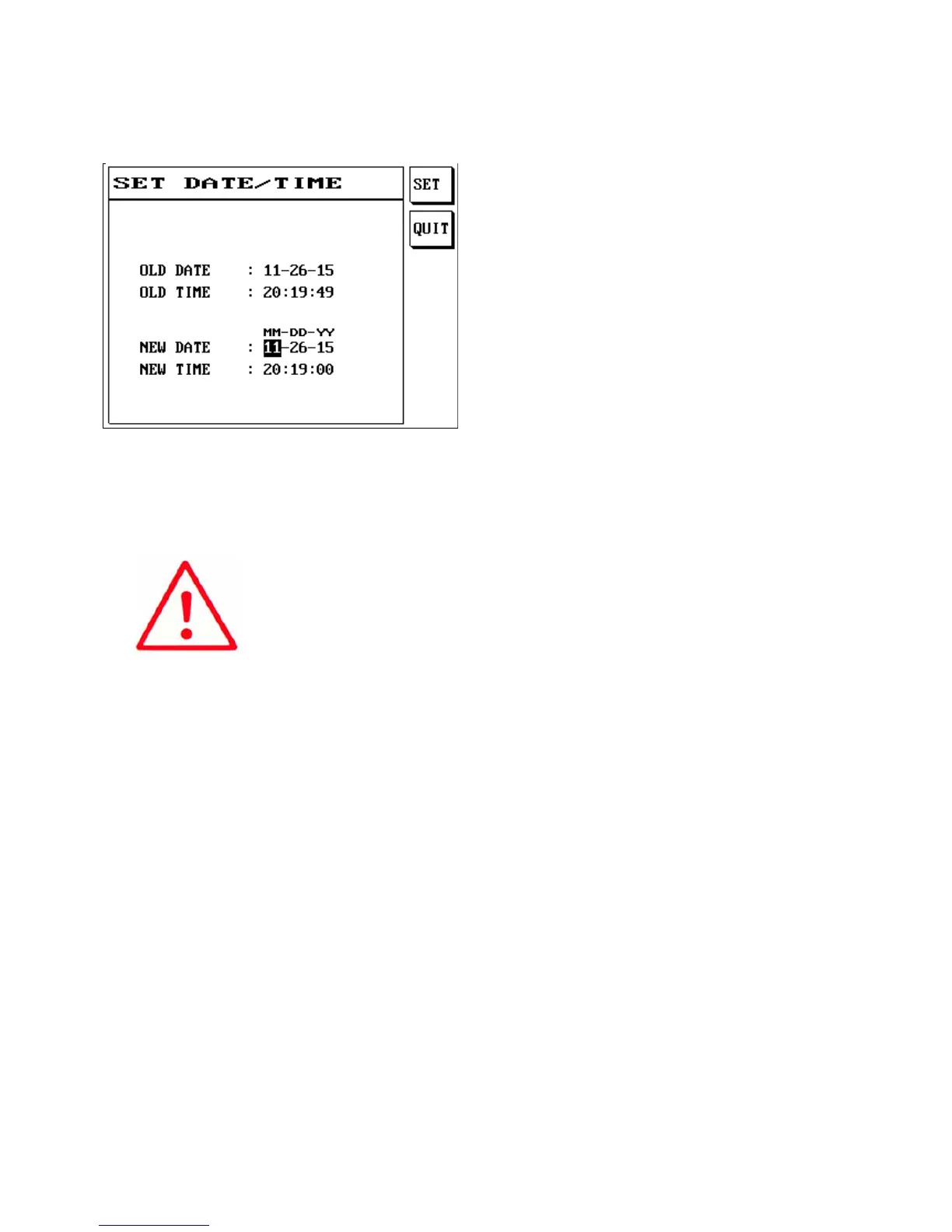

The LCD screen
will display
as follows:
(4)
The time forma
t is MM/DD/YY; please
press S1 [Setting] to save w
hen input is complete
.
(5)
Press [Exit] to exit.
Note:
1.
H
o
u
r
is in 24 h
our
format.
3.2.4 Change
S
yst
em
Password
This tester provides key lock protection in order to prevent data from being modified randomly
.
(1)
P
ress [Sy
s]
.
(2)
P
lease use [↑] or [↓] to select this item and then press [Enter]
.
(3)
The LCD screen will display
as follows:
34
36
Table of Contents
Chapter 1 Cautions
4
Warming-Start
5
Chapter 2 General Summary
6
Operating Basics
7
Front and Rear Panel Displays
8
Rear Panel
10
Block Diagram of Tester Functions
12
Installation
13
Button Usage Instructions
15
Chapter 3 Function Setting and System Setting
16
System Self-Test
17
RAM Configuration Table
18
Pin Search
22
Meter Mode
23
Networking Fixture Setting
27
System Setting (SYS)
28
Setting the Operating Environment
29
Setting the Testing Environment
31
Set System Time
34
Change System Password
35
Print Function Menu
36
File Management (File)
39
Mode Setting (Mode)
40
Multiple Simultaneous Test DUT (Miltidut)
49
Test Item (Item)
51
Test Condition Setting
52
R/C/D Component Setting Edit (Resistance)
55
High Voltage Setting Edit (HV)
59
Comprehensive Test Implementation
63
File Management
64
Step Setting
65
Create New File
71
Upload All
72
File Sorting
73
Import File
75
5
