2.4 Front and Rear Panel Displays

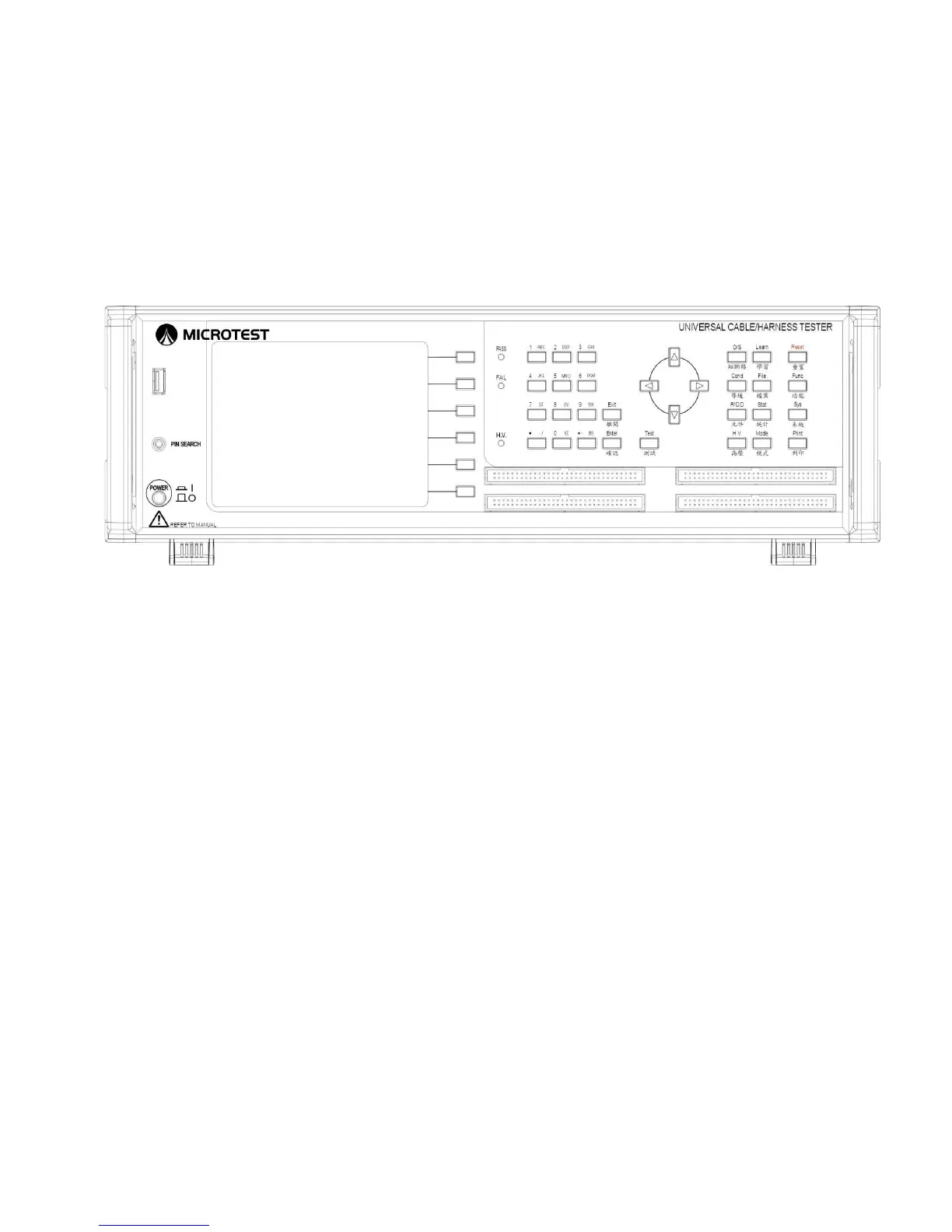

2.4.1 Front Panel
64 and 128 models:
(1) LCD display
(2) S1~S6 operation auxiliary buttons (Soft Key)
(3) PASS & FAIL & HIPOT LED
(4) Control button (Edit Key) group
(5) Test shortcut button group
(6) System reset (Reset) button
(7) Power switch
(8) Pin Search connector
(9) 128Pin has 2 slots and 256 Pin has 4 slots
(10) Test button [TEST]
(11) System button (Sys Key) group
(12) USB flash drive
○
