MID BT Series - Page 10

10

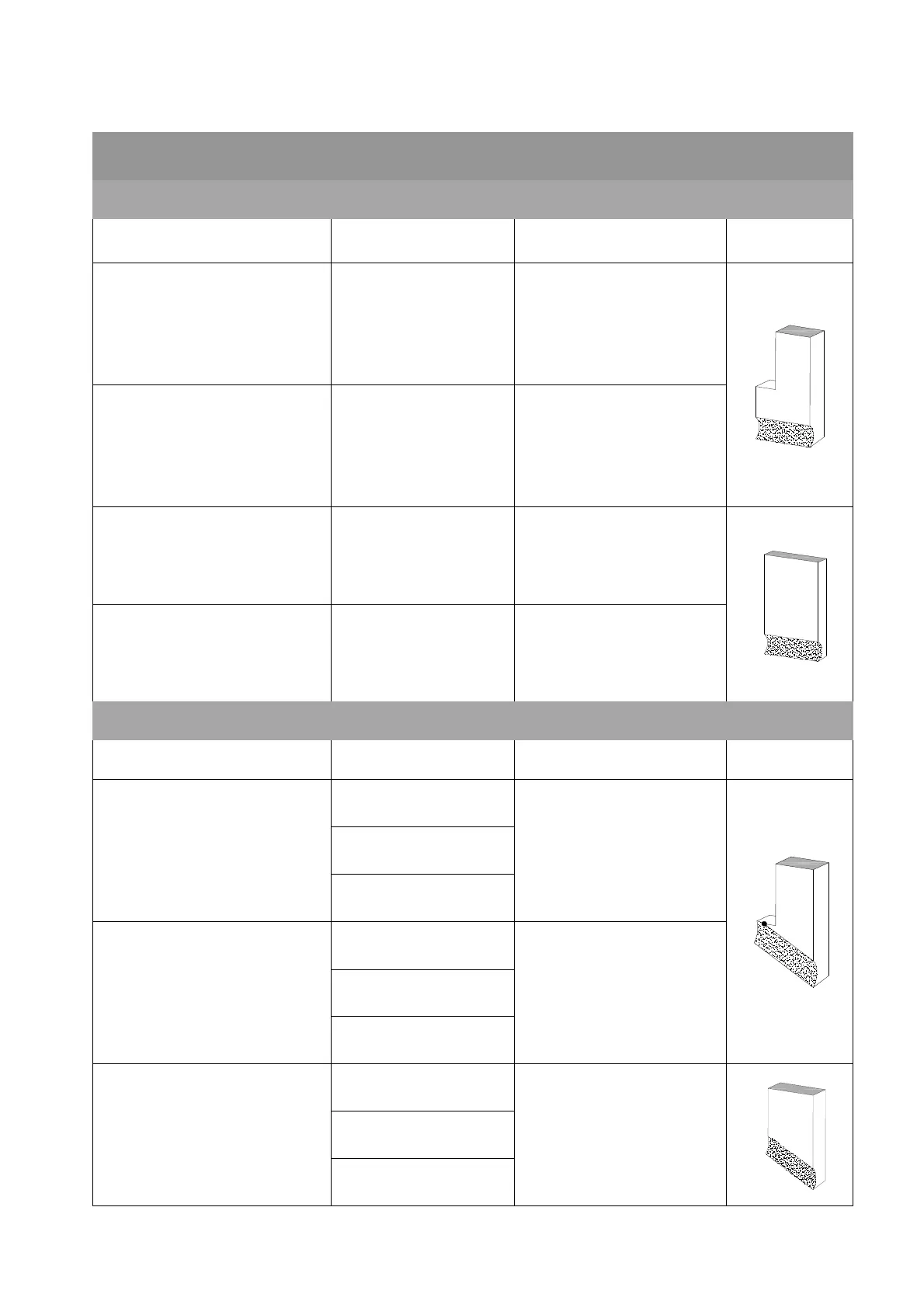

PART 6 DIAGRAM OF BEVELING TOOL BIT
M42 Tooling Chart
Facing tools
Description
Part Number
Application
Sketch
Facing tool
Material:AISI M42
Width:22mm
Thk:6mm
Step type
42F-0622S
BT1
Facing tool
Material:AISI M42
Width:22mm
Thk:8mm
Step type
42F-0822S
BT3, BT6, BT8
Facing tool
Material:AISI M42
Width:22mm
Thk:8mm
42F-0822
BT3, BT6, BT8
Facing tool
Material:AISI M42
Width:25mm
Thk:10mm
42F-1025
BT14
Beveling tools
Description
Part Number
Application
Sketch
Beveling Tool
Material:AISI M42
Width:22mm
Thk:6mm
Step type
42B-0622S-30°
BT1
a is beveling angle required
42B-0622S-37.5°
42B-0622S-a
Beveling Tool
Material:AISI M42
Width:22mm
Thk:8mm
Step type
42B-0822S-30°
BT3, BT6, BT8
a is beveling angle required
42B-0822S-37.5°
42B-0822S-a
Beveling Tool
Material:AISI M42
Width:22mm
Thk:8mm
42B-0822-30°
BT3, BT6, BT8
a is beveling angle required
42B-0822-37.5°
42B-0822-a
