PART 4 INSTALLATION AND OPERATION
SECTION 1
TOOL FEED / BACK INSTRUCTION

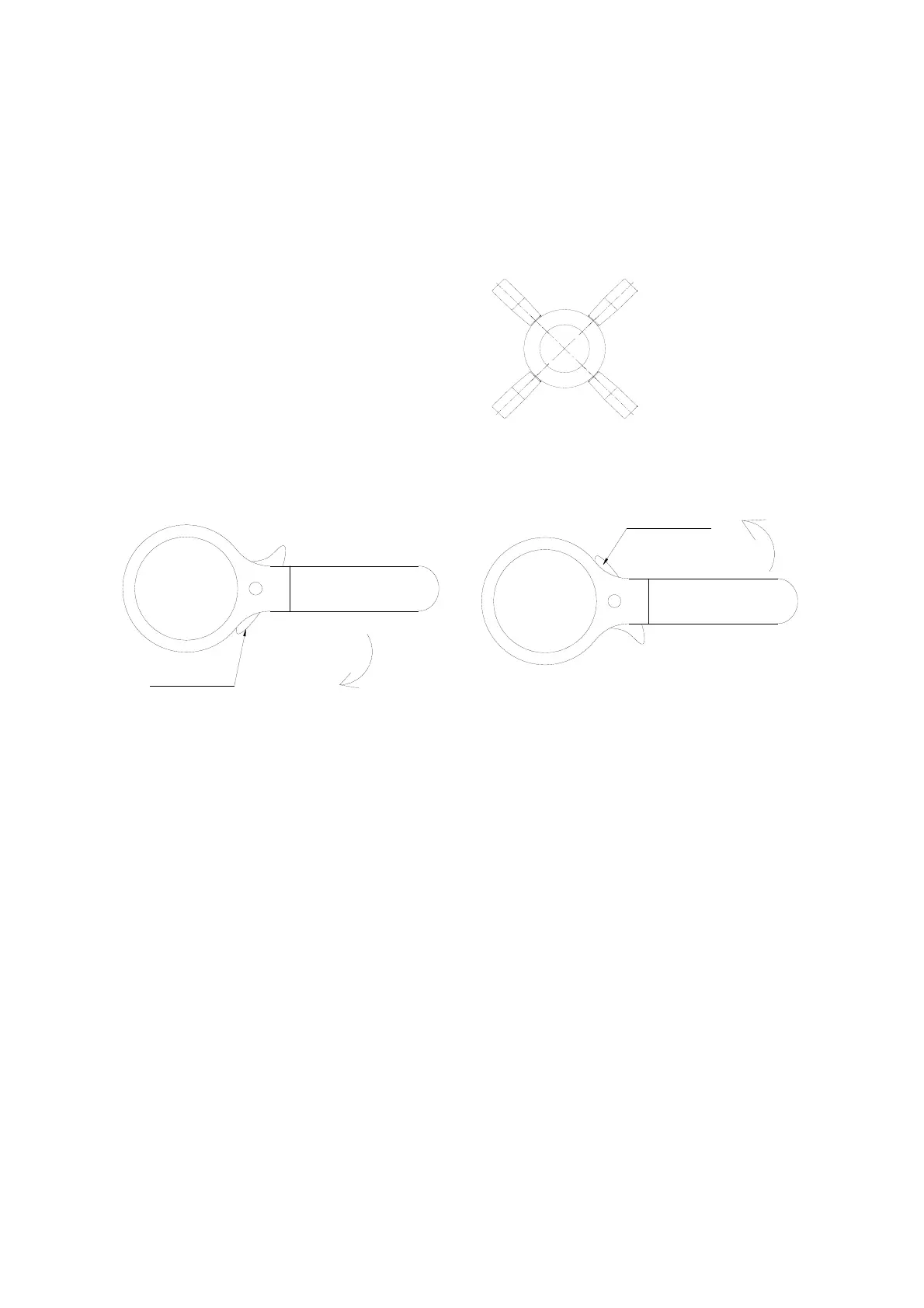

A. BT1/BT3/BT6 tool feed / back hand wheel
See figure:
Tool F eed: r o t a t e clockwise
Tool B ack: r o t a t e counterclockwise
B. BT8/VBT14 adopt tool feed/back ratchet spanner
See below figure:
Tool F eed: P r e s s p a w l c lockw ise, pull s p a n n e r c lockw ise
Tool B ack: P r e s s p a w l counterclockwise, pull spanner counterclockwise
OPERATION PROCEDURE
1. Measure the ID of the pipe, and then choose the proper expanding block according to the diagram
of expanding blocks, (see the figure on the expanding blocks), choose proper block, fix them on
the wedge block, and tighten.
2. Install the proper tool bit on the cutter. Make sure the tool bit is clockwise.
Caution: The tool bit can not touch the spindles; otherwise may damage the machine
3. Back the travel of tool bit by tool feed using hand wheel (tool feed/back ratchet spanner). Insert
the expandable mandrel into the pipe, fasten the expansion nut lightly, shake the machine (in
order to center, and make the expanding block properly contact the ID pipe), the machine will be
centered, Then fasten the expansion nut tightly, make sure the equipment and the pipe are fixed
solid.
Caution: The expandable mandrel should not be inserted too deep, it’s better to keep a 2-3mm
