20

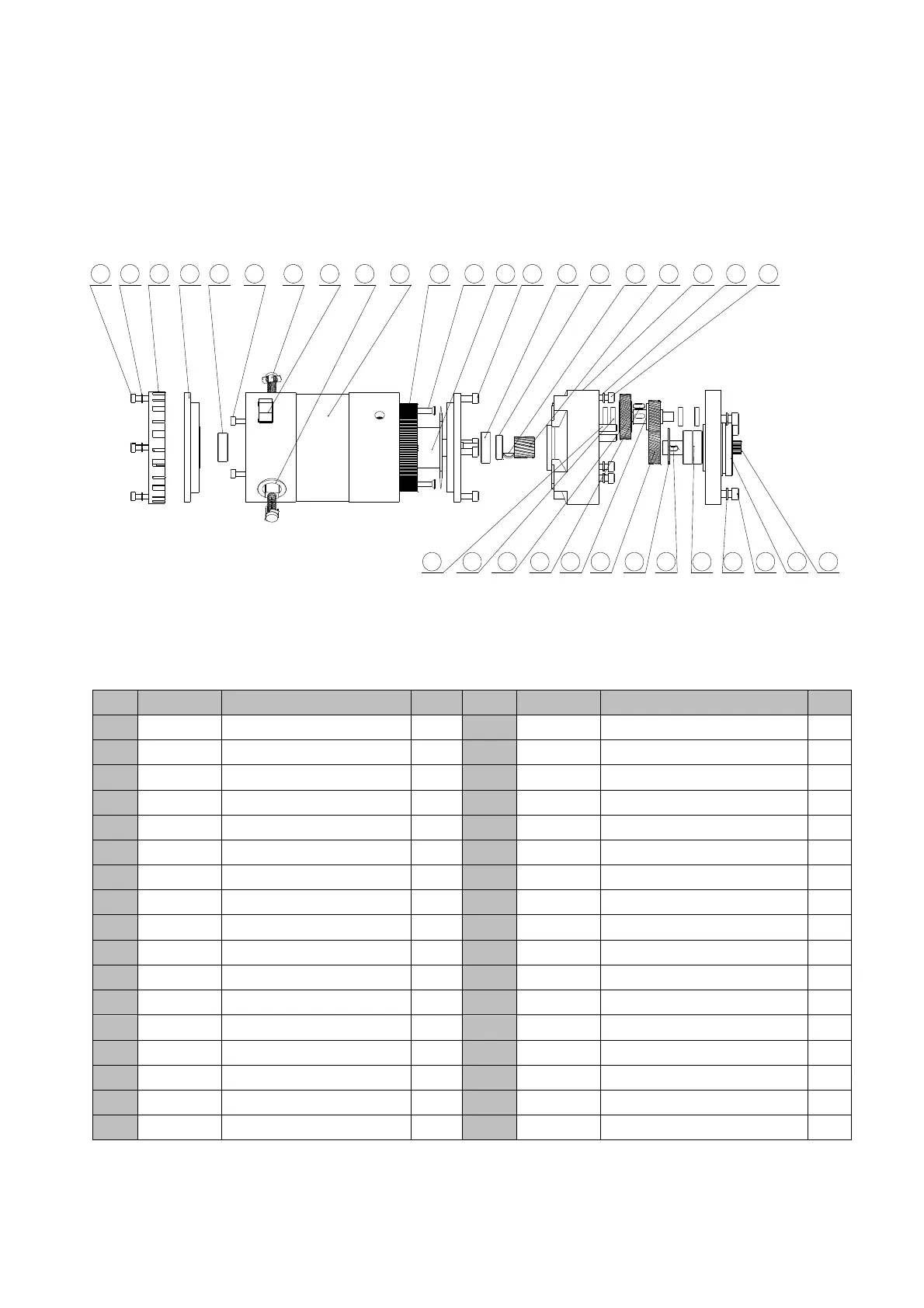

Electric Motor Adaptor

BT8

Assembly Part No.: ED10

No."

Part"No.:"

Description"

Qty"

No."

Part"No.:"

Description"

Qty"

1"

ED1001"

Screw"M4X25"

4"

18"

ED1018"

Rotor"shaft"gear"

1"

2"

ED1002"

spring"washer4"

4"

19"

ED1019"

Reducer"

1"

3"

ED1003"

ventilation"cover"

1"

20"

ED1020"

spring"washer5"

3"

4"

ED1004"

Motor"cover"

1"

21"

ED1021"

Screw"M5X30"

3"

5"

ED1005"

Bearing"628"

1"

22"

ED1022"

Locating"pin"

2"

6"

ED1006"

Screw"M4X10"

2"

23"

ED1023"

Bearing618-8"

4"

7"

ED1007"

Carbon"brush"

2"

24"

ED1024"

Motor"input"helical"gear"

1"

8"

ED1008"

Motor"switch"

1"

25"

ED1025"

Key4x10"

1"

9"

ED1009"

Carbon"brush"holder"

2"

26"

ED1026"

Motor"output"helical"shaft"

1"

10"

ED1010"

Electromotor"shell" "

1"

27"

ED1027"

Motor"output"helical"gear"

1"

11"

ED1011"

Stator"

1"

28"

ED1028"

Hole"with"ring28"

1"

12"

ED1012"

Screw"M4X40"

2"

29"

ED1029"

Key4x8"

1"

13"

ED1013"

Rotor"

1"

30"

ED1030"

Bearing6001"

2"

14"

ED1014"

Screw"M5X16"

4"

31"

ED1031"

spring"washer6"

3"

15"

ED1015"

Bearing629"

1"

32"

ED1032"

Screw"M6X20"

3"

16"

ED1016"

BearingL-2090KKMTR"

1"

33"

ED1033"

Bearing"block"

1"

17"

ED1017"

Woodruff"key"

1"

34"

ED1034"

Motor"output"shaft"

1"

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

22 23 24 25 26

27

28 29 30 31 32 33 34
