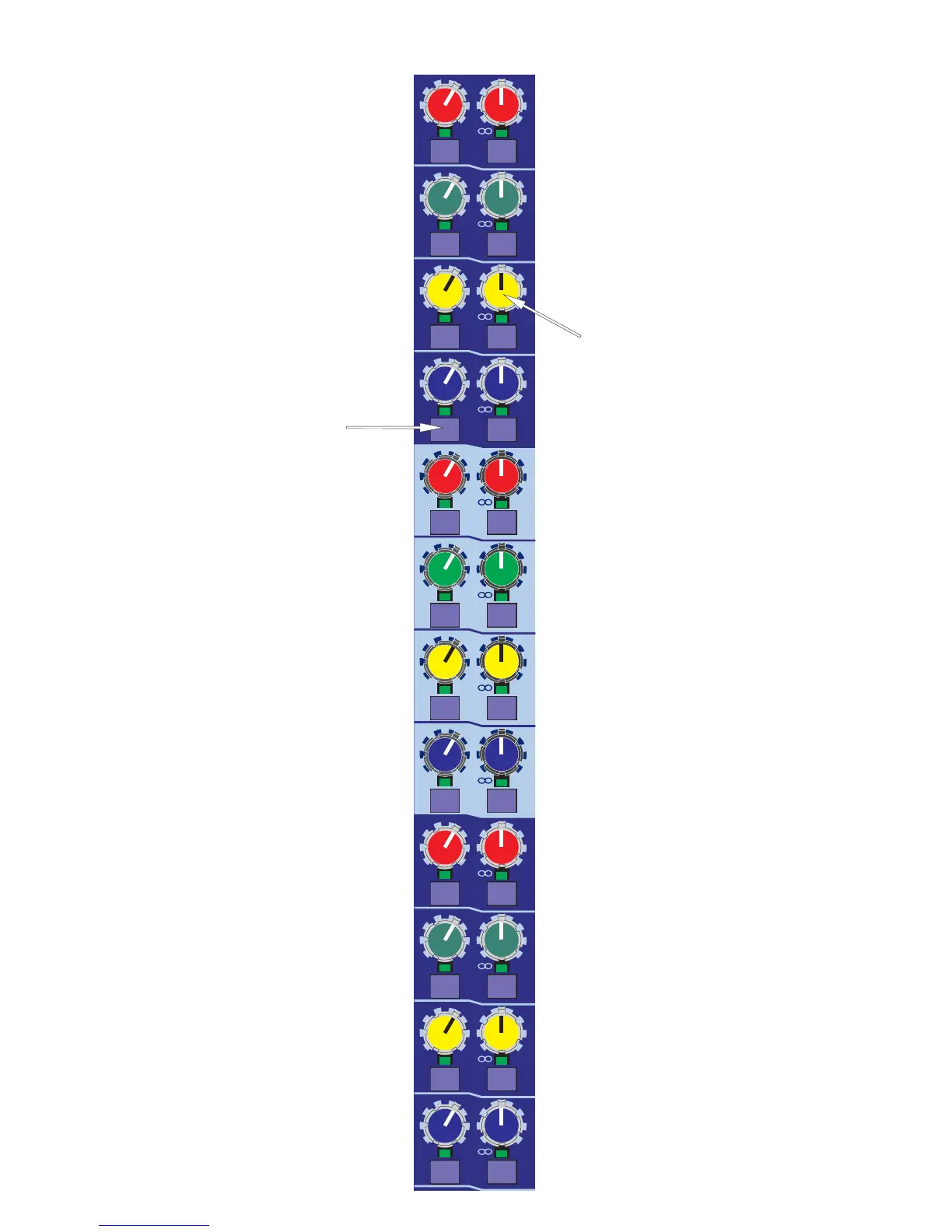

The configurable group MIX controls
(1 to 24) have two functions:-
i. They operate as bus assign ON/OFF
switches by way of a non latching
push/push action with LED status
indication.
ii. They adjust the levels sent from the
input channel to the group busses when
in one of the AUX bus modes.
The group mix busses can be configured
in three modes:- MONO AUX,
STEREO AUX or POST PAN GROUP.
This is controlled on a bus by bus basis
by the global BUS MODE switches on
the GROUP modules. When configured
as mono auxes the left and right controls
give independent level adjustments from
+ 6dB to off. When configured as stereo
auxes the left controls perform a pan
function with a constant power (- 3dB)
law while the right controls give
continuous level adjustment from + 6dB
to off. When configured as stereo groups
the level control functions are disabled
such that any assigned busses are sent at
unity gain from the channel post fader,
post pan signals.
The aux PRE switches only operate
when in one of the AUX bus modes;
they change the signals sent to the group
busses from post fader to pre fader.
When configured as stereo auxes only the
right switches are active.
