Midas HERITAGE 3000 User Manual

HERITAGE 3000
MONITOR MODULE

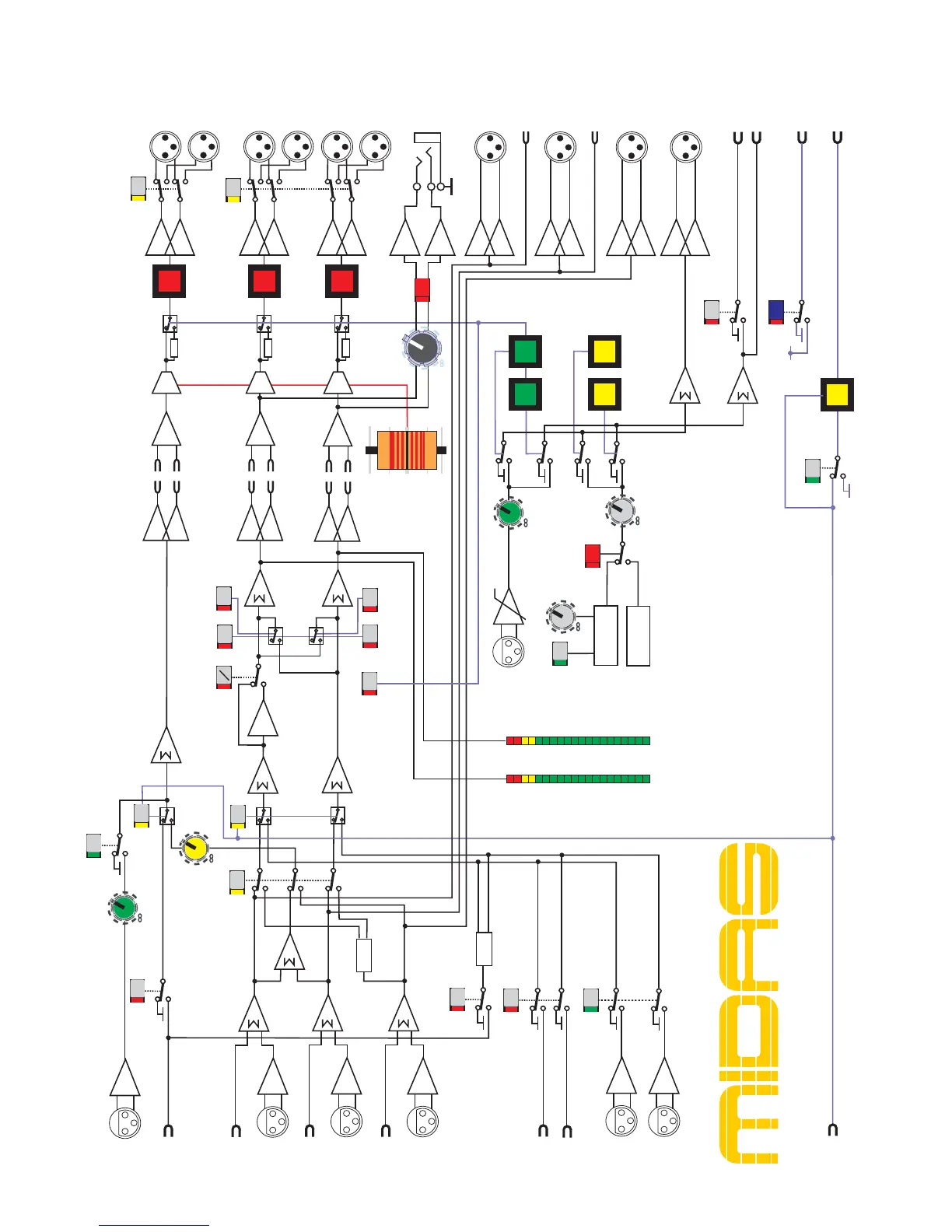

BLOCK DIAGRAM
ISSUE A
DATE28-4-98
-
PHASE
REVERSE
L/R REVERSE
RTOBOTH
LTOBOTH
MONO
SOLO CLEAR
TALK
EXTERNAL
O/P
TALK ALL
TALK
SELECTED
+V
GLOBAL
METERING
PRE
+
+
-
-
SOLO BUS
O/P LEFT
+
-
SOLO BUS
O/P RIGHT
+
-
PFL BUS
O/P
+
+
-
-
SOLO O/P
RIGHT ‘A'
SOLO O/P
LEFT ‘A'
SOLO O/P
RIGHT 'B'
SOLO O/P
LEFT 'B'
A/B
SPEAKERS
HEADPHONES
COMMS
LEVEL
EXTERNAL
INPUT
LEFT
SOLO
LOGIC
MASTER
BUS LEFT
MASTER
BUS RIGHT
EXTERNAL
INPUT
RIGHT
SOLO TO
MASTERS
LEFT
SOLO TO
MASTERS
RIGHT
MUTE
MUTE
TALK
EXTERNAL
+
_
SOLO
BUS LEFT
SOLO
BUS RIGHT
PFL BUS
SOLO
INJECT LEFT
PFL INJECT
SOLO
INJECT RIGHT
MONO
SUM
+
_
+
_
+
_
-3dB
-3dB
INSERT POINT
RETURN
SEND
+
-
+
_
INSERT POINT
RETURN
SEND
+
-
+
_
+
-
MONO O/P
LEFT ‘A'
MONO O/P
LEFT 'B'
A/B
SPEAKERS
MUTE
INSERT POINT
RETURN
SEND
+
-
+
_
+21+
+18+
+15+
+12+
+9+
+6+
+3+
0
-3-
-6-
-9-
-12-
-15-
-18-
-21-
-24-
-27-
-30-
-33-
-36-
add mode
phones
SOLO
PRE
input
to mono
to stereo
pre fade
(pfl)
TALK
meter
change
over
10
10
5
5
0
10
10
5
5
0
solo clear
TALK
SOLO
ST
ON
R
L
MONO
O
C/O
C/O
EXT
masters
MONO
MONO
VCA VCA
VCA
+10
+10
0
+10
MUTE
SOLO
OSCILLATOR
PINK NOISE
TALK
MIC
1kHz
PINK
talk
external
signal
generator
talk
mic
generator
internal
generator
external
talk
internal
PAD
-20dB
(HALF NORMALISED)
(HALF NORMALISED)
(HALF NORMALISED)
MONITOR
FADER
0
+10
level
0
+10
level
0
+10
level
0
+10
level
0
+10
level
SOLO
57
