Midas HERITAGE 3000 User Manual

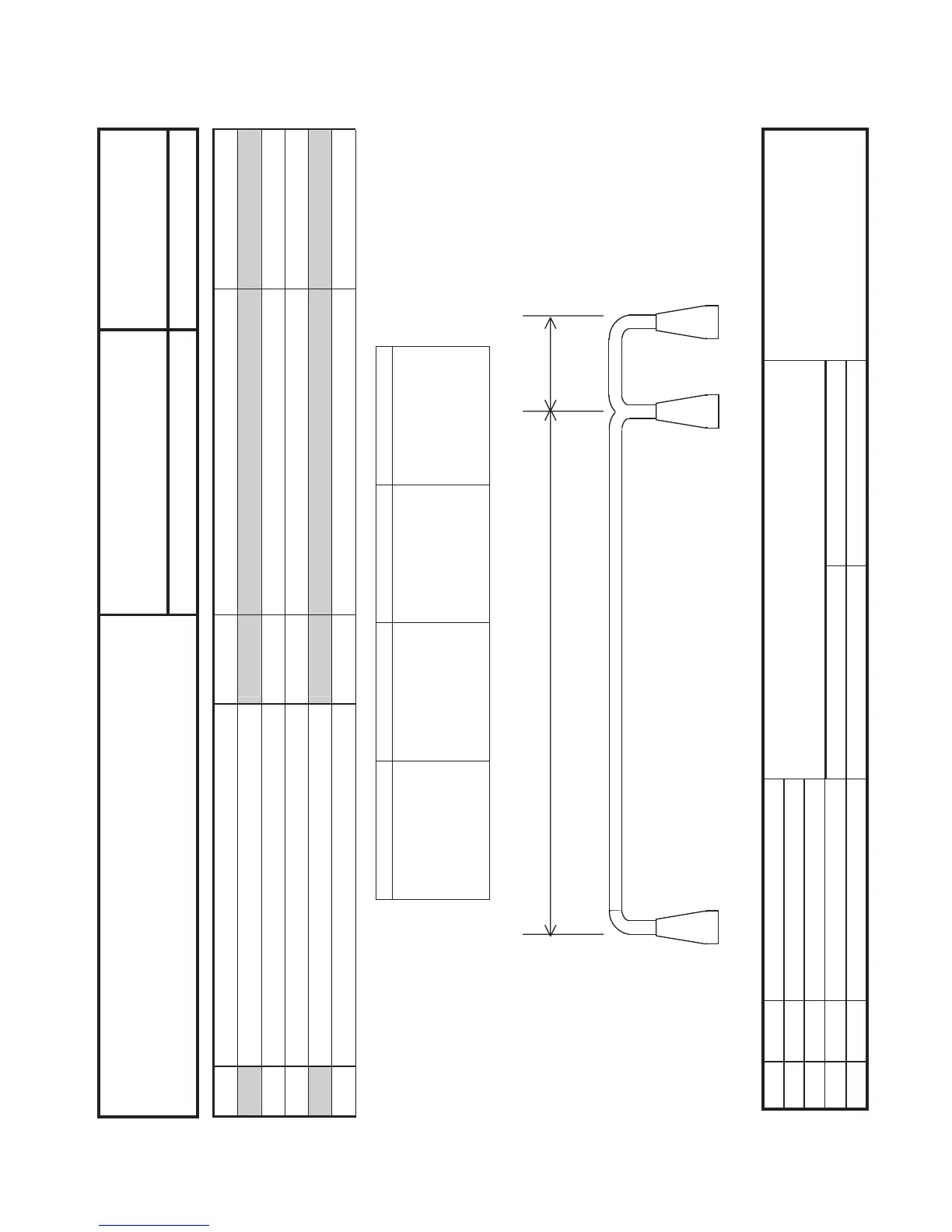

Cable Specification
CAN CABLE
HS-CAN-8-01
Page 1of 1.
H1000 / H2000 / H3000
ACBLX-1606-1
Issue Date
Notes/ECN
Drawn: Alison Ashmore
Drawing Number
1
01-12-99
Released to Production Checked:
2
Approved:
AS1606-1
3
From: N/A To: N/A
4
Connector (n/a ) Connector (n/a)
Item Description Qty Manufacturers’ Reference KT Part No.
Connectors
1. 5 Pin XLR NC5MXB X-Series 2 Neutrik: NC5MXB CON31-5MXB 2. 5 Pin XLR NC5FXB X-Series 1 Neutrik: NC5FXB CON31-5FXB
Cable
3. Cardinal 48400 ‘Starquad’ 4 Core Cable 8m Farnell: 152-133
Connector Pins Signal Cable Core Cable Colour
Pin 1 NA No Connection NA
PIN2 CAN_L CABLE CORE 1 BLUE PIN3 0V CAN CABLE CORE 3 GREEN PIN4 CAN_H CA
BLE CORE 2 RED
Pin5 NA No Connection NA
CASE CHASSIS Braid Screen TIN
No Connection NA Cable Core 4 White
7.8m
0.2m
Male XLR Male XLR
Female XLR
Midas Can Bus Cable
48
