Midas HERITAGE 3000 User Manual

+21+
+18+
+15+
+12+
+9+
+6+
+3+
0
-3-
-6-
-9-
-12-
-15-
-18-
-21-
-24-
-27-
-30-
-33-
-36-
50
1k
freq
5k
level
0
1kHz
PINK
TALK
to all
internal
generator
internal
generator
external
signal
generator
+10
300

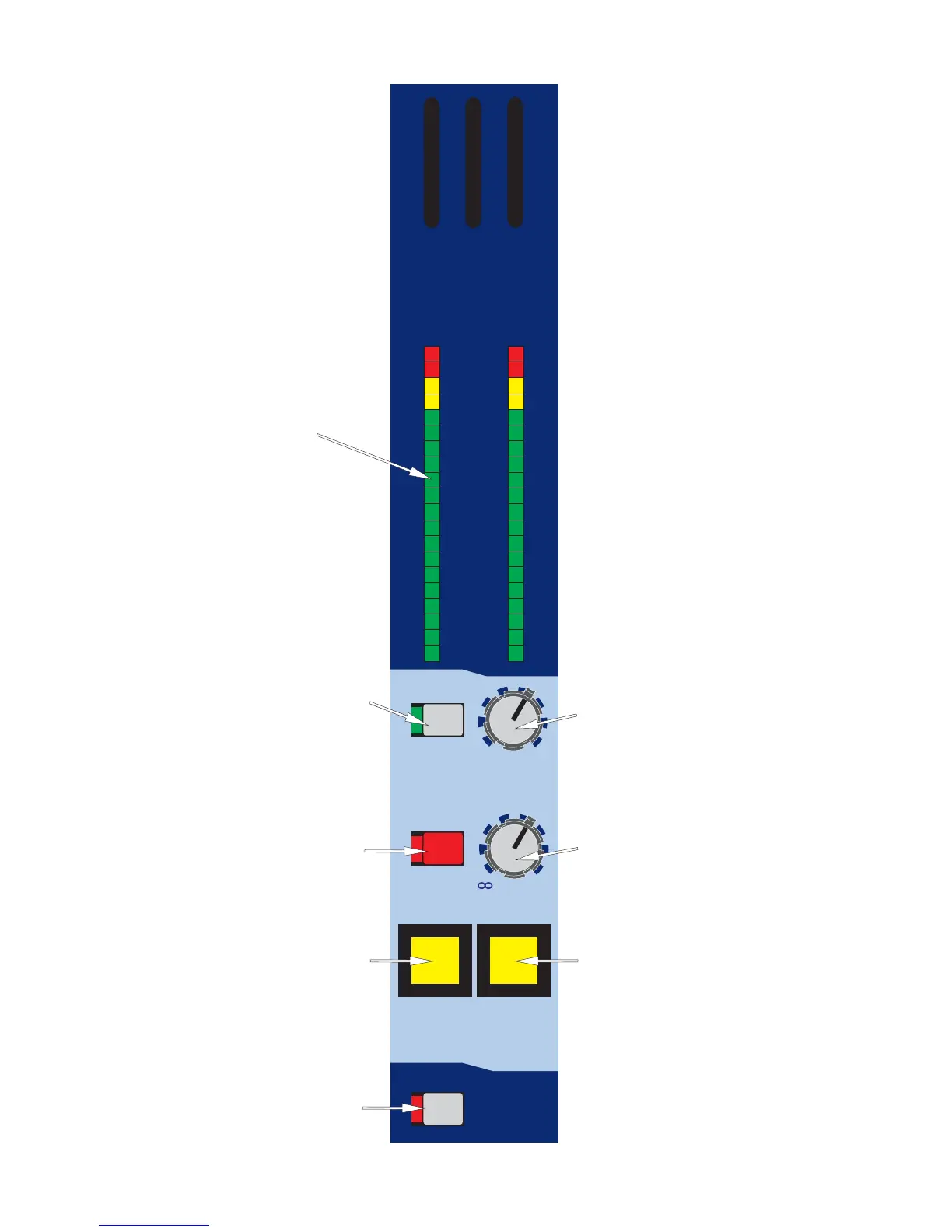

The METERS monitor the peak signal
levels of the stereo left and right monitor
paths.
The FREQ. control gives continuous
adjustment of the oscillator frequency
from 50Hz to 5k.
The 1kHz switch overrides the swept
frequency control giving a fixed 1k tone.
The PINK switch overrides the oscillator
by giving a pink noise output.
The generator LEVEL control gives
continuous adjustment of the signal
generator peak output signals from
+10dBu to off.
The GENERATOR TO INTERNAL
switch connects the signal generator
output to the console's internal talk all
and talk select busses.
The GENERATOR TO EXTERNAL
switch connects the signal generator
output to the talk external output XLR.
The TALK TO ALL switch overrides
all output talk switches so that the
generator or talk mic can be routed to
ALL OUPUTS
