Midas HERITAGE 3000 - CONNECTOR TYPES AND DESCRIPTIONS; AUDIO AND DATA CONNECTORS; SPECIALIZED BUS CONNECTORS

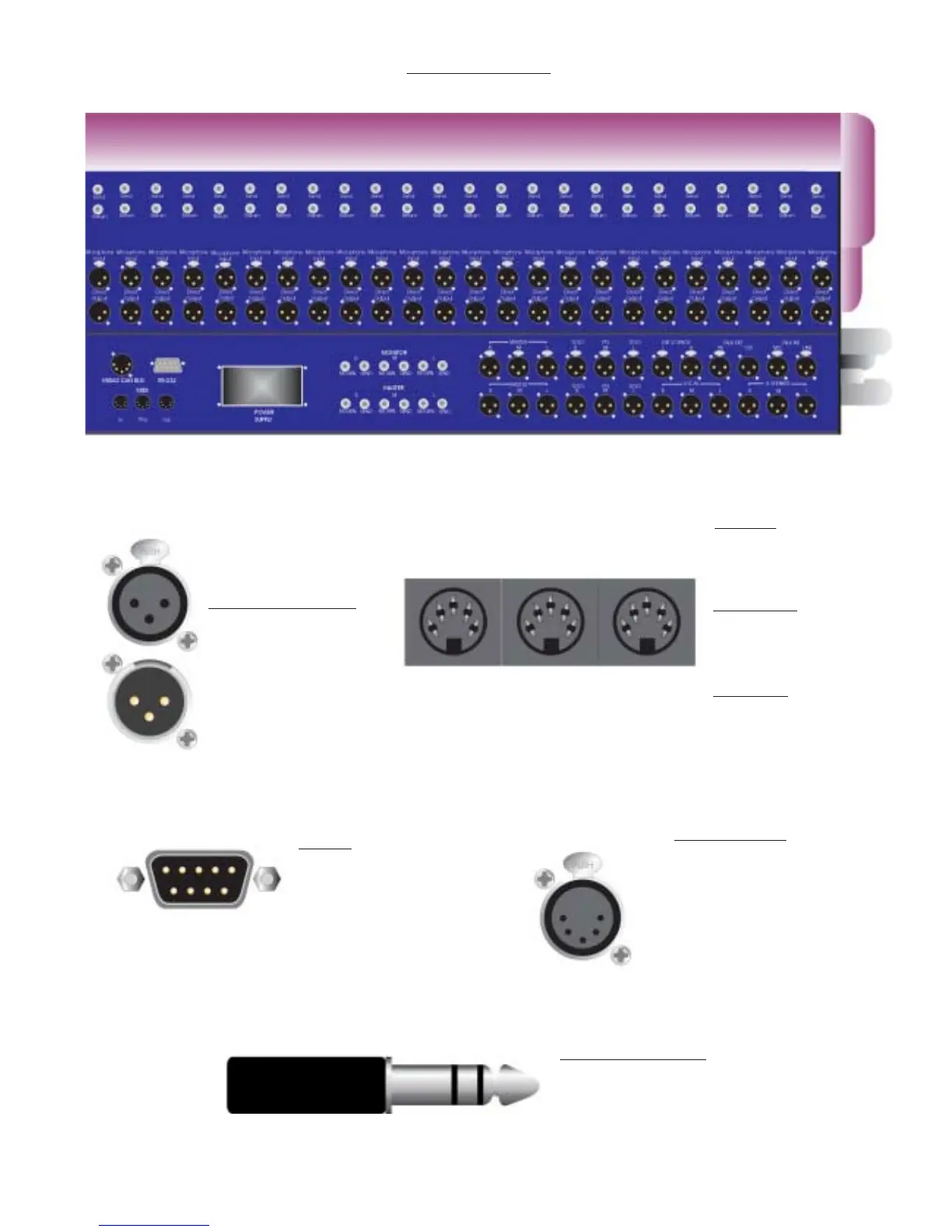

CONNECTORS
MIDI Out
Pin 2: Ground
Pin 4: In+
Pin 5: In-
MIDI Thru
Pin 2: Ground
Pin 4: In+
Pin 5: In-
MIDI In
Pin 2: Ground
Pin 4: In+
Pin 5: In-
R
Input / Output XLR
Pin 1: Ground
Pin 2: Hot
Pin 3: Cold
RS-232
RS-232
Pin 2: Receive Data
Pin 3: Transmit Data
Pin 5: GND
Input Send / Return
Tip: Hot
Ring: Cold
Sleeve: Ground
Midas Can Bus
Pin 1: +18V (100mA max)
Pin 2: Can low
Pin 3: OV Can
Pin 4: Can High
Pin 5: -18V(100mA max)
BUS
IN
OUT
IN
OUT
THRU
MIDI
CAN
BUSS
