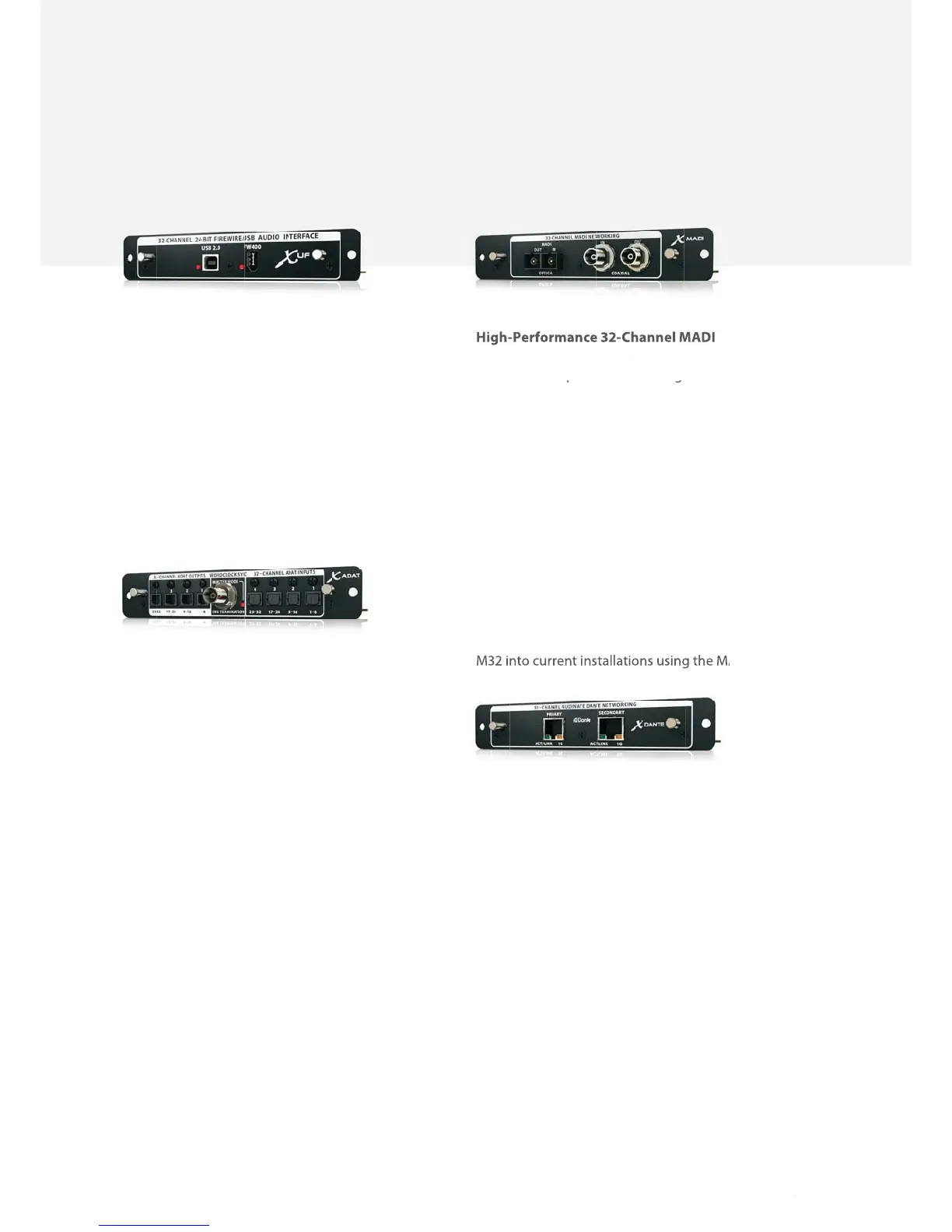

High-Performance 32-Channel MADI
Expansion Card for M32
The X-MADI Expansion Card brings even more I/O
options to the M32 by instantly enabling it for MADI
networking. The MADI or AES10 protocol is quickly
becoming an industry standard in many broadcast
applications. X-MADI provides optical duplex SC-plugs
(IEC874-19) to connect with  bre optic MADI devices,
with multimode  bre optic cable lengths of up to 2 km
supported. Dual BNC terminals are also provided for
transmission via standard 75-Ohm coaxial cable of up
to 100 m length. The BNC and  bre optic connectivity
can also be used simultaneously, creating a reliable
redundancy network with  bre optic installations.
X-MADI card is the perfect solution for integrating the
M32 into current installations using the MADI protocol.
High-Performance 32-Channel Audinate Dante
Expansion Card for M32
By installing the X-DANTE card in place of the X-USB
card, your M32 will interface with Dante networks using
virtually any 100Mbit/s or Gigabit Network infrastructure
with DSCP-based QoS – providing dependable multi-
channel audio that coexist with other IP-based data
tra c on the same network. The X-DANTE card utilizes
24-bit signal transmission with sample-accurate
synchronisation and low latency, ensuring the highest
audio integrity. And a secondary input allows you to set
up a seamless, redundant network. Full remote control of
the M32 is possible using the integrated Ethernet switch.
When the X-DANTE card is connected to a computer,
Audinate’s Dante Controller application gives you full
control over con guration and signal routing among
your Dante-enabled devices.
X-DANTE
Expansion Card
f
or M3
2
The X
-
MADI Expansion Card brings even m
High-Performance 32-Channel ADAT
Expansion Card for M32
The X-ADAT Expansion Card allows you to digitally
integrate your M32 with any equipment featuring
ADAT I/O. This includes stand-alone recorders,
digital audio workstations, and other digital mixers
and signal processing gear. The X-ADAT card
provides 32-channels of ADAT inputs and outputs
on its 8  bre optic Toslink* connectors. The card
features 24-bit signal transmission and operates
at both 44.1 and 48 kHz sample rates, maintaining
your signal integrity. The X-ADAT card also has a
BNC word-clock in/out capability allowing it to sync
with an external clock, or provide the clock signal
for other devices. External clock synchronization is
possible through the BNC connection, as well as any
of the 4 Toslink ports.
X-ADAT
Hi-Speed FireWire/USB 2.0 Audio Interface for
Professional Recordings
The X-UF Expansion Card ensures a stable and fast
solution for professional live and studio recordings.
It provides 400 Mbit/second throughput to
transfer your high-track count session to popular
Software DAWs on Mac and PC via FireWire or
USB 2.0. Additionally, the X-UF turns your M32 into a
sophisticated control surface, and includes remote
HUI* and Mackie Control* emulation.
X-UF X-MADI
Expansion & Networking

Midas M32 Specifications

General

Channels	40
Outputs	16 x XLR
Faders	25
Sample Rate	48 khz
Type	Digital
Talkback	1 x XLR
A/D Resolution	24-bit
Dynamic Processing	Yes
Control Surface	Yes
Effects	8 stereo effects processors
EQ	4-band
Display	7" TFT
Connectivity	Ethernet, USB
Inputs - Other	6 x Aux
Outputs - Main	2 x XLR
Outputs - Other	6 Aux, 2 FX
Data I/O	Ethernet, AES50
USB	1 x Type B
Computer Connectivity	USB, Ethernet
I/O Expansion Slots	1 x Expansion Slot
MIDI I/O	In/Out
Word Clock	In/Out
Depth	490 mm
Weight	15 kg
USB Audio Interface	32-in/32-out
Network Audio	AES50
Dimensions	760 x 168 x 490 mm
Inputs	32 x XLR/TRS combo
