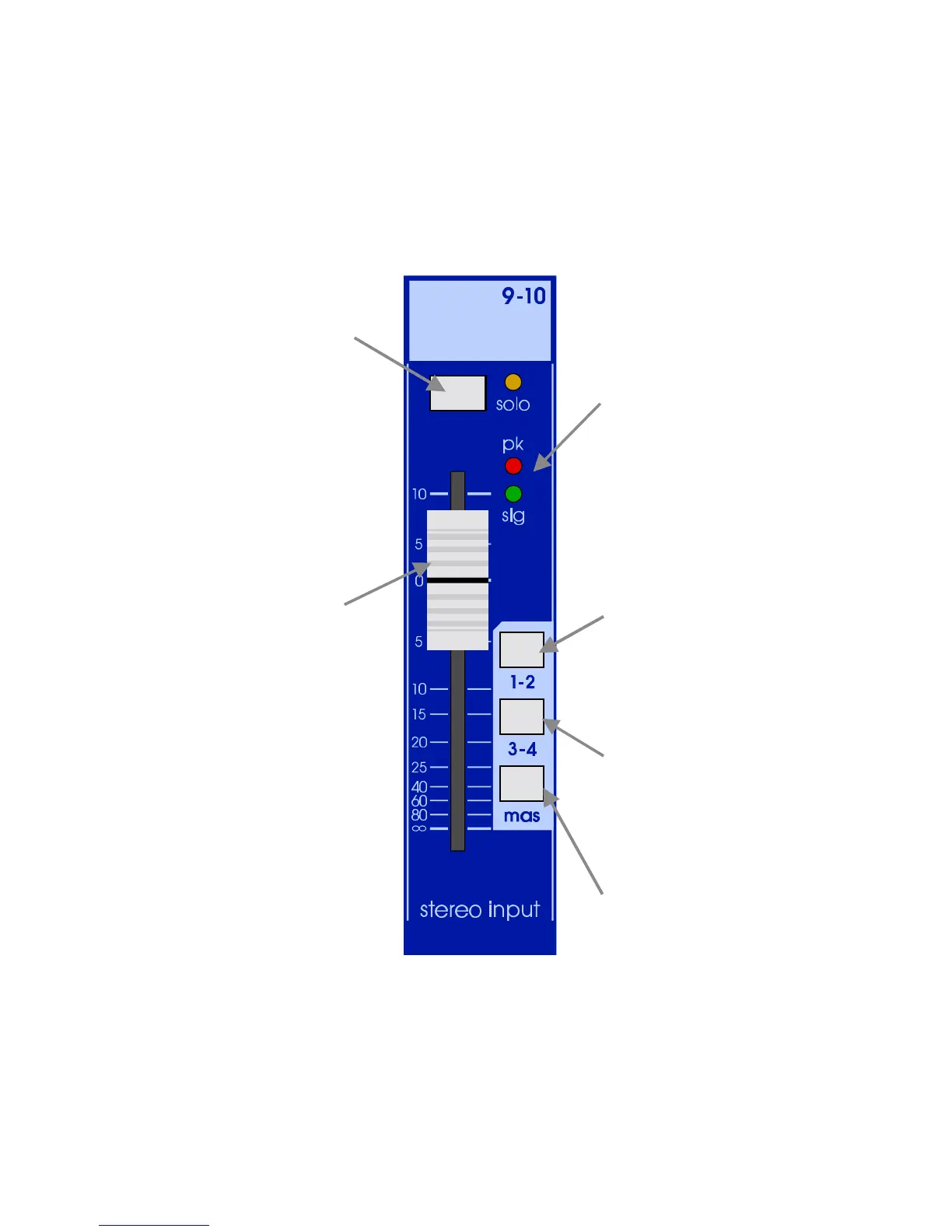

The MAS switch connects the
post fader channel signal to the
master stereo bus via the bal
(pan) control.
The 1-2 switch connects the post
fader channel signal to the group
1-2 busses via the bal (pan) con-
trol.
The 3-4 switch connects the post
fader channel signal to the group
3-4 busses via the bal (pan) con-
trol.
The SIGNAL (-16dBu) / PEAK
(+16dBu) display monitors the
peak signal level of the pre fader
input channel.
The SOLO switch sends the input
channel signal to the PFL/ mono
and AFL/ stereo busses. If the
switch is engaged, the mon1/2
meters are automatically used for
solo metering.
The FADER gives continuous
adjustment of the input channel
level from + 10dB to off.
