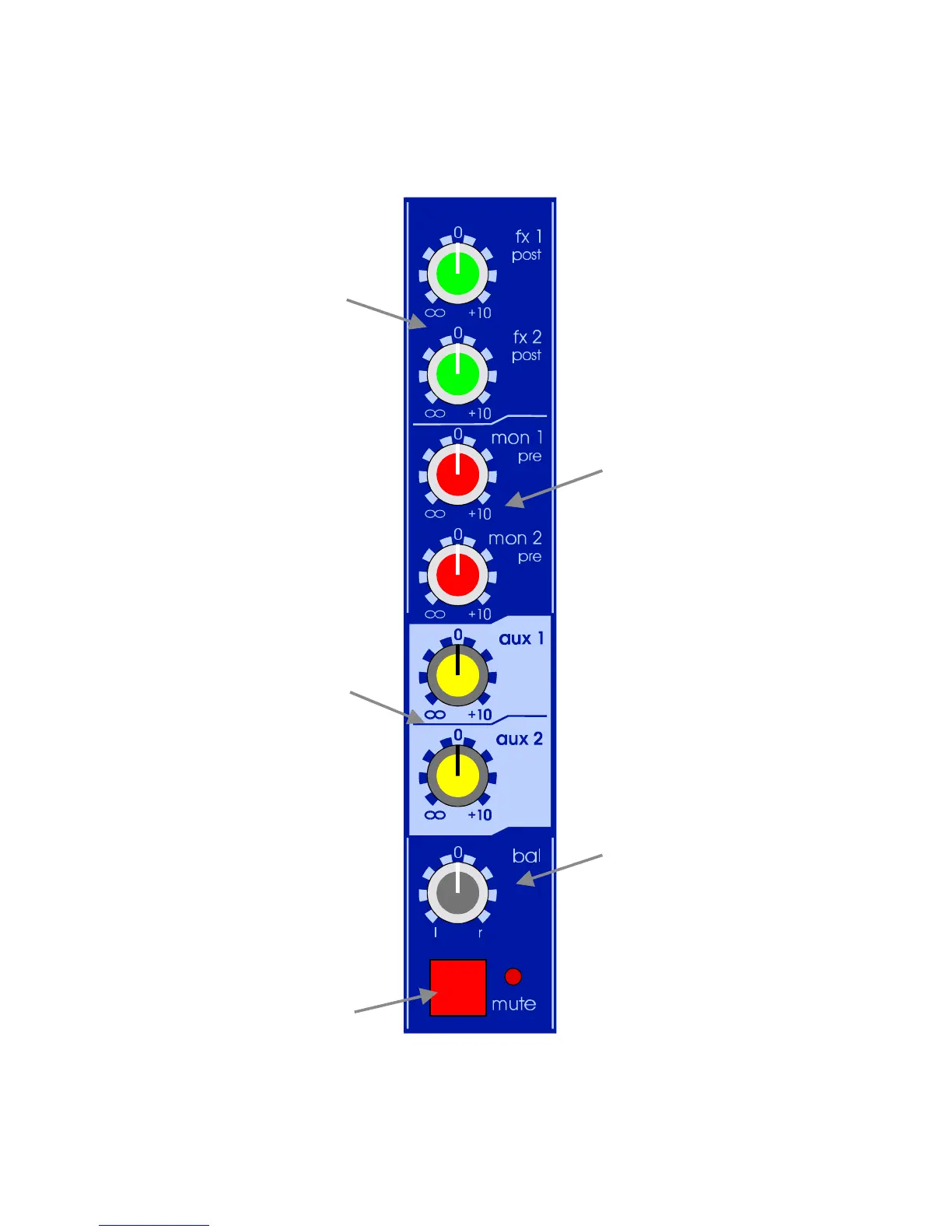

The FX controls give continuous
adjustment of the level sent from
the input channel to the FX bus-
ses. The level adjustment is from
+ 10dB to off with 0dB at the
centre position of the rotary con-
trol. The FX controls are connec-
ted post-fader and send the
mixed left/right signal to the FX
busses.
The MON controls give conti-
nuous adjustment of the level
sent from the input channel to the
MON busses. The level adjust-
ment is from + 10dB to off with
0dB at the centre position of the
rotary control. The MON con-
trols are connected pre fader, pre
equaliser and send the mixed
left/right signal to the MON bus-
ses.
The AUX controls give conti-
nuous adjustment of the mixed
left/right signal level sent from
the input channel to the AUX
busses. The level adjustment is
from + 10dB to off with 0dB at
the centre position of the rotary
control. AUX1 and 2 can be con-
figured globally for pre- or post-
fader operation by pressing the
PRE/POST switch on the appro-
priate AUX-rail in the master
section.
The BAL (pan) control is used to
balance the relative levels of the
left and right channel signals that
are sent to the masters or groups.
The control has a constant power
law, i.e. -3dB at the centre posi-
tion and + 0dB or off at either
extreme setting. If the Stereo
channel used as mono input, the
BALANCE (pan) controls the
channel placement within the
master stereo- or group mix.
The MUTE switch mutes the in-
put channel at all points, inclu-
ding all auxiliary sends.
12
