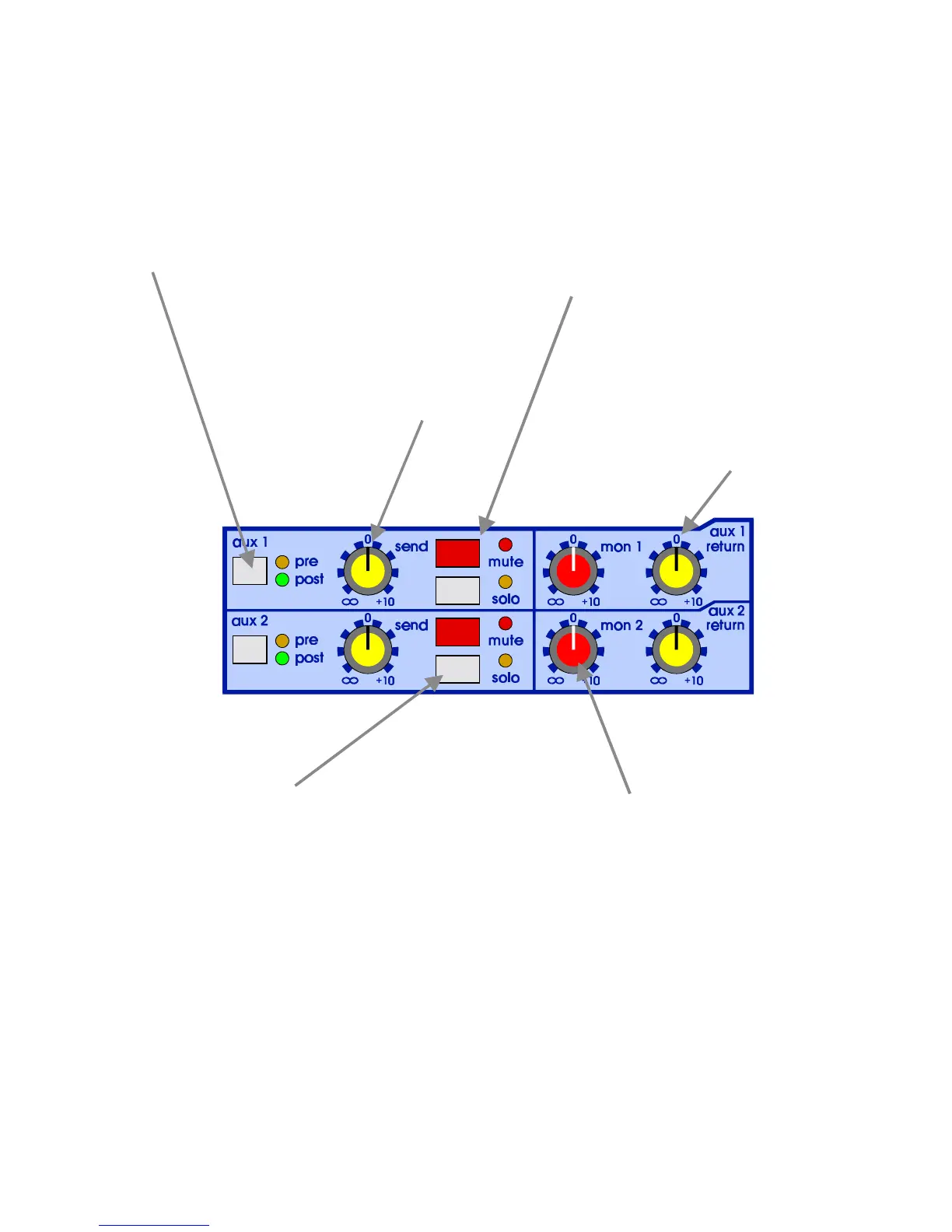

The global AUX PRE/POST
switch configures the aux bus
either in pre- fader (mon) or
post-fader (fx) operation. The
LEDs next to the switch provide
indication of status.
The AUX SEND control gives conti-
nuous adjustment of the aux send out-
put level from +10dB to off with 0dB
at the centre position of the rotary
control.
The MUTE switch mutes the aux
send output signal. It does not af-
fect the aux return.
The AUX RETURN control gives
continuous adjustment of the stereo
aux return level from +10dB to off
with 0dB at the centre position of the
rotary control. The aux return signals
are directly routed to the L/R master
busses.
The SOLO switch routes the aux send
signal to the PFL/ mono and AFL/
stereo busses. Whenever a solo switch
is engaged the man 1/2 display is auto-
matically used for solo metering.
The MON controls give continuous adjust-
ment of the level sent from the aux return to
the MON busses. The level adjustment is
from +10dB to off with 0dB at the centre
position of the rotary control.
