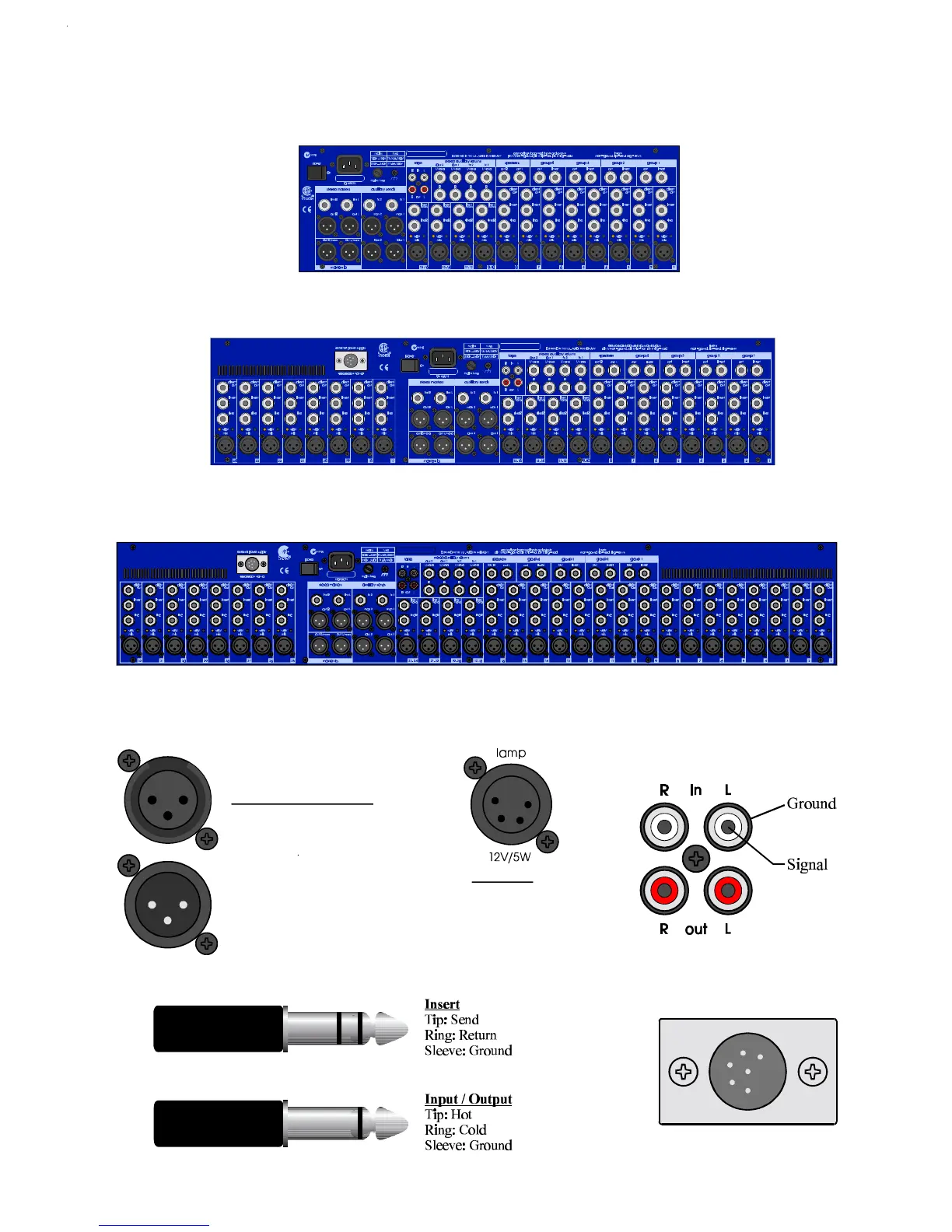

VENICE CONNECTORS
Input / Output XLR
Pin 1: Ground
Pin 2: Hot
Pin 3: Cold
VENICE 160
VENICE 240
Tape IN / OUT
External Power Supply
Lamp out
Pin 1: Chassis
Pin 2: n.c.
Pin 3: Ground
Pin 4: +12V
VENICE 320
3
