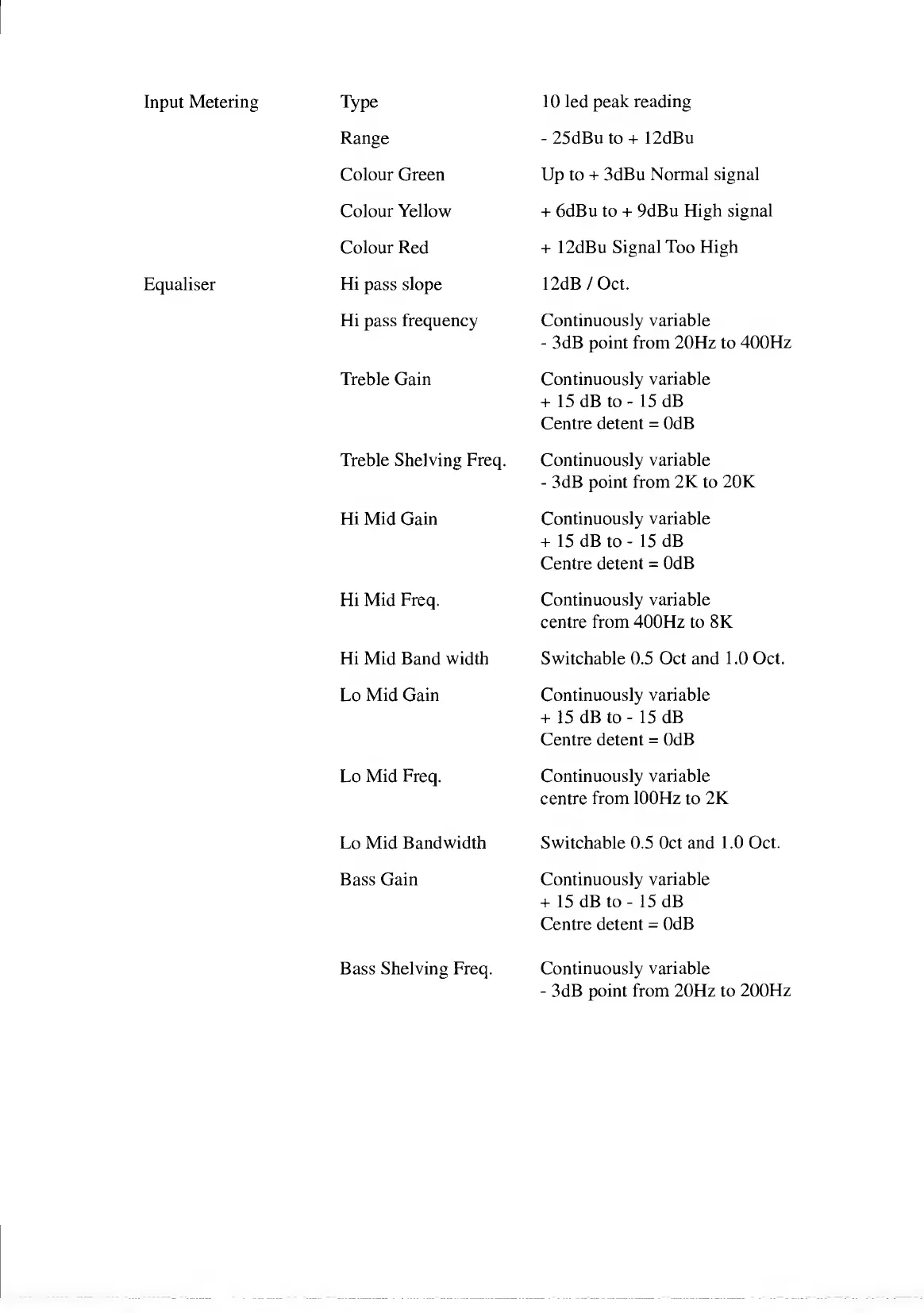

Midas XL200

Input
Metering
Equaliser
Type
Range
Colour Green
Colour Yellow
Colour Red
Hi
pass
slope
Hi pass frequency
Treble Gain
Treble Shelving Freq.
Hi Mid Gain
Hi
Mid Freq.
Hi Mid Band width
Lo
Mid Gain
Lo
Mid Freq.
Lo Mid Bandwidth
Bass Gain
Bass Shelving Freq.
10 led peak reading
-
25dBu to + 12dBu
Up to
+ 3dBu Normal signal
+ 6dBu to + 9dBu High
signal
+ 1 2dBu
Signal Too High
12dB/Oct.
Continuously variable
-
3dB point from 20Hz to
400Hz
Continuously
variable
+ 15 dB to
-
15 dB
Centre detent
=
OdB
Continuously variable
-
3dB point from
2K
to
20K
Continuously
variable
+ 15
dB
to
-
15
dB
Centre
detent
=
OdB
Continuously variable
centre from 400Hz to 8K
Switchable 0.5 Oct
and 1
.0 Oct.
Continuously variable
+
15
dB
to
-
15 dB
Centre detent
=
OdB
Continuously variable
centre
from lOOHz to 2K
Switchable
0.5 Oct
and 1.0 Oct.
Continuously variable
+ 15 dB to
-
15 dB
Centre detent
=
OdB
Continuously variable
-
3dB point from 20Hz to
200Hz
