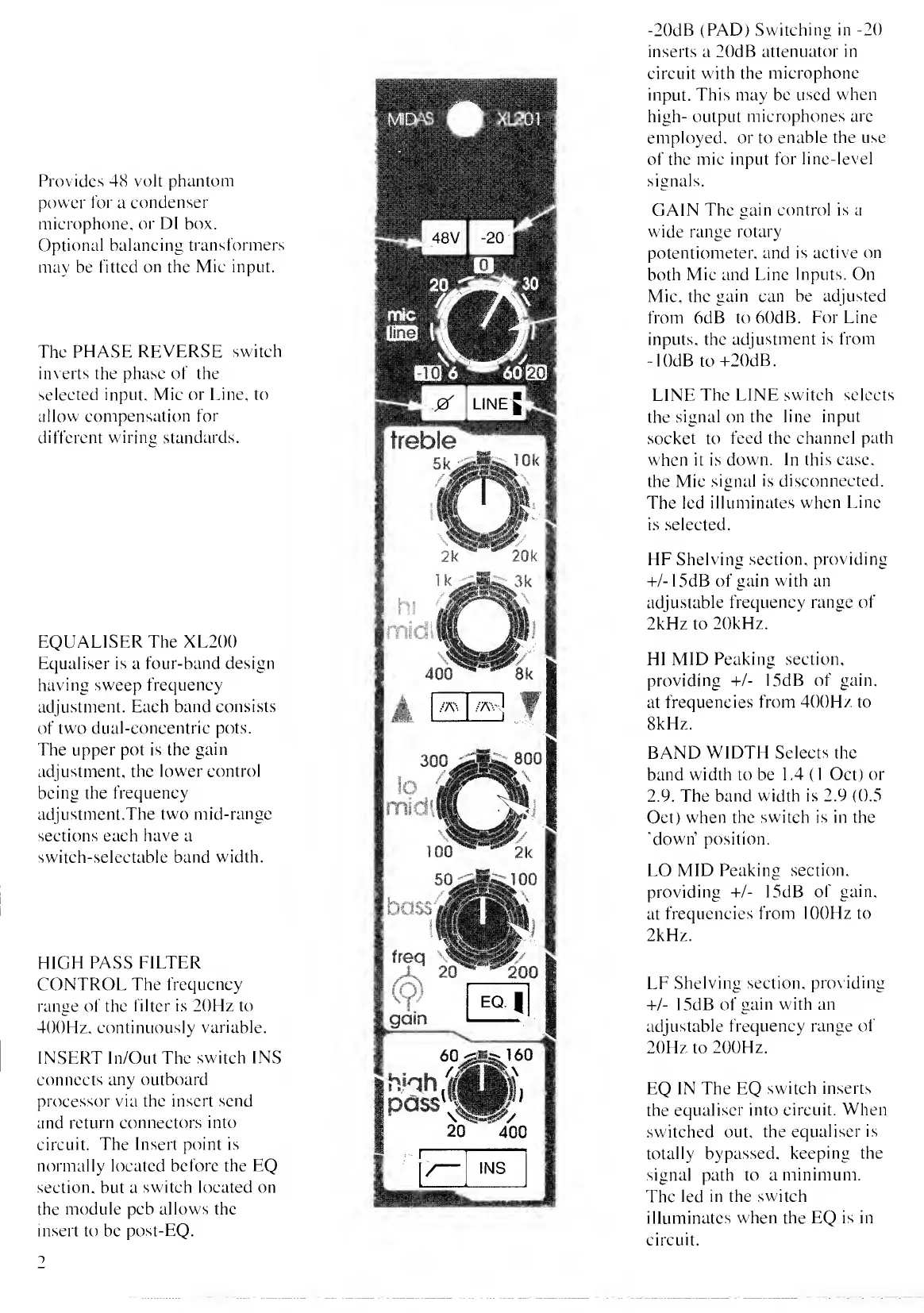

Midas XL200

Provides 48 volt
phantom
power for
a
condenser
microphone,
or DI box.
Optional balancing
transformers
may be fitted
on the Mic input.
The
PHASE REVERSE
switch
inverts
the
phase of the
selected input,
Mic or Line, to
allow compensation
for
different wiring
standards.
EQUALISER
The XL2()()
Equaliser
is
a
four-band design
having sweep frequency
adjustment. Each
band consists
of two
dual-concentric
pots.
The upper pot is the
gain
adjustment, the lower control
being the frequency
adjustment.The two
mid-range
sections each
have
a
switch-selectable
band width.
HIGH
PASS FILTER
CONTROL The
frequency
range of the
filter is 2()Hz to
400Hz.
continuously variable.
INSERT In/Out The
switch INS
connects any outboard
processor via the
insert send
and
return connectors into
circuit. The Insert point is
normally located
before the EQ
section,
but a
switch located on
the module peb allows the
insert
to be
post-EQ.
-20dB (PAD)
Switching in
-20
inserts a
20dB attenuator in
circuit
with the microphone
input. This may be
used when
high- output
microphones arc
employed, or to
enable the
use
of the mic input
for line-level
signals.
GAIN
The gain control
is
a
wide range
rotary
potentiometer, and
is active on
both Mic and
Line Inputs. On
Mic, the
gain can be
adjusted
from 6dB to
60dB. For Line
inputs,
the
adjustment
is from
-lOdB
to+20dB.
LINE
The LINE
switch selects
the signal on
the line input
socket to feed the
channel path
when it
is down. In
this
case,
the Mic signal
is disconnected.
The led
illuminates when
Line
is
selected.
HE Shelving
section,
providing
-i-/-15dB of gain
with an
adjustable frequency
range of
2kHz to
2()kHz.
HI MID
Peaking section,
providing
+!-
15dB of gain,
at
frequencies from
4()0Hz
to
8kHz.
BANDWIDTH Selects the
band width to be 1
.4 (
1 Oct)
or
2.9. The
band width is 2.9 (0.5
Oct)
when the switch is in the
’down position.
LO MID Peaking
section,
providing
+!-
15dB
of gain,
at
frequencies
from lOOHz to
2kHz.
LF
Shelving section,
providing
+!-
15dB of
gain with an
adjustable frequency range
of
20Hz to
200Hz.
EQ IN The EQ
switch inserts
the
equaliser into circuit.
When
switched out,
the
equaliser is
totally bypassed,
keeping the
signal path to a
minimum.
The
led in the
switch
illuminates
when the EQ is in
eircuit.
")
