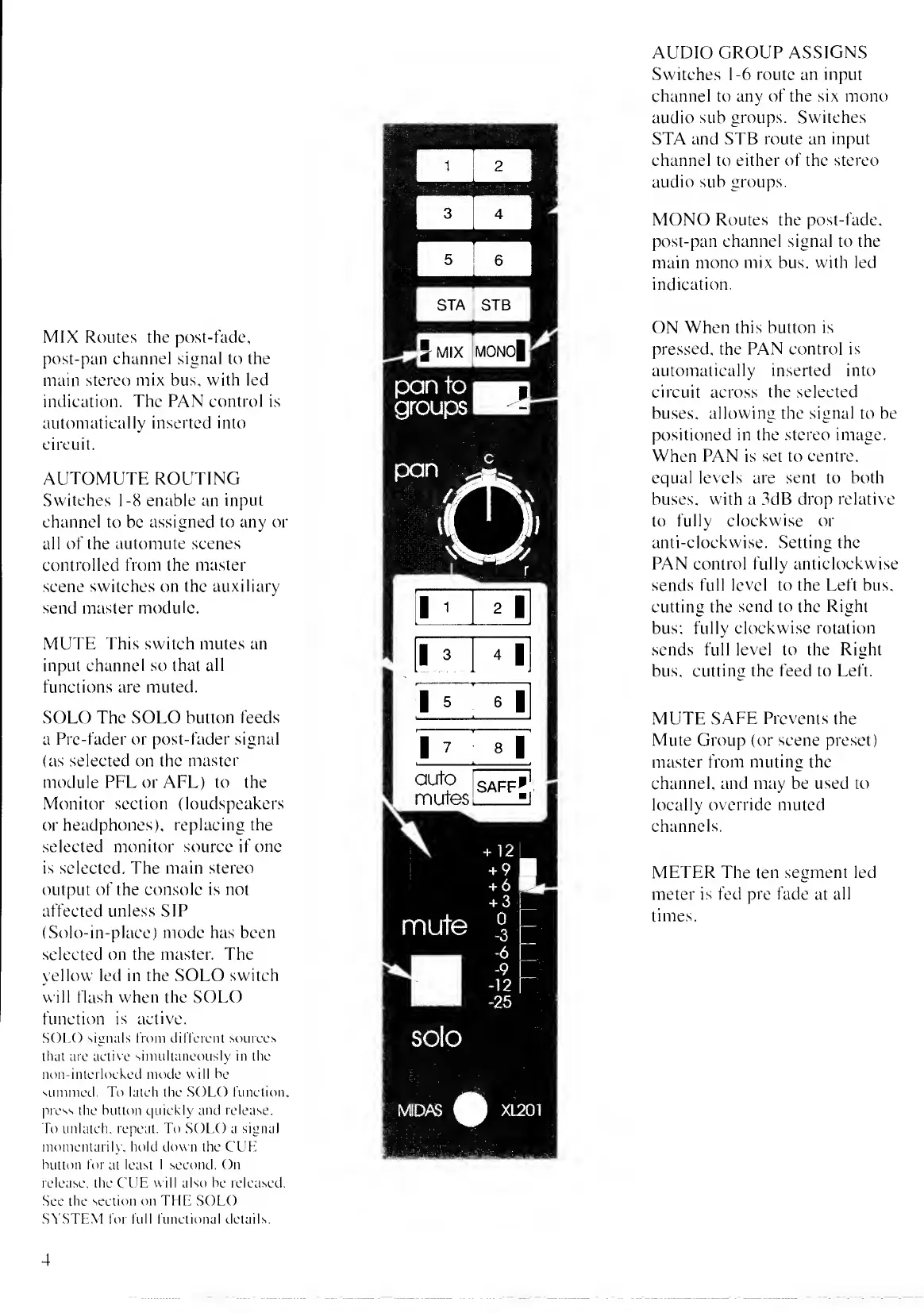

Midas XL200

MIX Routes the
post-fade,
post-pan ehannel signal to the
main
stereo mix bus, with led
indication. The PAN control is
automatically
inserted into
circuit.
AUTOMUTE
ROUTING
Switches
1-8
enable an input
channel to
be
assigned
to
any
or
all
of the automute
scenes
controlled from the master
scene switches on the auxiliary
send
master
module.
MUTE This switch mutes an
input
channel so that all
functions are muted.
SOLO The SOLO
button feeds
a
Pre-fader or post-fader signal
(as selected on the
master
module PPL or APE) to the
Monitor
section (loudspeakers
or
headphones), replacing the
selected monitor
source
if
one
is selected. The main stereo
output of the
console is not
affected unless SIP
(Solo-in-place) mode has been
selected on the master. The
yellow led in the SOLO
switch
will Hash when the SOLO
function
is active.
SOLO signals from dilTcrenl
sources
that are active simultaneously in the
non-inteiiocked mode will
be
sLimmed. To latch the SOLO function,
press
the button
qtiickly and release.
To unlateh. repeat. To SOLO a signtil
momentarily, hold down the
CLIH
button for
at
least I second. On
release, the CUE will
also
be
released.
See
the section on THE SOLO
S't’STEM for full functional
details.
AUDIO GROUP
ASSIGNS
Switches
1-6
route an input
channel to any of the six mono
audio
sub groups. Switches
STA and STB
route an input
channel to either of the
stereo
audio sub groups.
MONO Routes the
post-fade,
post-pan channel signal to the
main
mono mix bus, w'ith led
indication.
ON
When this button is
pressed, the PAN control
is
automatically inserted into
circuit across the selected
buses,
allowing the signal to
be
positioned in the
stereo image.
When PAN is set to centre,
equal levels are sent to both
buses, with
a
3dB drop
relative
to
fully
clockwise or
anti-clockwise.
Setting the
PAN
control fully
anticlockwise
sends full level to the Left
bus.
cutting the
send
to
the Right
bus; fully
clockwise rotation
sends full level to the Right
bus. cutting the feed to Left.
MUTE
SALE Prevents the
Mute Group (or
scene preset)
master
from muting the
channel, and may be
used
to
locally override muted
channels.
METER The ten segment led
meter
is
fed
pre fade
at
all
times.
