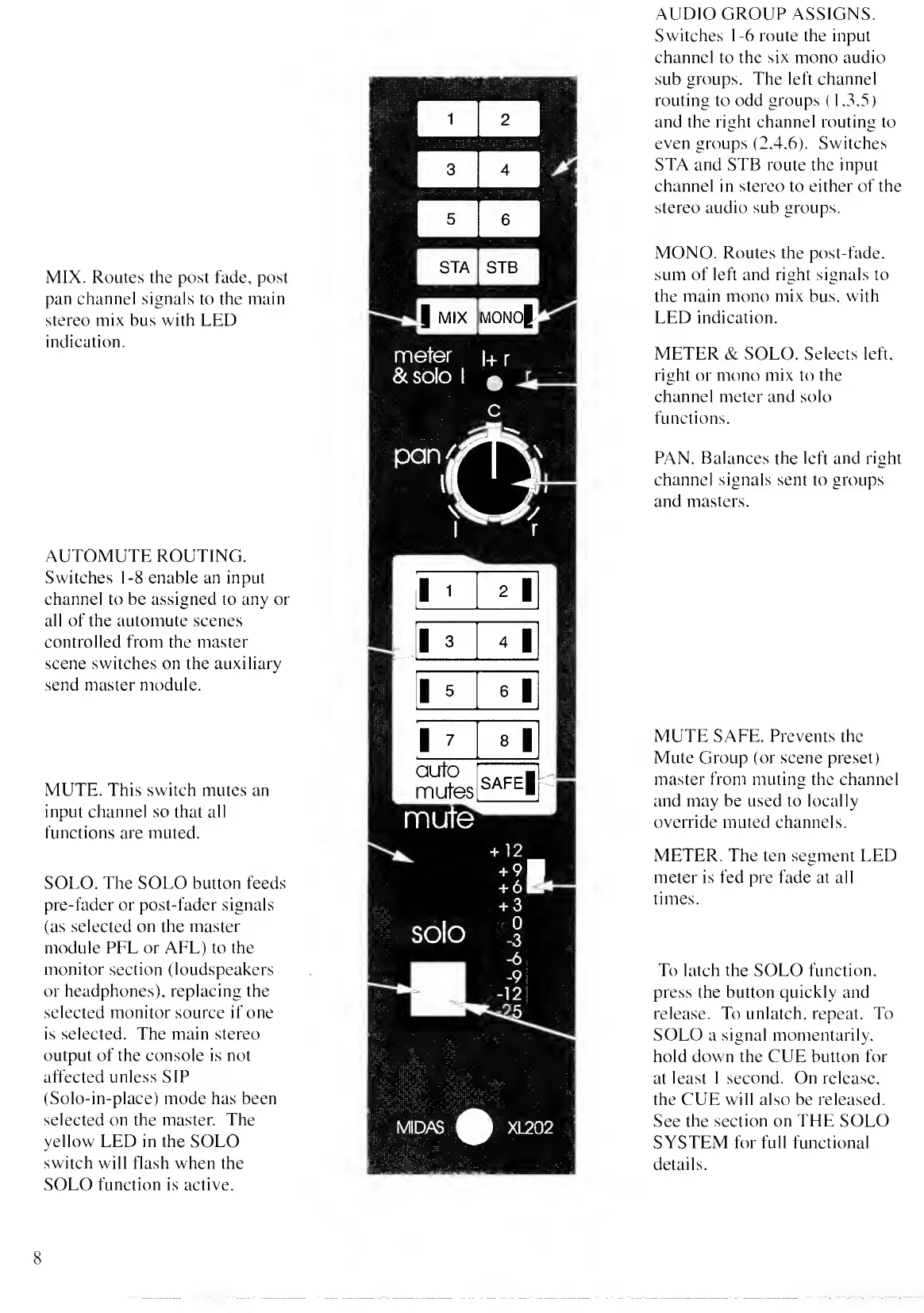

Midas XL200

MIX. Routes the post fade, post
pan channel signals
to
the main
stereo mix bus with LED
indication.
AUTOMUTE ROUTING.
Switches
1-8
enable an input
channel to be assigned to any or
all of the automute scenes
controlled from the master
scene switches on the auxiliary
send master module.
MUTE. This switch mutes an
input channel so that all
functions are muted.
SOLO. The SOLO button feeds
pre-fader or post-fader signals
(as selected on the master
module PEL or AFL) to the
monitor section (loudspeakers
or headphones), replacing the
.selected monitor source if one
is
selected.
The main stereo
output of the console is not
affected unless SIP
(Solo-in-place) mode has been
selected on the master. The
yellow LED in the SOLO
switch
will flash when the
SOLO function is active.
AUDIO GROUP ASSIGNS.
Switches
1-6
route the input
channel to the
six
mono audio
sub groups. The left channel
routing to odd groups
(
1
.3.5)
and the right channel routing to
even groups
(2.4.6).
Switches
STA and STB route the input
channel in stereo to either of the
stereo audio sub groups.
MONO. Routes the post-fade,
sum of left and right
signals
to
the main mono mix bus. with
LED indication.
METER & SOLO.
Selects
left,
right or mono mix to the
channel meter and solo
functions.
PAN. Balances the left and right
channel
signals
sent to groups
and masters.
MUTE SAFE. Prevents the
Mute Group (or scene preset)
master from
muting the channel
and may be used to locally
override muted channels.
METER. The ten segment LED
meter is fed pre fade at all
times.
To latch the SOLO function,
press the button quickly and
release. To unlatch, repeat. To
SOLO a signal momentarily,
hold down the CUE button for
at
least I second. On release,
the CUE will also be released.
See
the section on THE
SOLO
SYSTEM for full functional
details.
