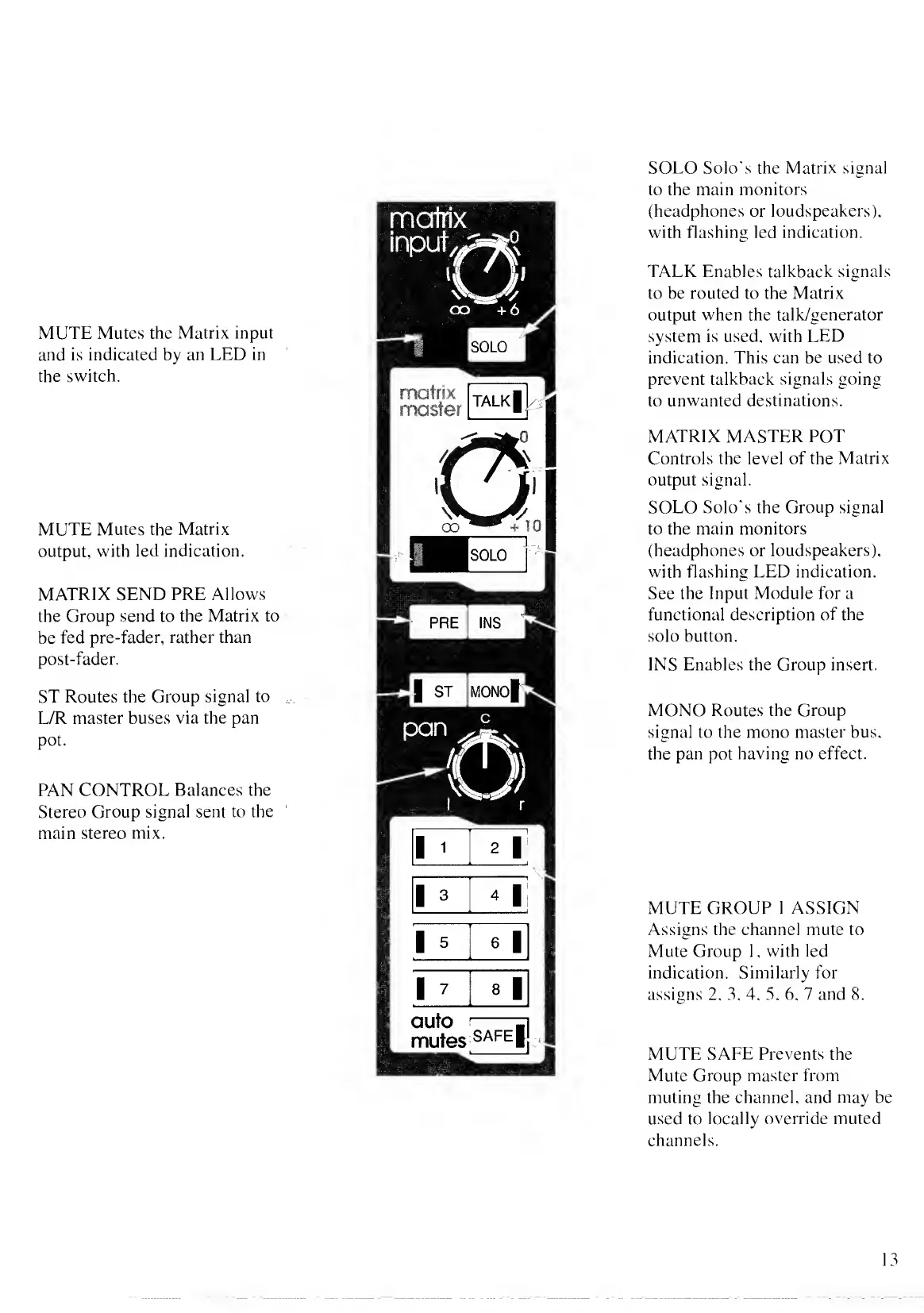

Midas XL200

MUTE Mutes
the Matrix input
and is indicated by
an LED in
the
switch.
MUTE Mutes
the
Matrix
output, with led
indication.
MATRIX SEND PRE
Allows
the Group
send to the Matrix to
be
fed
pre-fader, rather than
post-fader.
ST Routes the Group
signal to
L/R
master buses via the pan
pot.
PAN
CONTROL Balances the
Stereo Group
signal sent to the
main
stereo mix.
SOLO Solo's the Matrix signal
to the main
monitors
(headphones or
loudspeakers),
with flashing led indication.
TALK Enables talkback signals
to be routed to the Matrix
output
when the talk/generator
system is used, with
LED
indication. This can be used to
prevent talkback signals going
to
unwanted destinations.
MATRIX MASTER POT
Controls the level of the
Matrix
output signal.
SOLO Solo's the Group signal
to the main monitors
(headphones
or loudspeakers),
with flashing LED indication.
See
the Input Module for a
functional
description of the
solo button.
INS Enables the Group insert.
MONO Routes the Group
signal to the mono
master
bus.
the pan
pot
having no effect.
MUTE GROUP
1 ASSIGN
Assigns the channel mute to
Mute Group
1
,
with led
indication. Similarly for
assigns
2. 3.
4.
5.
6,
7
and
8.
MUTE SALE
Prevents
the
Mute Group master from
muting the channel, and
may
be
used
to
locally override muted
channels.
13
