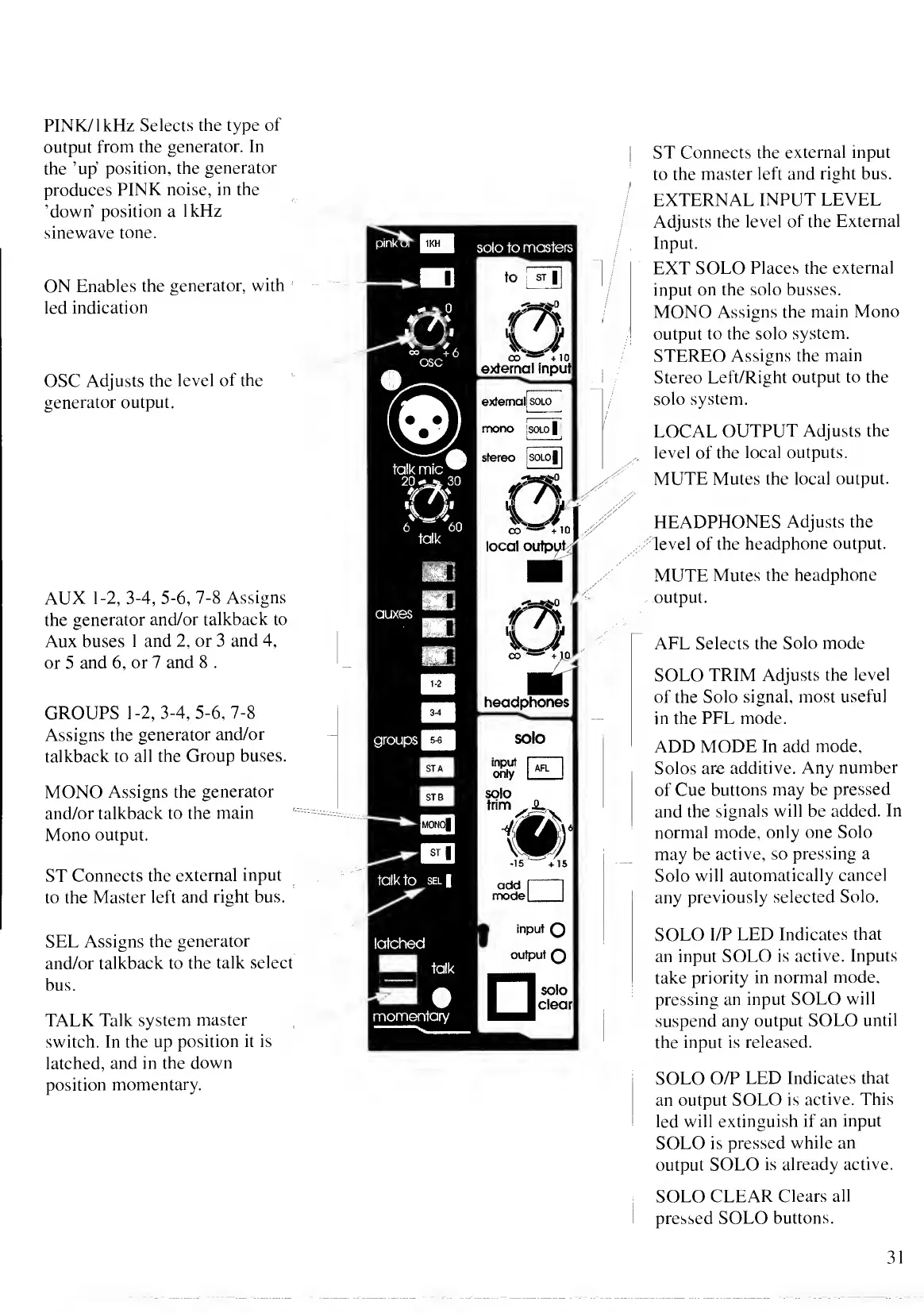

Midas XL200

PINK/ 1 kHz
Selects the type
of
output
from the
generator. In
the ’up
position, the
generator
produces
PINK noise,
in the
’down’
position
a
IkHz
sinewave
tone.
ON
Enables the
generator,
with
led
indication
OSC
Adjusts
the level
of the
generator output.
AUX 1-2, 3-4,
5-6,
7-8
Assigns
the
generator
and/or talkback to
Aux buses
1 and
2,
or 3
and
4,
or 5
and
6,
or 7
and 8 .
GROUPS 1-2,
3-4, 5-6,
7-8
Assigns
the
generator
and/or
talkback to
all the Group
buses.
MONO
Assigns the
generator
and/or
talkback to the
main
Mono output.
ST
Connects
the external
input
to the
Master left
and right bus.
SEE Assigns
the
generator
and/or
talkback to
the talk
select
bus.
TAEK
Talk system
master
switch. In
the up
position it is
latched, and in
the down
position
momentary.
ST Connects
the external input
to
the master
left and right bus.
EXTERNAE
INPUT EEVEE
Adjusts the level
of the External
Input.
EXT
SOLO Places the
external
input
on the solo
busses.
MONO
Assigns the
main Mono
output
to the solo
system.
STEREO
Assigns the
main
Stereo Left/Right
output to the
solo
system.
LOCAL OUTPUT
Adjusts
the
level of
the local
outputs.
MUTE Mutes
the local
output.
HEADPHONES Adjusts the
level of
the headphone
output.
MUTE
Mutes the
headphone
output.
AFL Selects
the Solo mode
SOLO TRIM
Adjusts the
level
of the
Solo signal, most
useful
in the PEL mode.
ADD
MODE In add
mode.
Solos are
additive. Any
number
of Cue
buttons may be
pressed
and the
signals will be added.
In
normal mode,
only one Solo
may be
active, so
pressing a
Solo will
automatically
cancel
any
previously
selected
Solo.
SOLO
1/P LED
Indicates that
an input
SOLO is
active. Inputs
take priority
in normal
mode,
pressing an input
SOLO
will
suspend any
output
SOLO until
the input is
released.
SOLO O/P
LED
Indicates that
an output
SOLO is
active. This
led will
extinguish if an
input
SOLO is
pressed
while an
output SOLO
is already
active.
SOLO
CLEAR Clears
all
pressed
SOLO
buttons.
31
