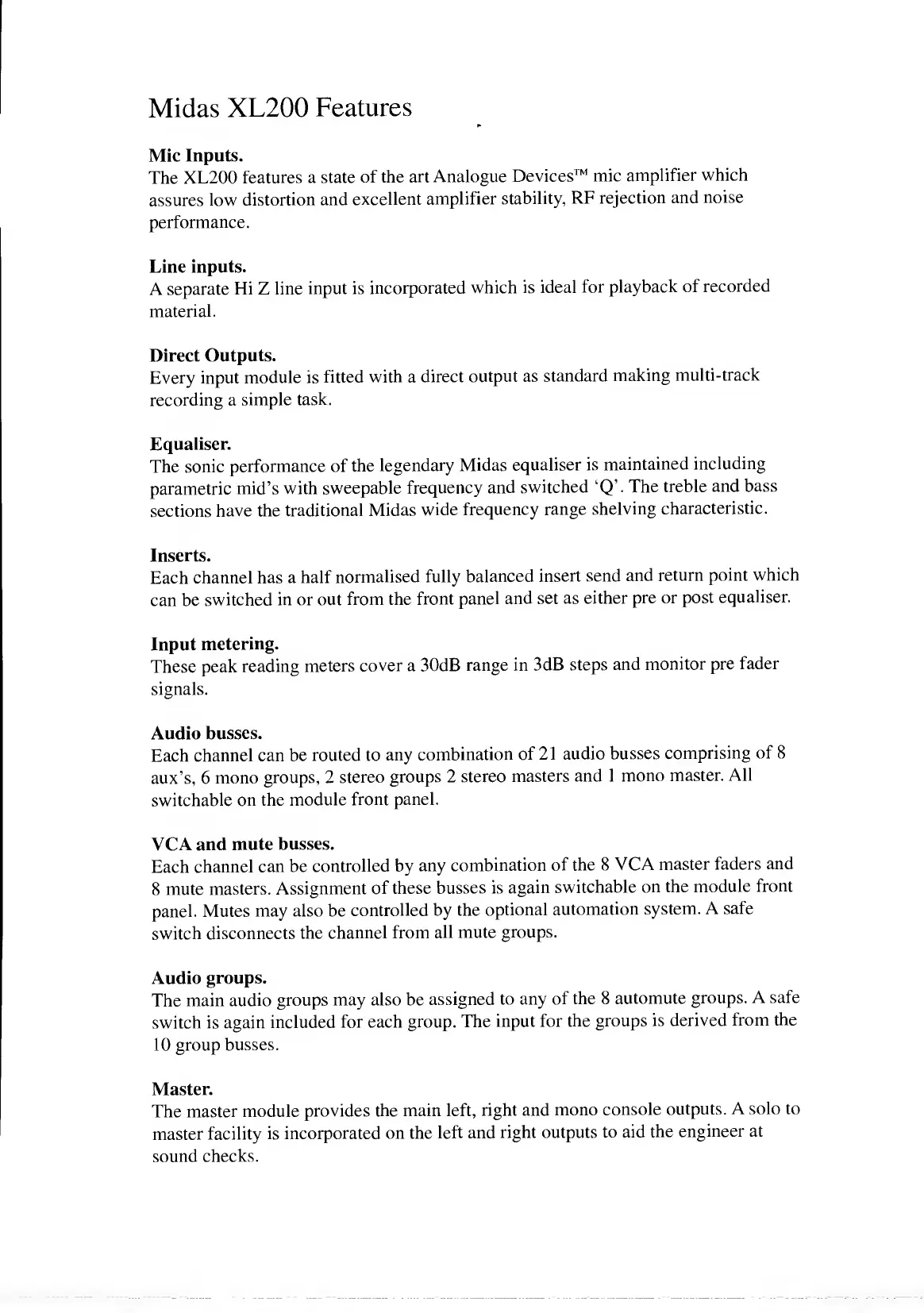

Midas XL200

Midas
XL200
Features
Mic
Inputs.
The
XL200
features a state
of the
art Analogue
Devices™
mic
amplifier
which
assures
low
distortion and
excellent
amplifier
stability,
RF
rejection and
noise
performance.
Line inputs.
A
separate
Hi Z line
input is
incorporated
which
is ideal
for
playback of
recorded
material.
Direct Outputs.
Every input
module is
fitted
with
a
direct
output as
standard
making
multi-track
recording a
simple
task.
Equaliser.
The sonic
performance of the
legendary
Midas
equaliser
is
maintained
including
parametric
mid’s with
sweepable
frequency
and
switched
‘Q’.
The
treble and
bass
sections
have
the
traditional Midas
wide
frequency range
shelving
characteristic.
Inserts.
Each
channel has a
half
normalised
fully
balanced
insert send
and
return point
which
can be
switched
in or out
from the
front
panel and set as
either pre or
post
equaliser.
Input
metering.
These
peak
reading
meters
cover
a
30dB
range in
3dB steps
and
monitor pre
fader
signals.
Audio
busses.
Each channel
can be
routed to
any
combination
of 21 audio
busses
comprising
of 8
aux’s, 6
mono
groups, 2
stereo
groups 2 stereo
masters and 1
mono
master.
All
switchable
on the
module
front panel.
VGA and mute
busses.
Each
channel
can be
controlled by
any
combination
of the 8
VGA
master faders
and
8
mute
masters.
Assignment
of these
busses is
again
switchable
on the
module
front
panel. Mutes
may also be
controlled by the
optional
automation
system. A
safe
switch
disconnects
the
channel from
all mute
groups.
Audio
groups.
The
main
audio groups
may also be
assigned to any
of the 8
automute
groups.
A safe
switch is again
included
for each group.
The
input for
the groups
is derived
from
the
10
group
busses.
Master.
The
master module
provides
the main
left, right and
mono
console
outputs.
A solo to
master facility
is
incorporated on the
left and
right outputs
to aid
the
engineer at
sound
checks.
