Manual Number 9019161 Revision C, August 18, 2023 14

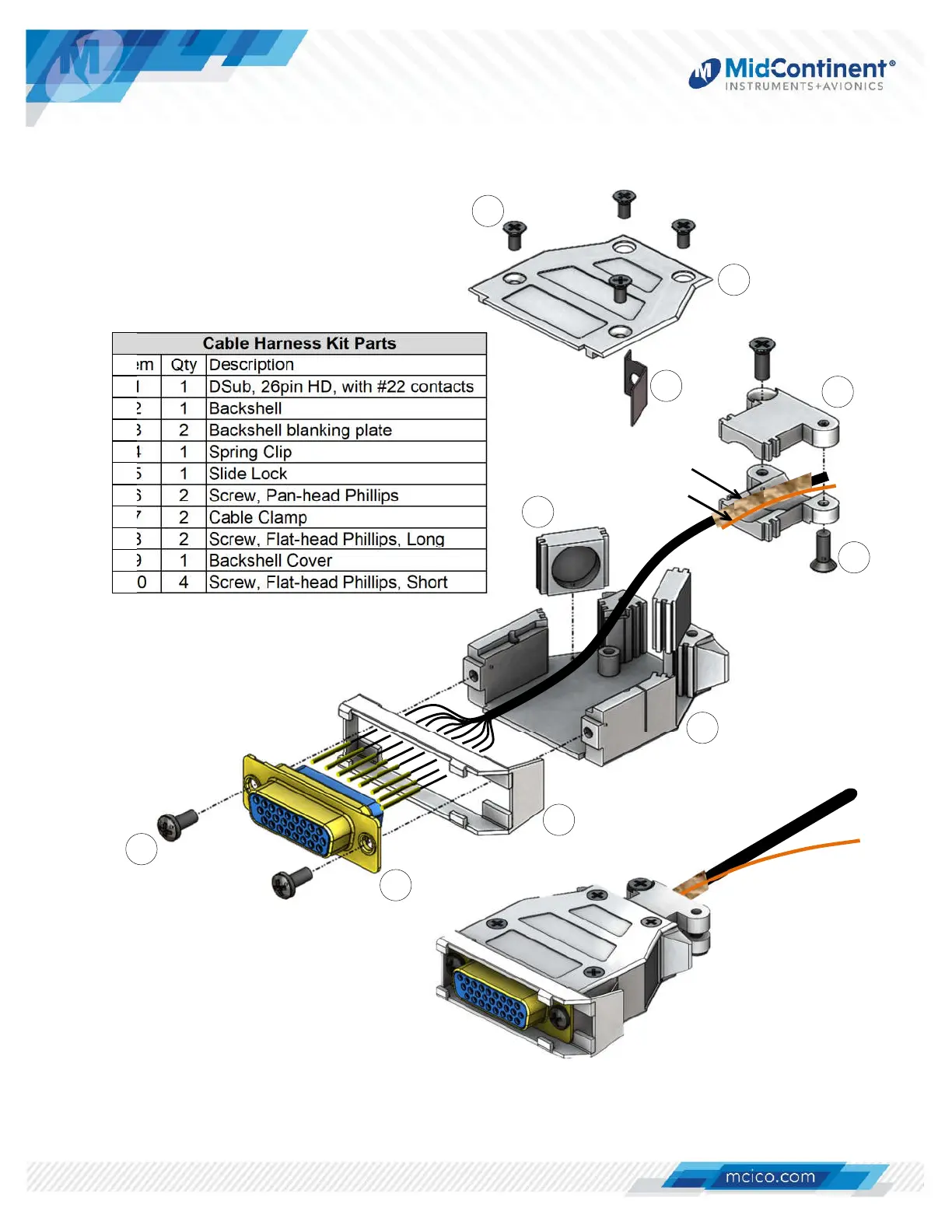

Figure 3.2 Mating Cable Harness Assembly
Cable Harness Kit Parts
Item
Qty
Description
1 1 DSub, 26pin HD, with #22 contacts
2 1 Backshell
3 2 Backshell blanking plate
4 1 Spring Clip
5 1 Slide Lock
6 2 Screw, Pan-head Phillips
7 2 Cable Clamp
8 2 Screw, Flat-head Phillips, Long
9 1 Backshell Cover
10 4 Screw, Flat-head Phillips, Short
1
8
9
3
5
2
7
4
6
10
Shield
Grounding Wire
To Next Page
