Manual Number 9019161 Revision C, August 18, 2023 16
INSTALLATION COMPLETION
After installation of cabling and before installation of the equipment, ensure that power is applied
only to the pins specified in the interconnect diagram.
Prior to operating the unit in the aircraft, verify the basic operation of the unit and conduct a
standard leak check of the pitot/static system per the aircraft maintenance manual or industry
practice. Verify the proper CID number is installed for the application.

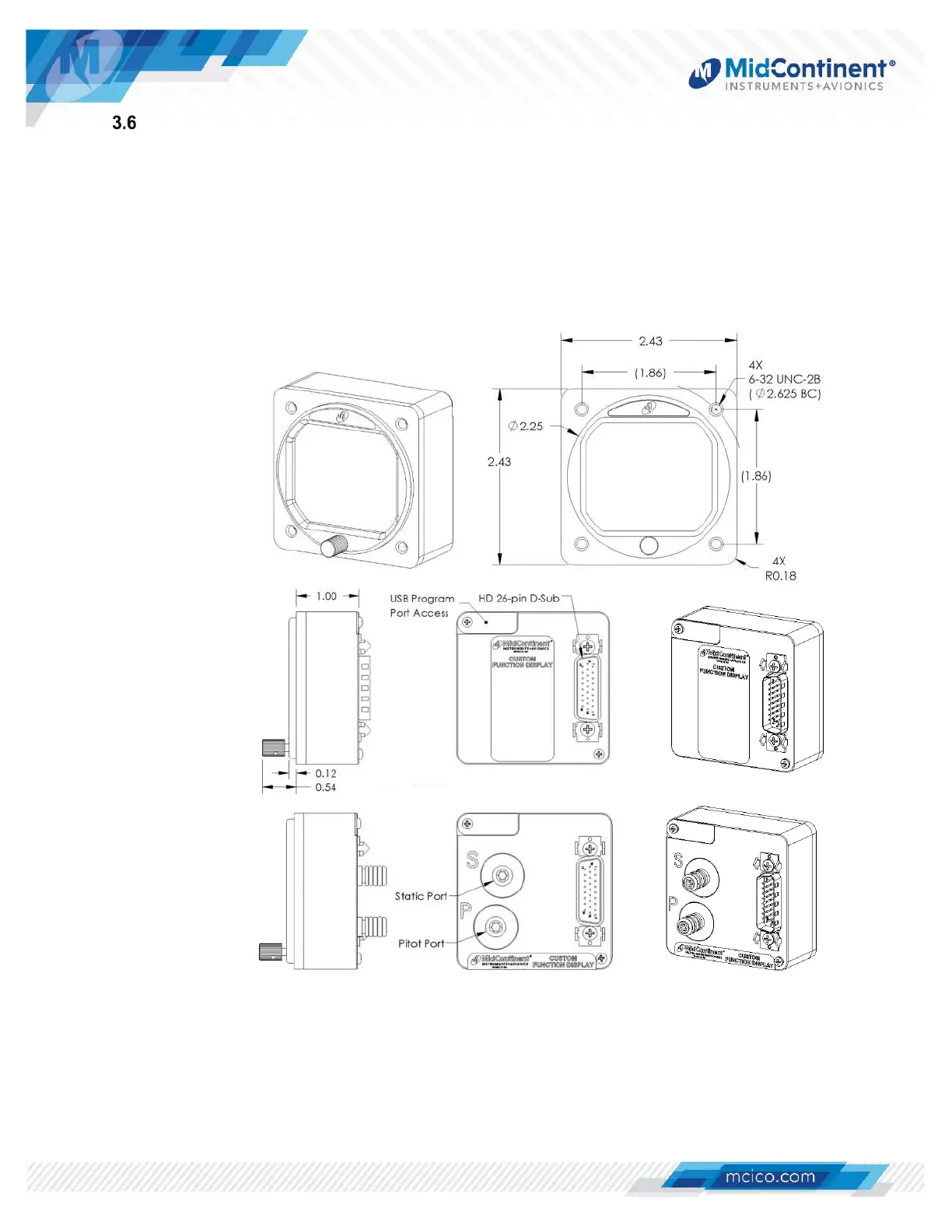

Figure 3.3 MD23 Outline Drawing
all dimensions apply to all versions
-1,-3
VERSIONS
-2 VERSION
