ENGLISH
5

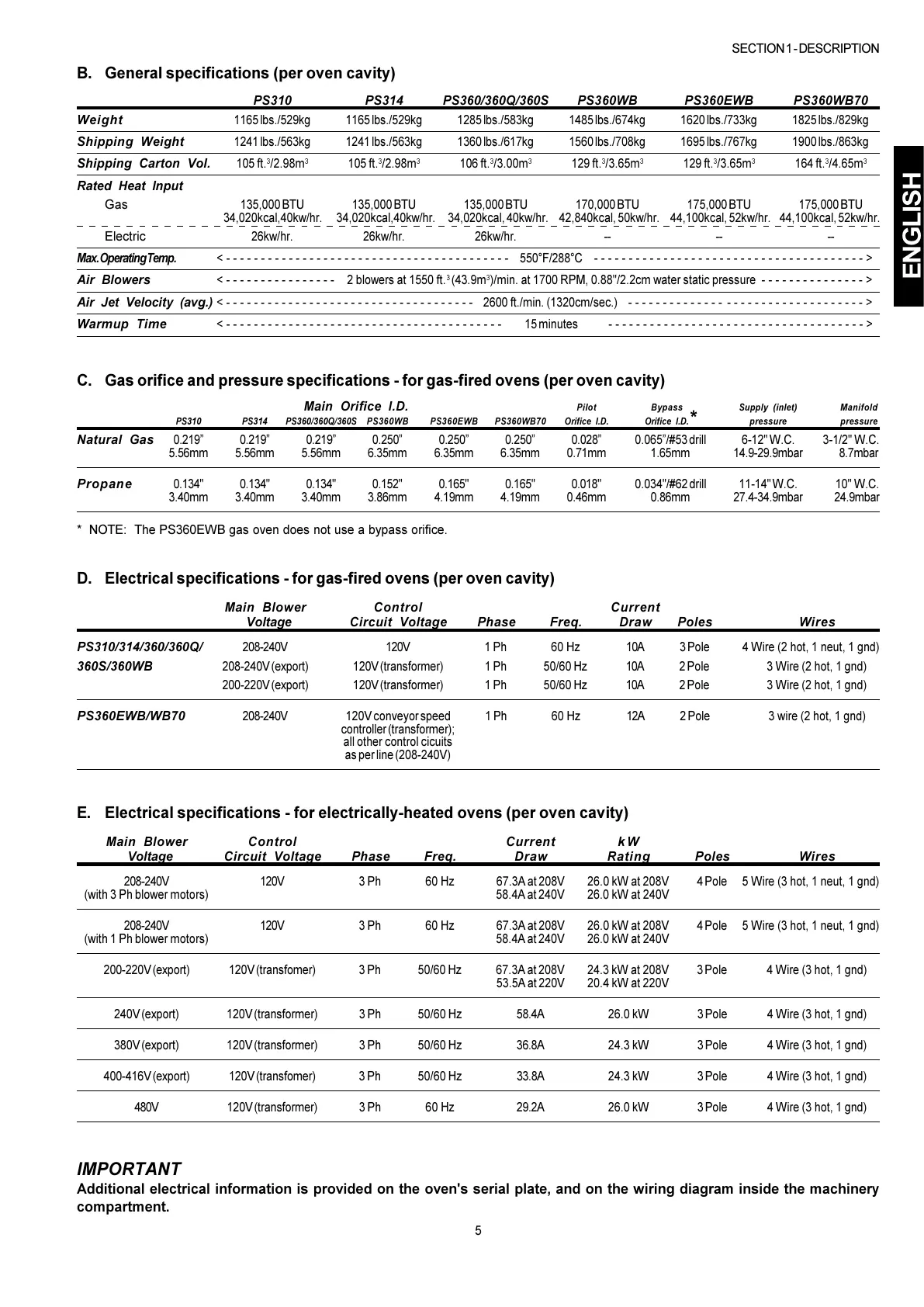

B. General specifications (per oven cavity)
PS310 PS314 PS360/360Q/360S PS360WB PS360EWB PS360WB70
Weight
1165 lbs./529kg 1165 lbs./529kg 1285 lbs./583kg 1485 lbs./674kg 1620 lbs./733kg 1825 lbs./829kg
Shipping Weight
1241 lbs./563kg 1241 lbs./563kg 1360 lbs./617kg 1560 lbs./708kg 1695 lbs./767kg 1900 lbs./863kg
Shipping Carton Vol.
105 ft.
3
/2.98m
3
105 ft.
3
/2.98m
3
106 ft.
3
/3.00m
3
129 ft.
3
/3.65m
3
129 ft.
3
/3.65m
3
164 ft.
3
/4.65m
3
Rated Heat Input
Gas
135,000 BTU 135,000 BTU 135,000 BTU 170,000 BTU 175,000 BTU 175,000 BTU
34,020kcal,40kw/hr. 34,020kcal,40kw/hr. 34,020kcal, 40kw/hr. 42,840kcal, 50kw/hr. 44,100kcal, 52kw/hr. 44,100kcal, 52kw/hr.
Electric
26kw/hr. 26kw/hr. 26kw/hr. -- -- --
Max. Operating Temp. < - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 550°F/288°C - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - >
Air Blowers
< - - - - - - - - - - - - - - - - 2 blowers at 1550 ft.
3
(43.9m
3
)/min. at 1700 RPM, 0.88"/2.2cm water static pressure - - - - - - - - - - - - - - - >
Air Jet Velocity (avg.)
< - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2600 ft./min. (1320cm/sec.) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - >
Warmup Time
< - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 minutes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - >
C. Gas orifice and pressure specifications - for gas-fired ovens (per oven cavity)
Main Orifice I.D.
Pilot Bypass Supply (inlet) Manifold
PS310 PS314 PS360/360Q/360S PS360WB PS360EWB PS360WB70 Orifice I.D. Orifice I.D.
*
pressure pressure
Natural Gas
0.219 0.219 0.219 0.250 0.250 0.250 0.028 0.065/#53 drill 6-12" W.C. 3-1/2" W.C.
5.56mm 5.56mm 5.56mm 6.35mm 6.35mm 6.35mm 0.71mm 1.65mm 14.9-29.9mbar 8.7mbar
Propane
0.134" 0.134" 0.134" 0.152" 0.165" 0.165" 0.018" 0.034"/#62 drill 11-14" W.C. 10" W.C.
3.40mm 3.40mm 3.40mm 3.86mm 4.19mm 4.19mm 0.46mm 0.86mm 27.4-34.9mbar 24.9mbar
* NOTE: The PS360EWB gas oven does not use a bypass orifice.
D. Electrical specifications - for gas-fired ovens (per oven cavity)
Main Blower Control Current
Voltage Circuit Voltage Phase Freq. Draw Poles Wires
PS310/314/360/360Q/
208-240V 120V 1 Ph 60 Hz 10A 3 Pole 4 Wire (2 hot, 1 neut, 1 gnd)
360S/360WB
208-240V (export) 120V (transformer) 1 Ph 50/60 Hz 10A 2 Pole 3 Wire (2 hot, 1 gnd)
200-220V (export) 120V (transformer) 1 Ph 50/60 Hz 10A 2 Pole 3 Wire (2 hot, 1 gnd)
PS360EWB/WB70
208-240V 120V conveyor speed 1 Ph 60 Hz 12A 2 Pole 3 wire (2 hot, 1 gnd)
controller (transformer);
all other control cicuits
as per line (208-240V)
E. Electrical specifications - for electrically-heated ovens (per oven cavity)
Main Blower Control Current kW
Voltage Circuit Voltage Phase Freq. Draw Rating Poles Wires
208-240V 120V 3 Ph 60 Hz 67.3A at 208V 26.0 kW at 208V 4 Pole 5 Wire (3 hot, 1 neut, 1 gnd)
(with 3 Ph blower motors) 58.4A at 240V 26.0 kW at 240V
208-240V 120V 3 Ph 60 Hz 67.3A at 208V 26.0 kW at 208V 4 Pole 5 Wire (3 hot, 1 neut, 1 gnd)
(with 1 Ph blower motors) 58.4A at 240V 26.0 kW at 240V
200-220V (export) 120V (transfomer) 3 Ph 50/60 Hz 67.3A at 208V 24.3 kW at 208V 3 Pole 4 Wire (3 hot, 1 gnd)
53.5A at 220V 20.4 kW at 220V
240V (export) 120V (transformer) 3 Ph 50/60 Hz 58.4A 26.0 kW 3 Pole 4 Wire (3 hot, 1 gnd)
380V (export) 120V (transformer) 3 Ph 50/60 Hz 36.8A 24.3 kW 3 Pole 4 Wire (3 hot, 1 gnd)
400-416V (export) 120V (transfomer) 3 Ph 50/60 Hz 33.8A 24.3 kW 3 Pole 4 Wire (3 hot, 1 gnd)
480V 120V (transformer) 3 Ph 60 Hz 29.2A 26.0 kW 3 Pole 4 Wire (3 hot, 1 gnd)
IMPORTANT
Additional electrical information is provided on the oven's serial plate, and on the wiring diagram inside the machinery
compartment.
SECTION 1 - DESCRIPTION
