ENGLISH
7

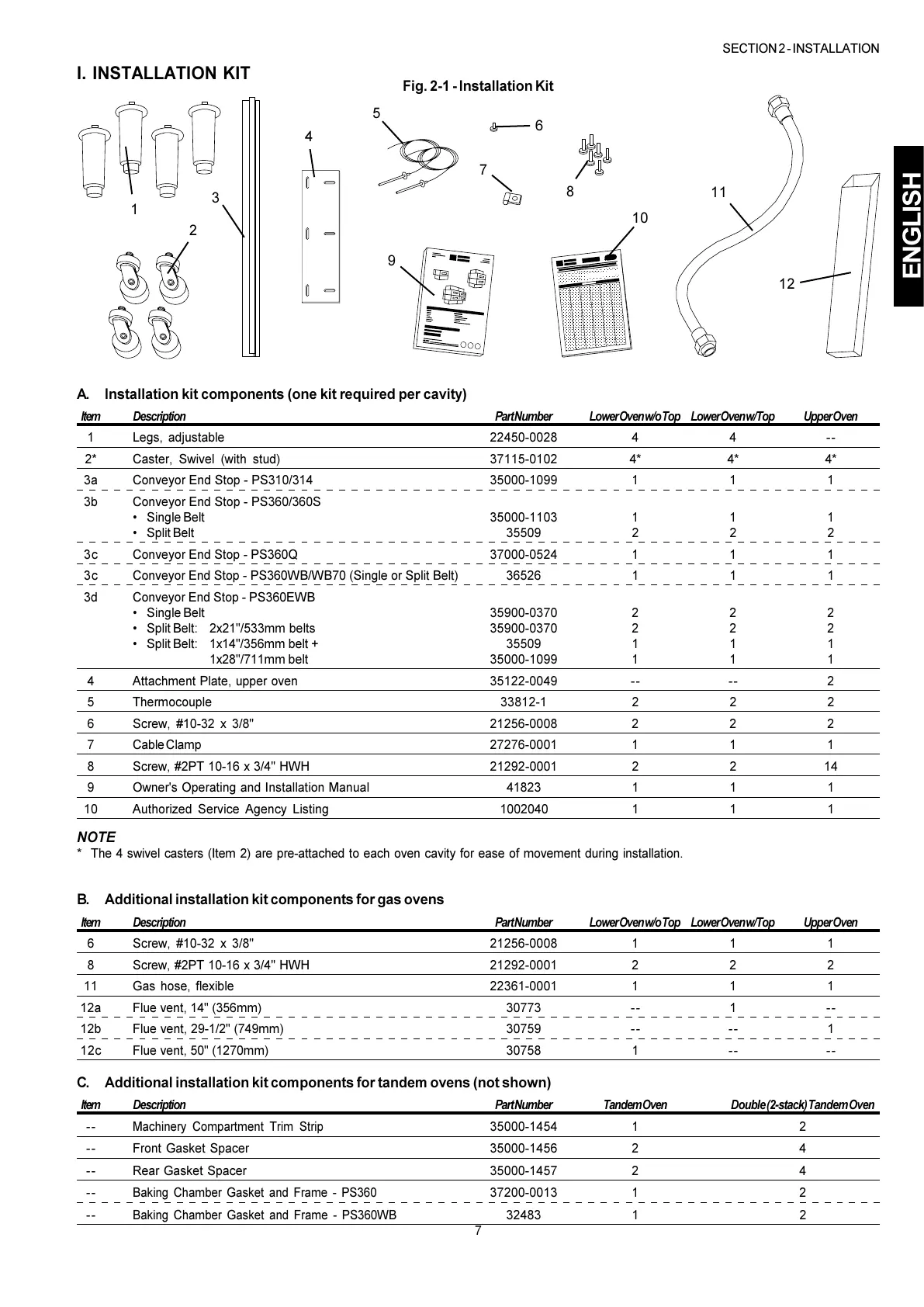

Fig. 2-1 - Installation Kit
I. INSTALLATION KIT
SECTION 2 - INSTALLATION
A. Installation kit components (one kit required per cavity)
Item Description Part Number Lower Oven w/o Top Lower Oven w/Top Upper Oven
1 Legs, adjustable 22450-0028 4 4 --
2* Caster, Swivel (with stud) 37115-0102 4* 4* 4*
3a Conveyor End Stop - PS310/314 35000-1099 1 1 1
3b Conveyor End Stop - PS360/360S
 Single Belt 35000-1103 1 1 1
 Split Belt 35509222
3c Conveyor End Stop - PS360Q 37000-0524 1 1 1
3c Conveyor End Stop - PS360WB/WB70 (Single or Split Belt) 36526111
3d Conveyor End Stop - PS360EWB
 Single Belt 35900-0370 2 2 2
 Split Belt: 2x21"/533mm belts 35900-0370 2 2 2
 Split Belt: 1x14"/356mm belt + 35509111
1x28"/711mm belt 35000-1099 1 1 1
4 Attachment Plate, upper oven 35122-0049 -- -- 2
5 Thermocouple 33812-1 2 2 2
6 Screw, #10-32 x 3/8" 21256-0008 2 2 2
7 Cable Clamp 27276-0001 1 1 1
8 Screw, #2PT 10-16 x 3/4" HWH 21292-0001 2 2 14
9 Owner's Operating and Installation Manual 41823111
10 Authorized Service Agency Listing 1002040 1 1 1
NOTE
* The 4 swivel casters (Item 2) are pre-attached to each oven cavity for ease of movement during installation.
B. Additional installation kit components for gas ovens
Item Description Part Number Lower Oven w/o Top Lower Oven w/Top Upper Oven
6 Screw, #10-32 x 3/8" 21256-0008 1 1 1
8 Screw, #2PT 10-16 x 3/4" HWH 21292-0001 2 2 2
11 Gas hose, flexible 22361-0001 1 1 1
12a Flue vent, 14" (356mm) 30773 -- 1 --
12b Flue vent, 29-1/2" (749mm) 30759 -- -- 1
12c Flue vent, 50" (1270mm) 30758 1 -- --
C. Additional installation kit components for tandem ovens (not shown)
Item Description Part Number Tandem Oven Double (2-stack) Tandem Oven
-- Machinery Compartment Trim Strip 35000-1454 1 2
-- Front Gasket Spacer 35000-1456 2 4
-- Rear Gasket Spacer 35000-1457 2 4
-- Baking Chamber Gasket and Frame - PS360 37200-0013 1 2
-- Baking Chamber Gasket and Frame - PS360WB 32483 1 2
2
1
3
5
6
7
9
10
11
12
8
4
