Fan
assembly

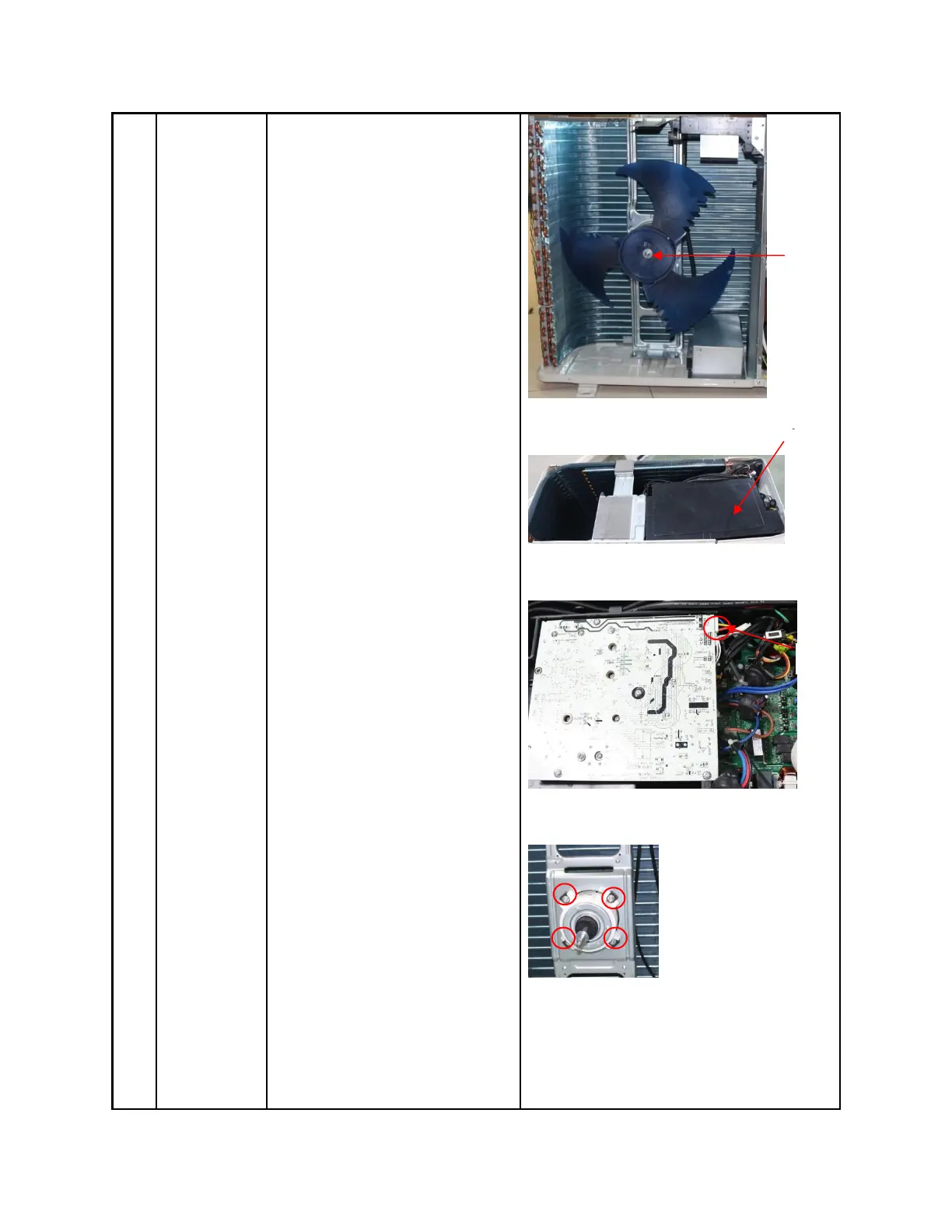

How to remove the fan
assembly.
1) Remove the top cover,
right front side panel and
front panel from item 1.step
1~4
2) Remove the hex nut fixing
the fan.
3) Remove the fan.
4) Remove the cover of
electrical control box cover.
5) Disconnect the fan motor
connector CN14(5p,white)
from the IPM board.
6) Remove the fan motor
after unfastening four fixing
screws.
②
④
4s
cr
e
w
s
⑤
⑤
