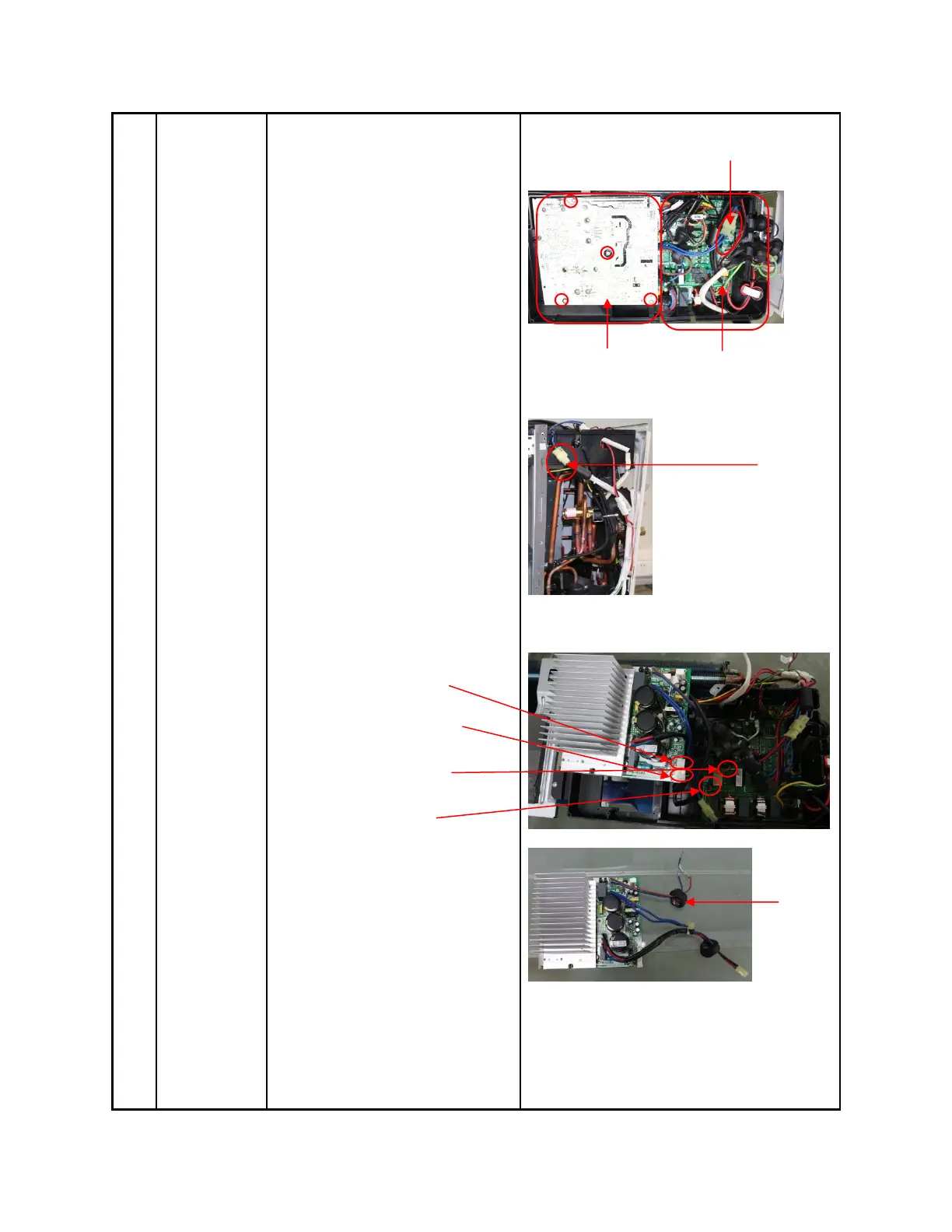

How to remove the electrical
parts.
1) Perform work of item 1,2.
2) Remove the four screws
fixing the IPM board.
3) Unfasten the connector
of the reactor.
4) Unfasten the connector
of the compressor.
5) Disconnect following 3
pieces of connection wires and
connectors between IPM and
PCB.
CN1(5p,white)
CN14(3p,white)
CN3(red or brown)
CN5(blue)
6) Remove the IPM board.
