Midea Advantage Series User Manual

125

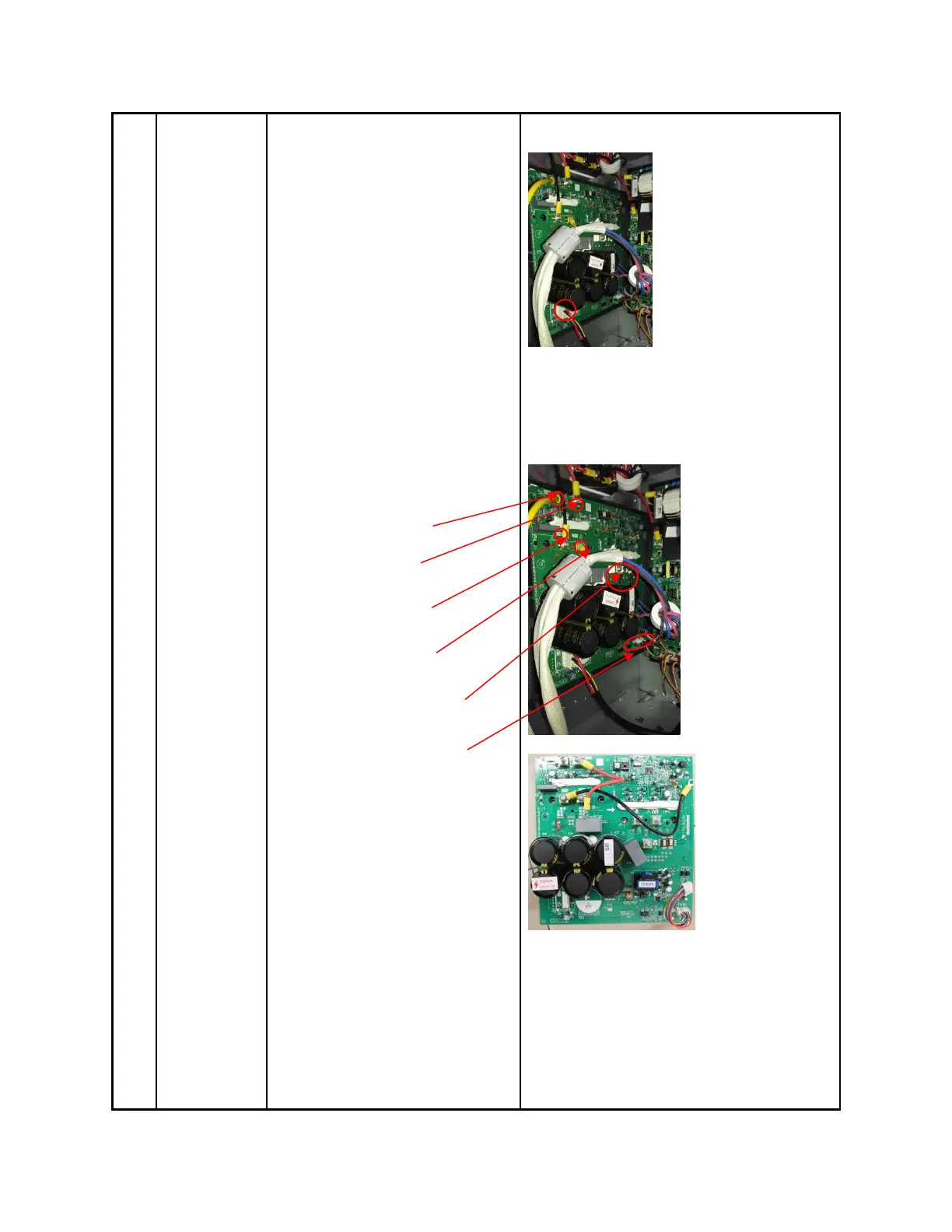

2) Disconnect the fan motor
Connector(5p,white) from the
IPM board.
3) Disconnect following 8
pieces of connection wires and
connectors between IPM and
other parts.
CN2(yellow)
CN1(red)
CN6(black)
CN3(yellow)
U、V、W(black)
CN9(10p,white)
4) Remove the fixing screws
then remove the IPM board.
5) Disconnect the
connectors and wires
connected from PCB and other
parts.
Connectors:
CN8: Discharge temperature sensor
DC Fan
Driver board
