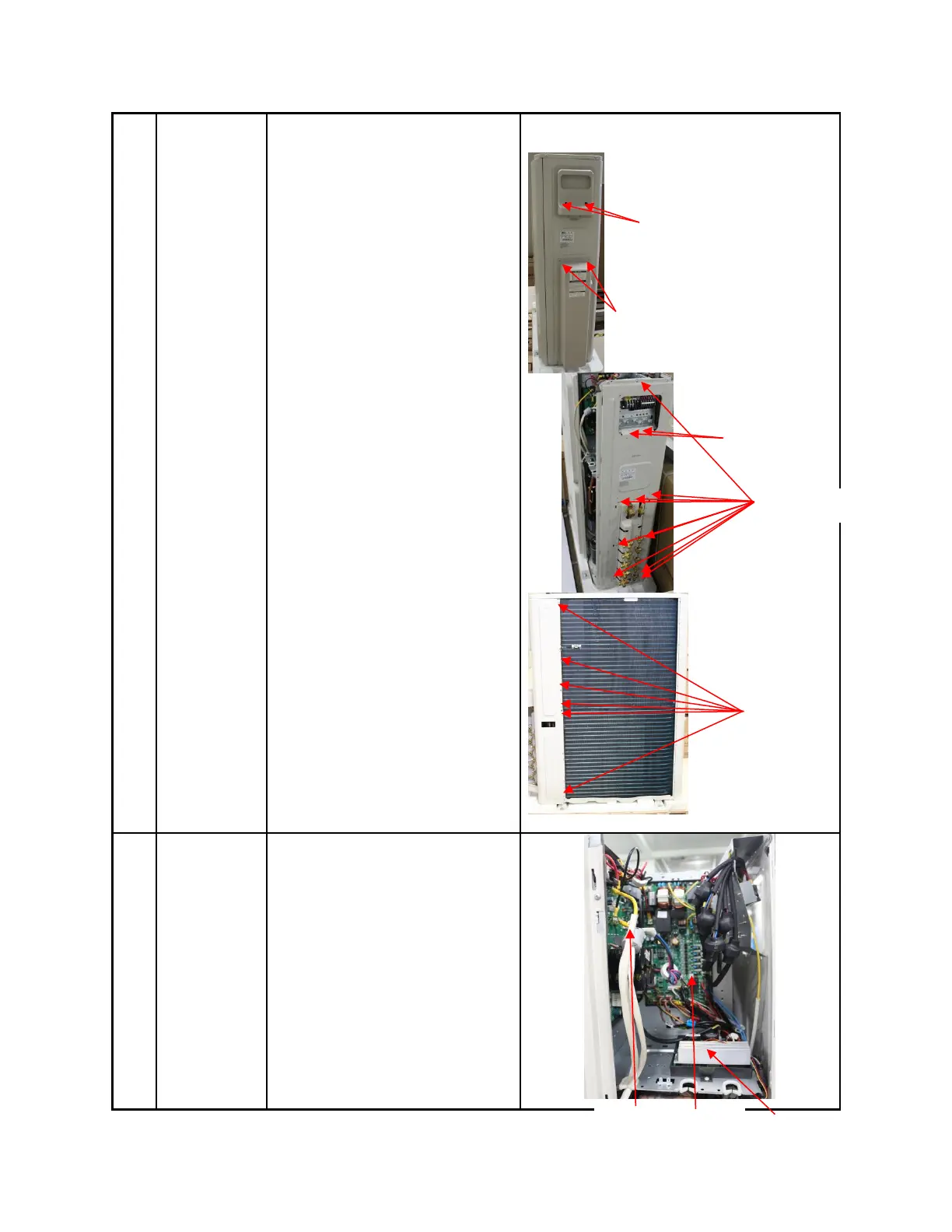

Panel plate
How to remove the panel
plate.
4) Remove big handle.(2
screws) and water
collector(2 screws)
5) Remove 2 screws of
terminal board and 15
screws of right-rear panel,
and remove the right-rear
panel.
3
Electrical
parts
How to remove the electrical
parts.
1) Perform work of item 1
step 5~6 and item 2.
IPM board
PCB board
Screws of
Water collector
Screws
of big
handle
Screws of right-
rear panel
Screws of
terminal board
Screws of right-
rear panel
