19

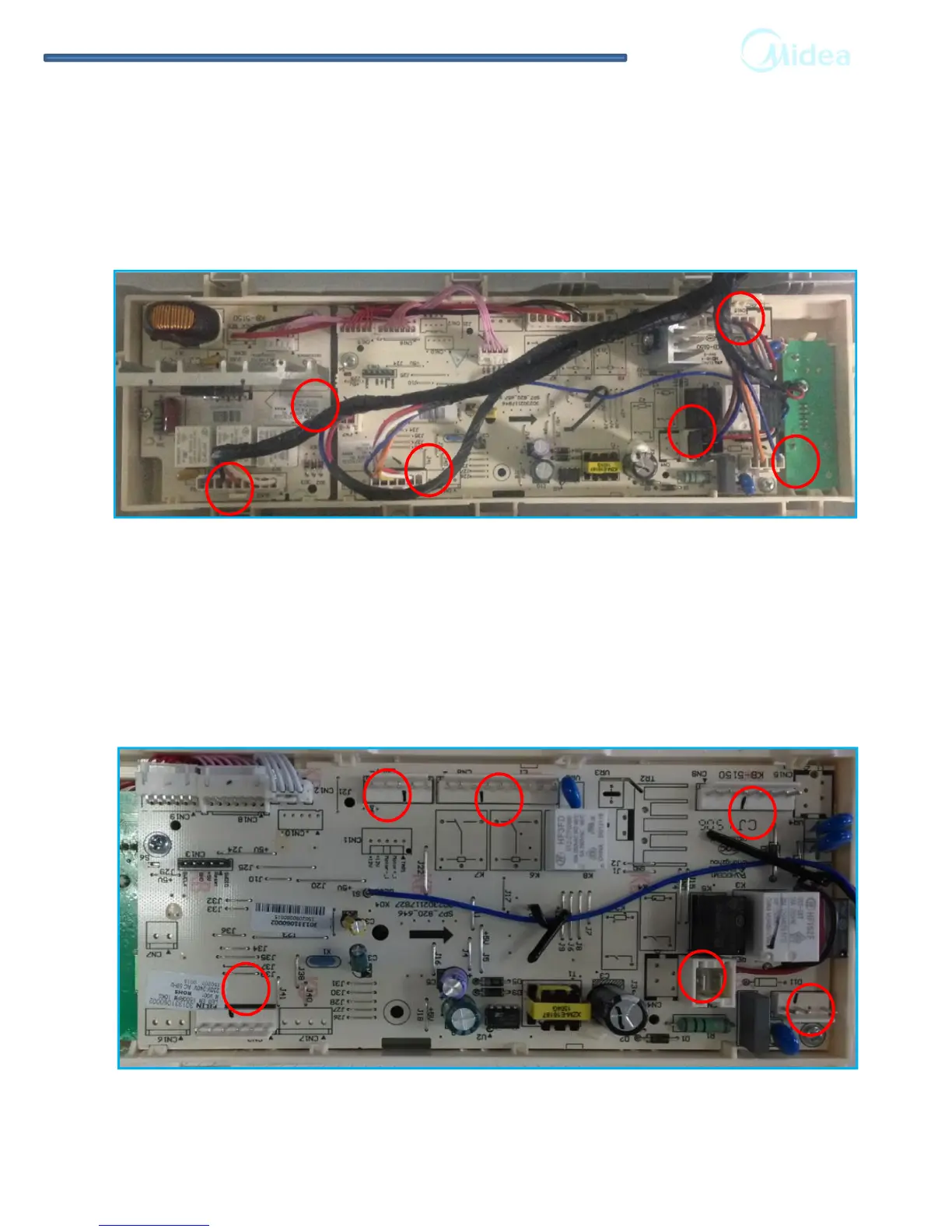

4.3 PCB Layout(Universal Motor )
1 Moto
2 Inlet Valve & Drain Pump & Door Lock
3 Moto Tacho
4 Temp Sensor & Water Sensor
5 Noise Filter & Heater
6 Noise Filter & Drain Pump & Door Lock
1
2
3
4
5
6
4.4 PCB Layout(Inverter Motor)
1 Inverter Motor communications
2 Inverter Motor
3 Inlet Valve & Drain Pump & Door Lock
4 Temp Sensor & Water Sensor
5 Noise Filter & Heater
6 Noise Filter & Drain Pump & Door Lock
1
2
3
4
5
6
4 WIRING DIAGRAM/PCB LAYOUT
