Midea DLCERAH09AAK - Outdoor Unit Dimensions; Dimensions and Weight Information

32808001101 5
Specifications subject to change without notice.
DIMENSIONS
Table 4—Dimensions
Cooling
Only
System Size Height (H) in. (mm) Width (W) in. (mm) Depth (D) in. (mm) Weight-Net lbs. (kg)
12K (115V) 21.85(555) 30.31(770) 11.81(300) 57.8(26.2)
12K (208/230V) 21.85(555) 30.31(770) 11.81(300) 53.8(24.4)
18K (208/230V) 21.81(554) 31.50(800) 13.11(333) 70.1(31.8)
24K (208/230V) 27.64(702) 33.27(845) 14.29(363) 88.6(40.2)
Heat
Pump
System Size Height (H) in. (mm) Width (W) in. (mm) Depth (D) in. (mm) Weight-Net lbs. (kg)
12K (115V) 21.85(555) 30.31(770) 11.81(300) 69.0(31.3)
9K (208/230V) 21.85(555) 30.31(770) 11.81(300) 63.0(28.6)
12K (208/230V) 21.85(555) 30.31(770) 11.81(300) 65.5(29.7)
18K (208/230V) 21.81(554) 31.50(800) 13.11(333) 79.6(36.1）
24K (208/230V) 27.64(702) 33.27(845) 14.29(363) 114.2(51.8)
19.17(487) W1
2.76(70) W
11.73(298)
21.85(555)
11.81(300) D
H
0.47(12)
2.36(60)
3.66(93)
H1
H2
D1
30.31(770) W
30.66(779) W3
13.07(322)
D2
0.98(25) B1
3.54(90) B2
2.42(61.5) A2
0.47(12) A1
R
0
.24(6)
11.26(286)
D3
Unit: inch(mm)

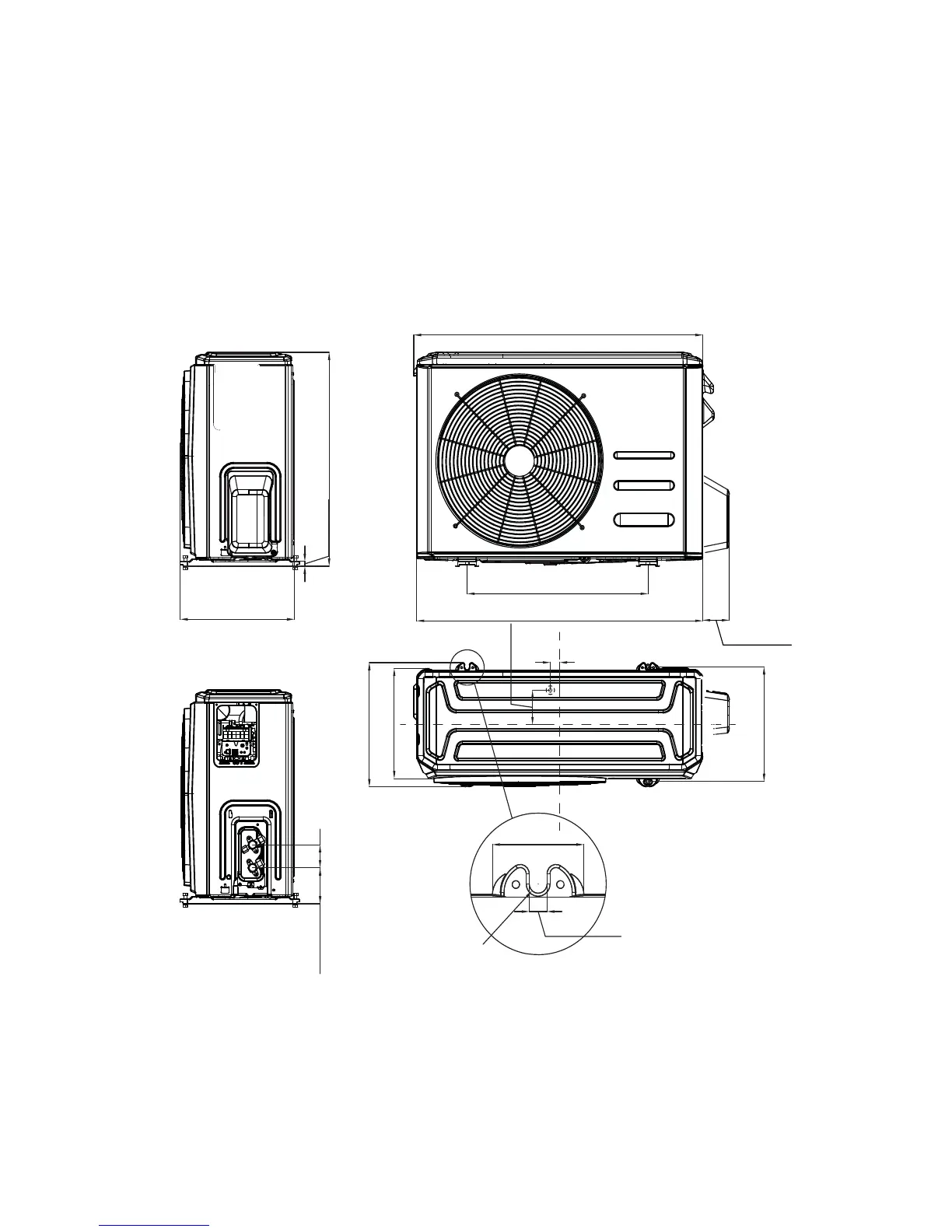

Fig. 1 - Sizes 9K and 12K
