DIMENSIONS − OUTDOOR
L2
D
D
H
W

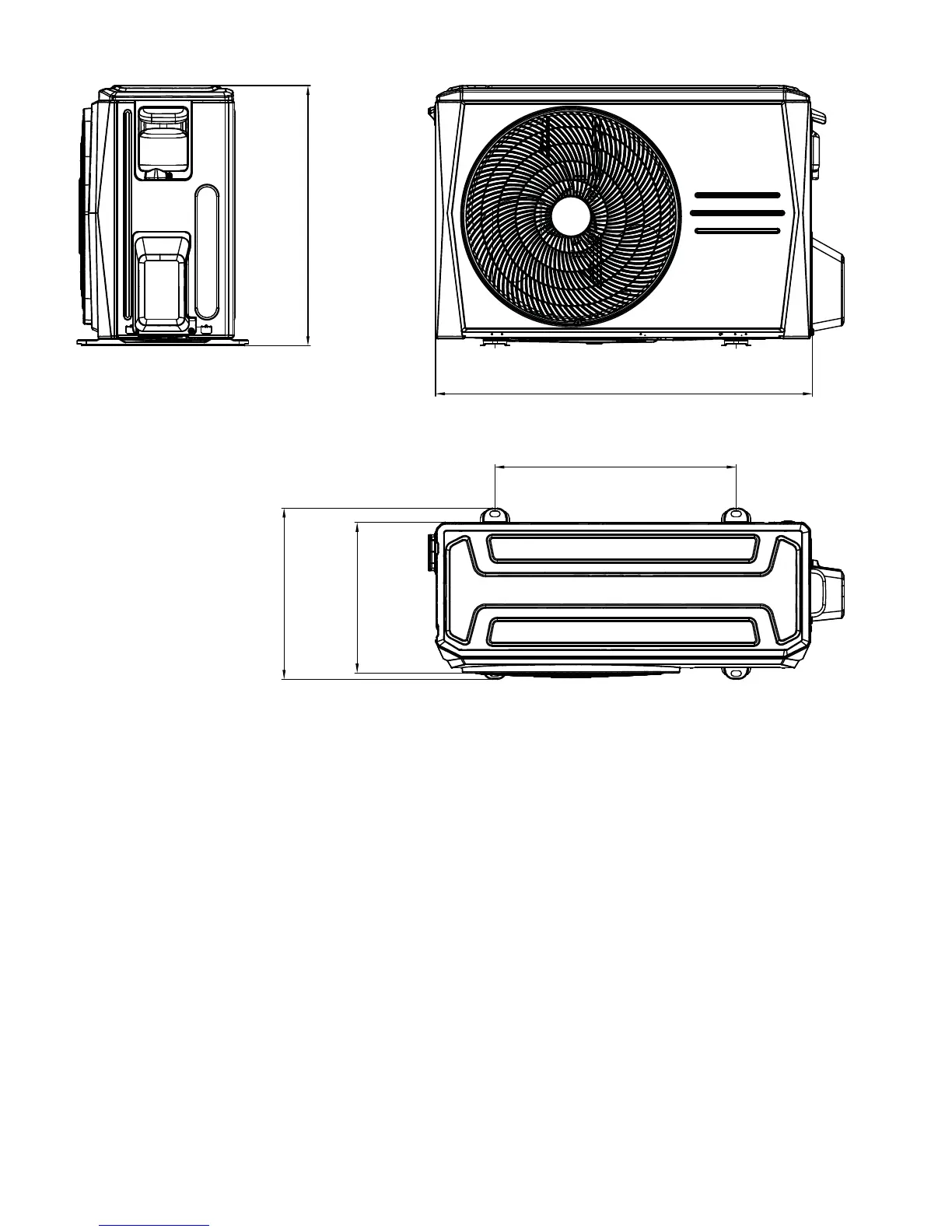

Fig. 2 - Outdoor Unit
Table 4—Unit Sizes
System Size
9K
(115)
12K
(115V)
9K
(208/230V)
12 K
(208/230V)
18K
(208/230V)
23K
(208/230V)
30K
(208/230V)
36K
(208/230V)
Outdoor Unit
Unit
Height
(H)
in
(mm)
21.85
(555)
21.81
(554)
21.81
(554)
21.81
(554)
27.64
(702)
31.89
(810)
31.89
(810)
31.89
(810)
Width
(W)
in
(mm)
30.31
(770)
31.5
(800)
31.5
(800)
31.5
(800)
33.27
(845)
37.24
(946)
37.24
(946)
37.24
(946)
Depth
(D)
in
(mm)
11.81
(300)
13.11
(333)
13.11
(333)
13.11
(333)
14.29
(363)
16.54
(420)
16.54
(420)
16.54
(420)
L1
in
(mm)
19.2
(487)
20.24
(514)
20.24
(514)
20.24
(514)
21.26
(540）
26.5
(673）
26.5
(673）
26.5
(673）
L2
in
(mm)
11.73
(298)
13.39
(340)
13.39
(340)
13.39
(340)
13.8
(350）
15.87
403）
15.87
(403）
15.87
403）
Weight
-Net
lbs.
(kg)
67.9
(30.8)
80.7
(36.6)
90.8
(41.2)
91.7
(41.6)
113.3
(51.4)
141.1
(64)
137.8
(62.5)
143.3
(65)
