2.2.2 Engineering conguration
2.2.2.1. Keys and switch

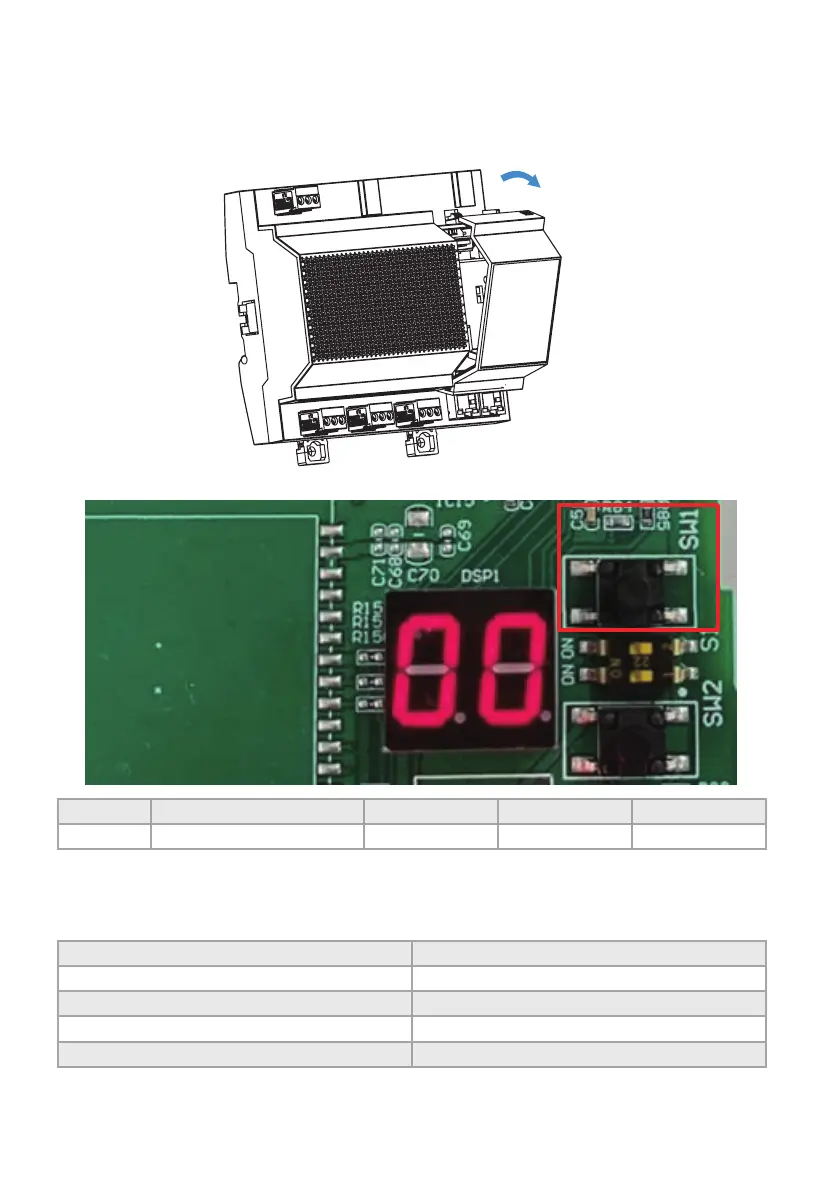

Remove the upper cover,you will see the keys and switch
SW1 SW2 S1_1 S1_2
Function Restore factory setting Check Protocol Select Protocol Reserved
2.2.2.2. Protocol setting
The system protocol supported by the gateway can be checked through the SW2 button on the PCB
of the gateway and set through S1_1 switch.
ODU and IDU system Protocol type
V8 ODU+V8 IDU V8
V8 ODU+2
nd
generation IDU V6
V6 ODU+2
nd
generation IDU V6
V8 IDU V8
