Midea HS-625FWEN

Service Manual_2020-V1.0
14

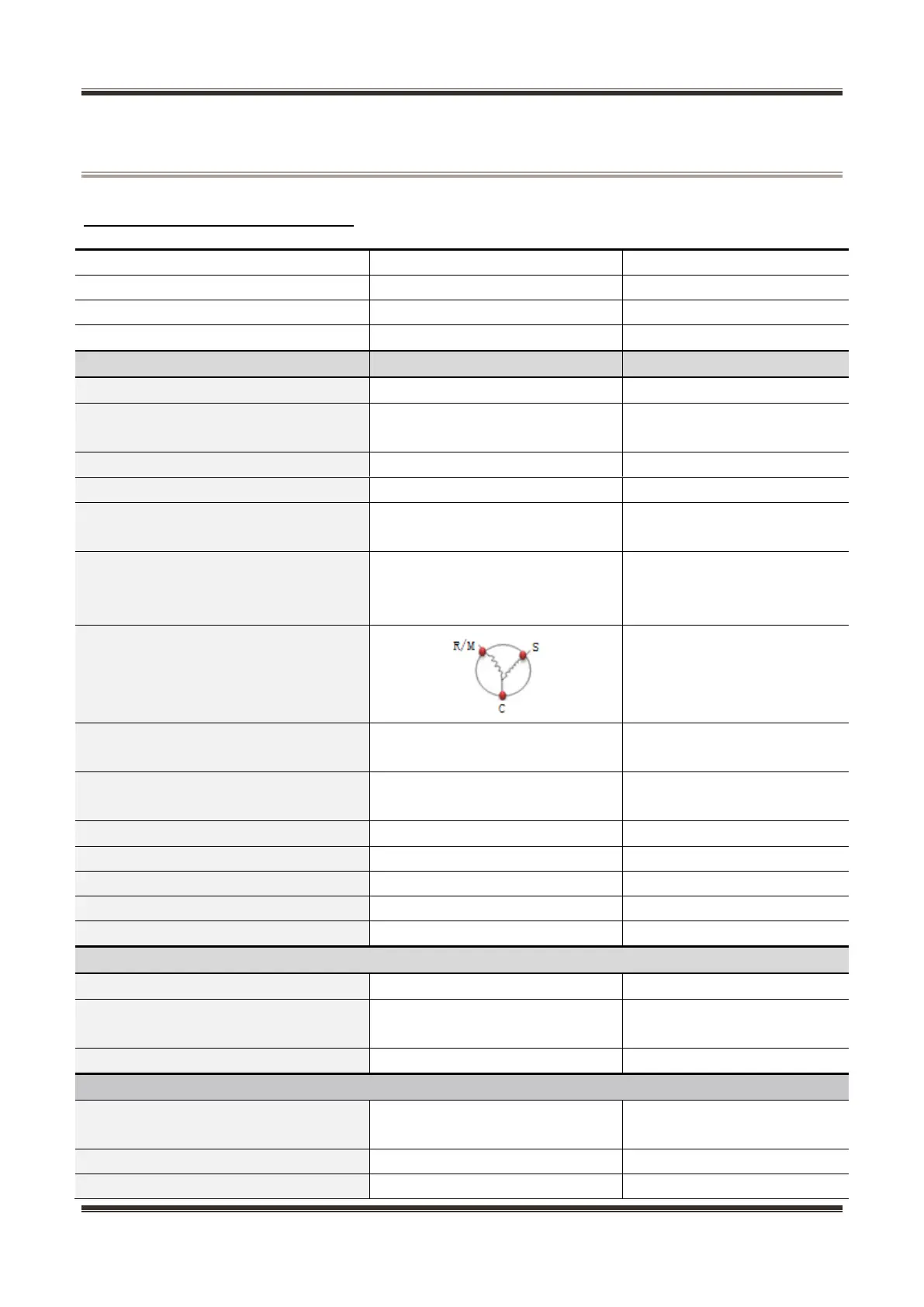

5. Electric control system
5.1 Electrical parts parameters
Applicable Model
HS-774FWEN
Product Model
UR-BD481WE-ST
Product code
22031010002925
Rated Voltage
115V、60Hz
Item
Specification
Refrigerant
R600a
Compressor
EZ75E1A (GMCC)
(Part code : 11101010011093)
Starting device type
Fixed Speed
The COP of compressor
1.64 (W/W)
The max cooling capacity of
compressor
153 W
Winding resistance of compressor
wiring terminal (20℃)
Rmc:5.35Ω±7%
Rsc:8.01Ω±7%
Rms = Rmc + Rsc
Winding resistance picture
Starter(PTC)
8EA14C3-02
(Part code : 12031000001063)
Overload protector(OLP)
4TM302TFBYY
(Part code : 12031000001311)
Integrate PTC+OLP
None
Variable frequency driver board
None
Capacitor
8μF、250V
Power filter (EMI)
None
Power reactor (EU EMC)
None
Motor
Fan motor of the freezing chamber
DC12V、2.4 W、2020r/min
Fan motor of the refrigerating
chamber
None
Electric damper
None
Lights
Lights inside the top of refrigerating
chamber
None
Lights inside the freezing chamber
DC12V、≤6W
Others Lights
None
