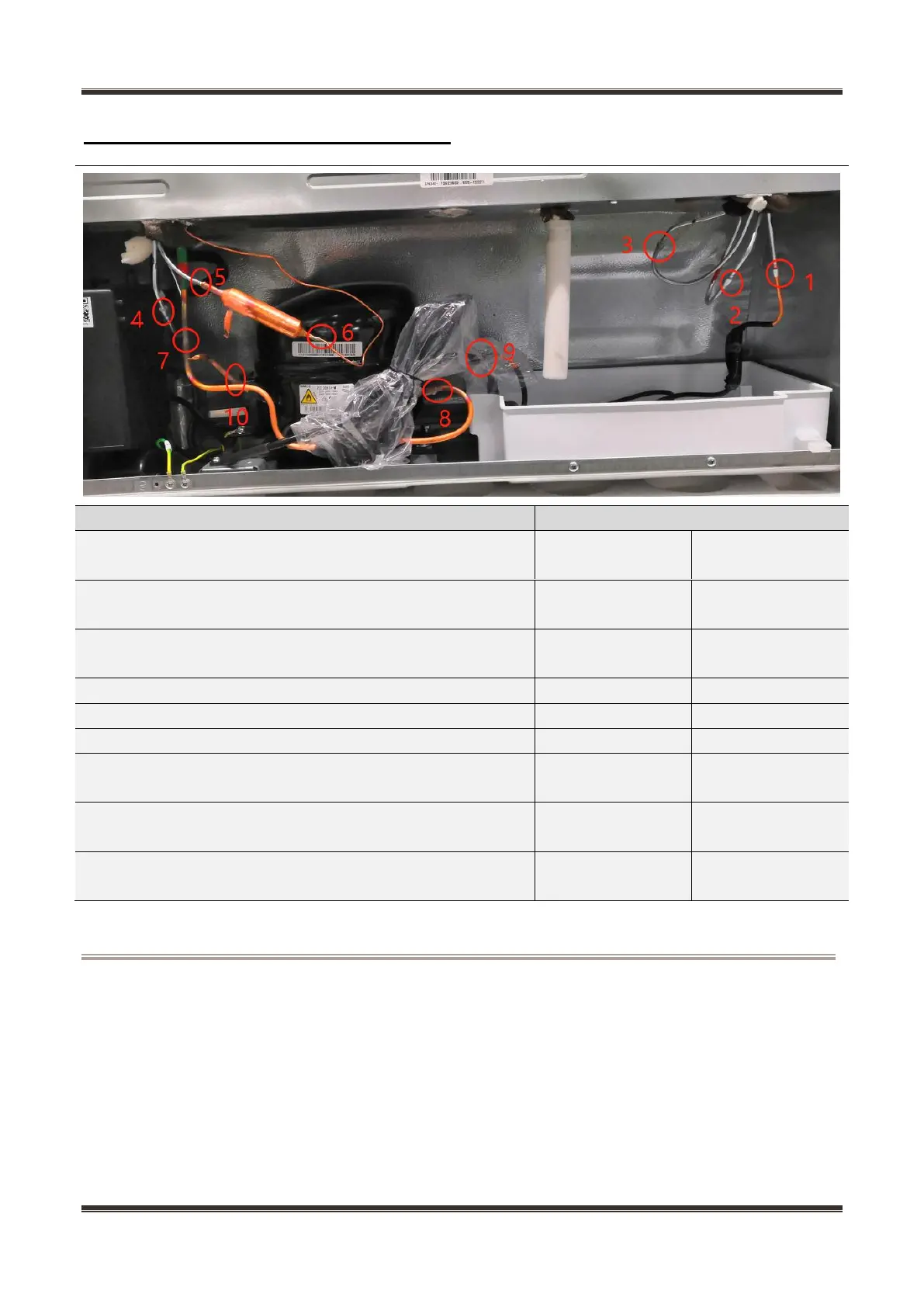

6.5 Welding point in the compressor case
1-Inlet of right condenser tube and outlet of venting
connection tube
2-Inlet of anti-condensation tube and outlet of right condenser
tube
3-Outlet of anti-condensation tube and inlet of left condenser
tube
4-Outlet of left condenser tube and inlet of dry filter
5-Outlet of dry filter and inlet of freezer capillary
6-Heat transition tube and Suction connection tube
7-Suction connection pipe and compressor intake tube
8-Compressor outlet tube and inlet of venting connection tube
9-Compressor process tube and refrigerant filling tube
