8
步骤
6

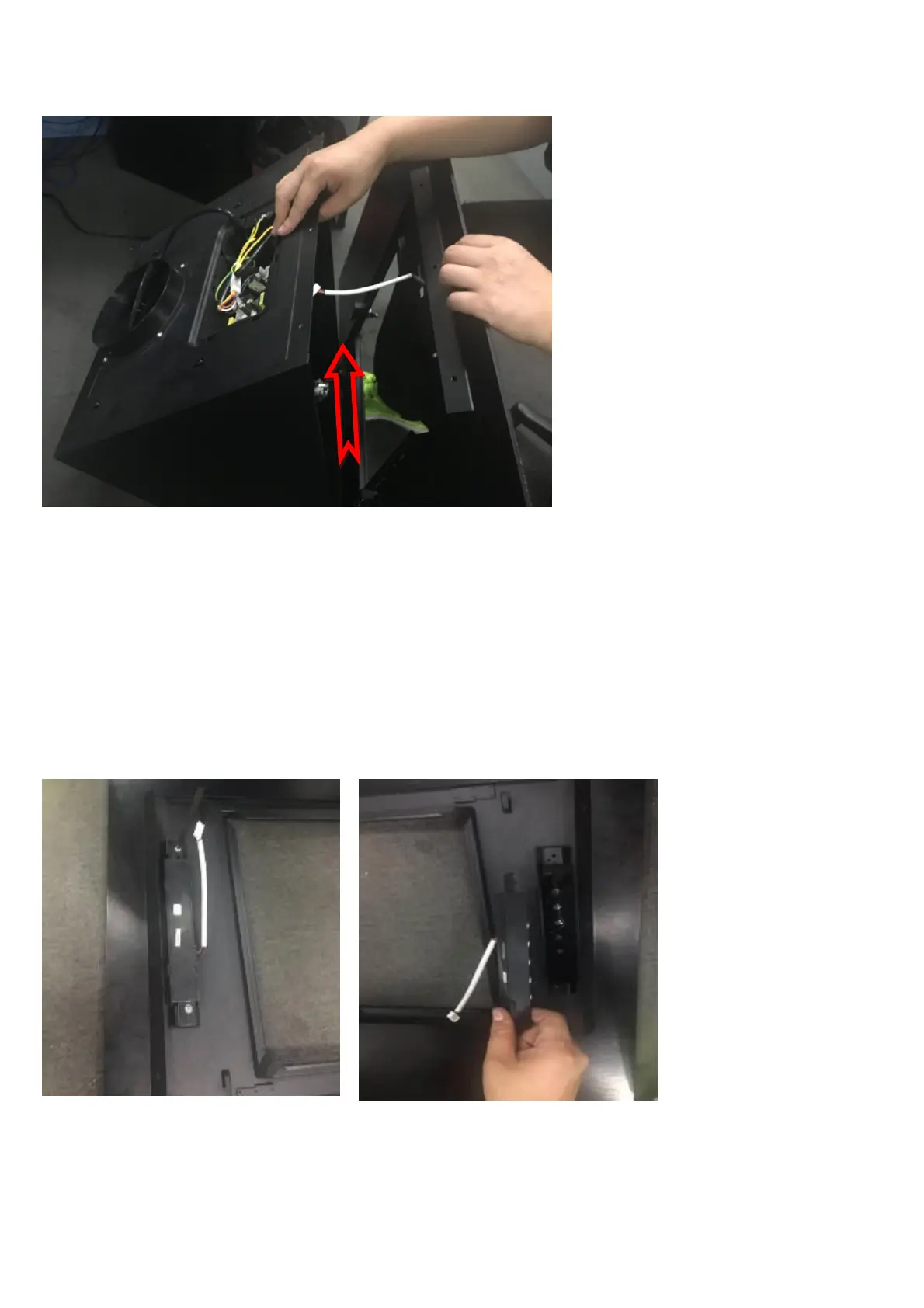

：如上图所示，将导流板延箭头方向轻抬后拆除。
Step 6
:
As shown in the picture above, lift the guide plate upwards lightl
y and dismantle it.
6.4
开关拆卸
Switch Dis
mounting
工具：十字螺丝刀
T
ool:
Cross Screwdriver
步骤
1
：如上
6.3
将导流板拆除后，拆除开关处两个螺钉，将开关取下
。
Step 1:
As above 6.3, after dismantling the guide plate, remove two screws from it while dismantle switch.
9
11
