- - 7
用手抠住过滤网扣手向下压住再向箭头方向拉。
Clasp the filter buckle by hand, press down and pull out
6.3 拆除导流板 Guide Plate Dismounting
工具：十字螺丝刀 Tool: Cross Screwdriver

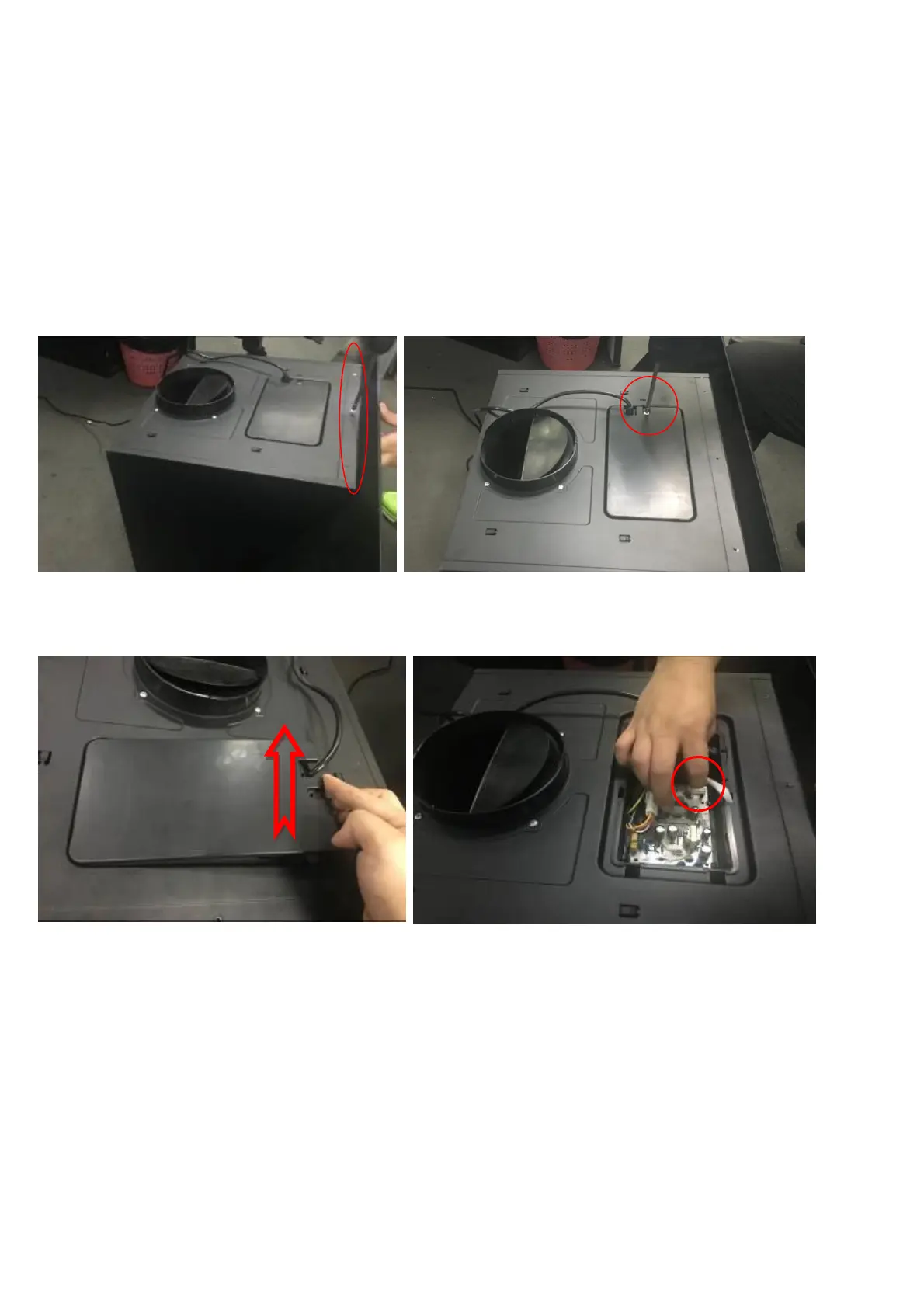

步骤1：如下图左所示，将烟机箱体上三颗螺钉拆除。
Step 1: As shown in the left picture below, remove three screws from hood box.
步骤 2：如上图右所示，将烟机箱体上接线盒 1 颗螺钉拆除
Step 2: As shown in the right picture above, remove one screw from junction box.
步骤 3：如上图左所示，将接线盒盖向上抬起拆除。
Step 3: As shown in the left picture above, we should lift the junction box cover up and remove it.
步骤 4：如上图右所示，将触摸开关端子拆除。
Step 4: As shown in the right picture above, pull out the touching switch terminal.
步骤 5：如下图所示，将触摸开关端子从接线盒缝隙处移出。
Step 5: As shown in the picture below, remove the switch terminal from junction box gap.
