No inflammable, explosive or non-heat-resistant article should contact or approach around the range hood.
3. 挂置烟机的墙面应具有足够强度且足够平坦，以保证本产品有足够的稳定性。
The wall where the hood hung should have sufficient strength to ensure product’s adequate stability.
5.2 烟机的安装 Range Hood Installation

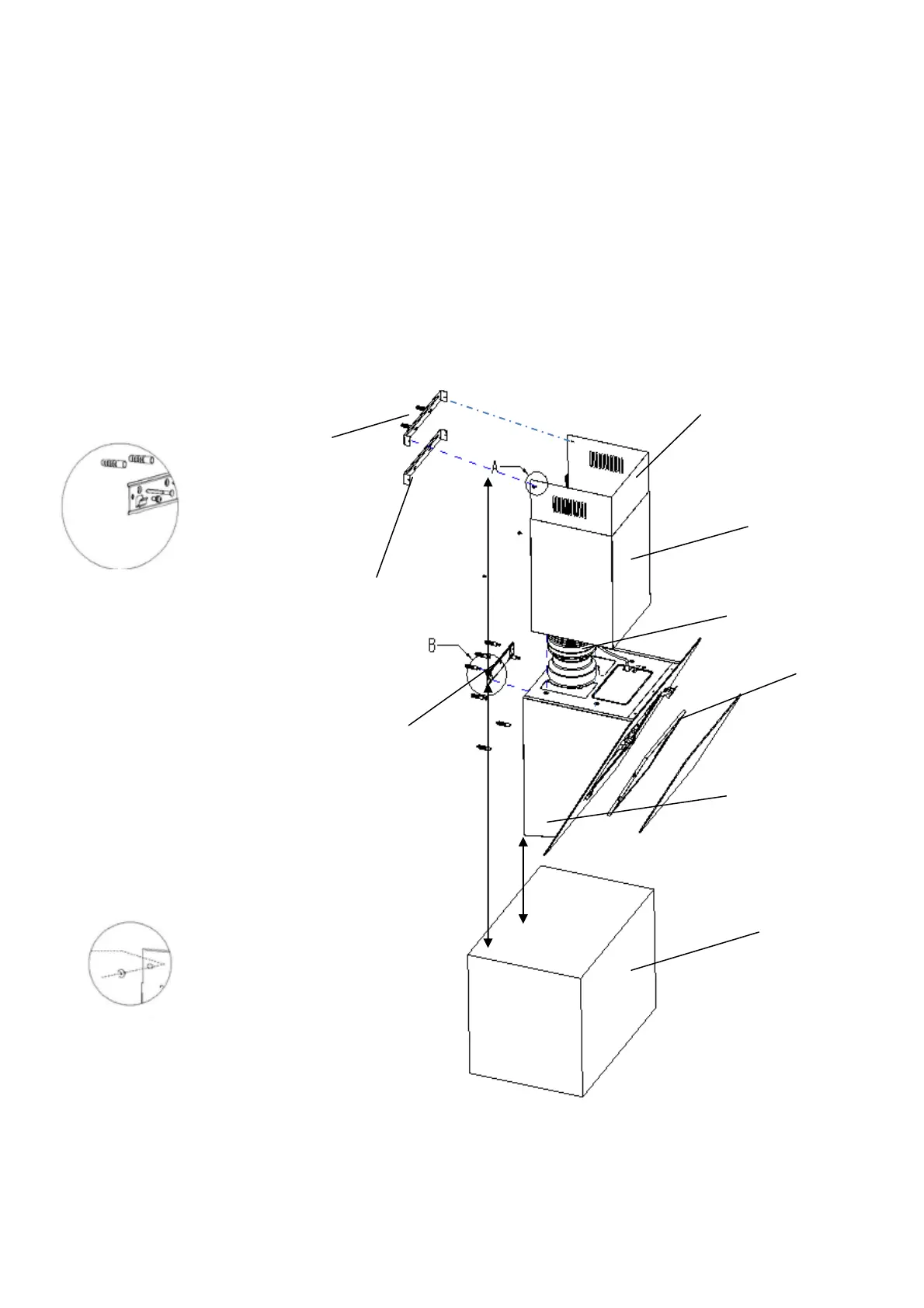

近吸油烟机安装图
Installation Diagram of Near suction Range Hood
Decorative
Cover Plate
装饰罩挂板
Adjustable
Trim Cover
Plate
可调装饰罩挂
板
Adjustable Trim
Cover
可调装饰罩
Adjust according to the actual need
B. Detail Drawing
B. 详细视图
先按尺寸在墙上打洞，然
后把膨胀管放进洞里，用
5*50 木工螺钉穿过机体挂
板固定在墙上。
Punch on the wall
according to dimensions, put
expansion pipe into the hole
on the wall, use 5*50 wood
screws to cope through the
body plate and fix it on the
wall
A. Detail Drawing
A. 详细视图
先把可调装饰罩挂板固定在墙上，
然后用 ST4.2*9.5 大扁头穿过可调装
饰罩固定在可调装饰罩挂板上。
Fix the adjustable decoration cover
plate on the wall firstly, then use
ST4.2*9.5 big flat head screw to come
through the cover and fix it on the plate
To Next Page
