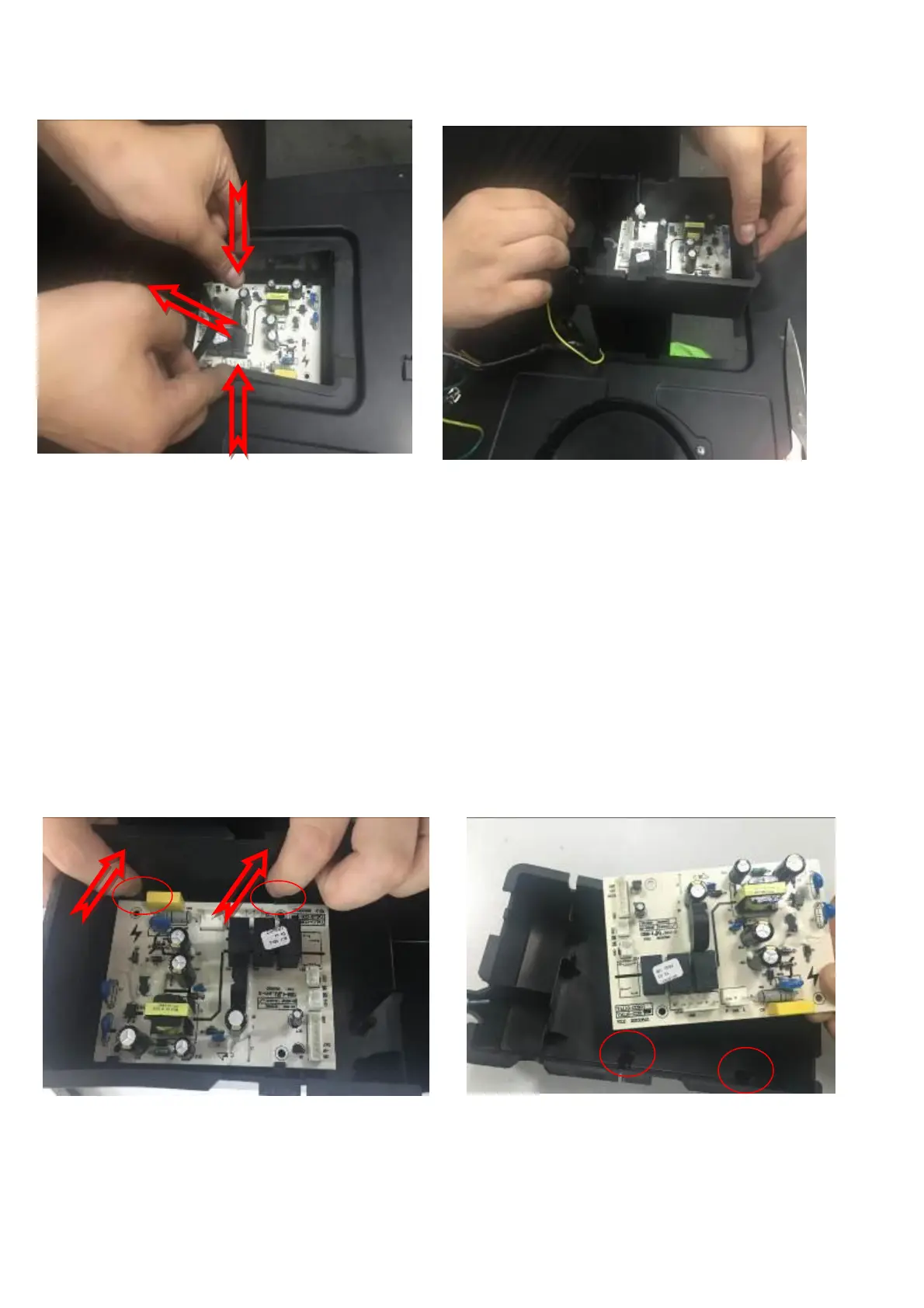

步骤5：如上图所示，延箭头方向挤压接线盒使卡扣脱离槽,同时向上抬起接线盒。
Step5: As shown in right picture above, press the junction box fastener out of groove in the direction of
arrow while pull out it.
拿出接线盒，完成接线盒的拆除。
Put the junction box out of the hood box and complete junction box dismounting .
6.7 接线板拆装 Terminal Block Dismounting
步骤1：如下图所示，延箭头方向按住接线盒卡扣同时拿出接线板。
Step1: Press two junction box fasteners( force them along the arrow) while put the terminal block out as
picture below.
