Midea JL1850S-RO

36

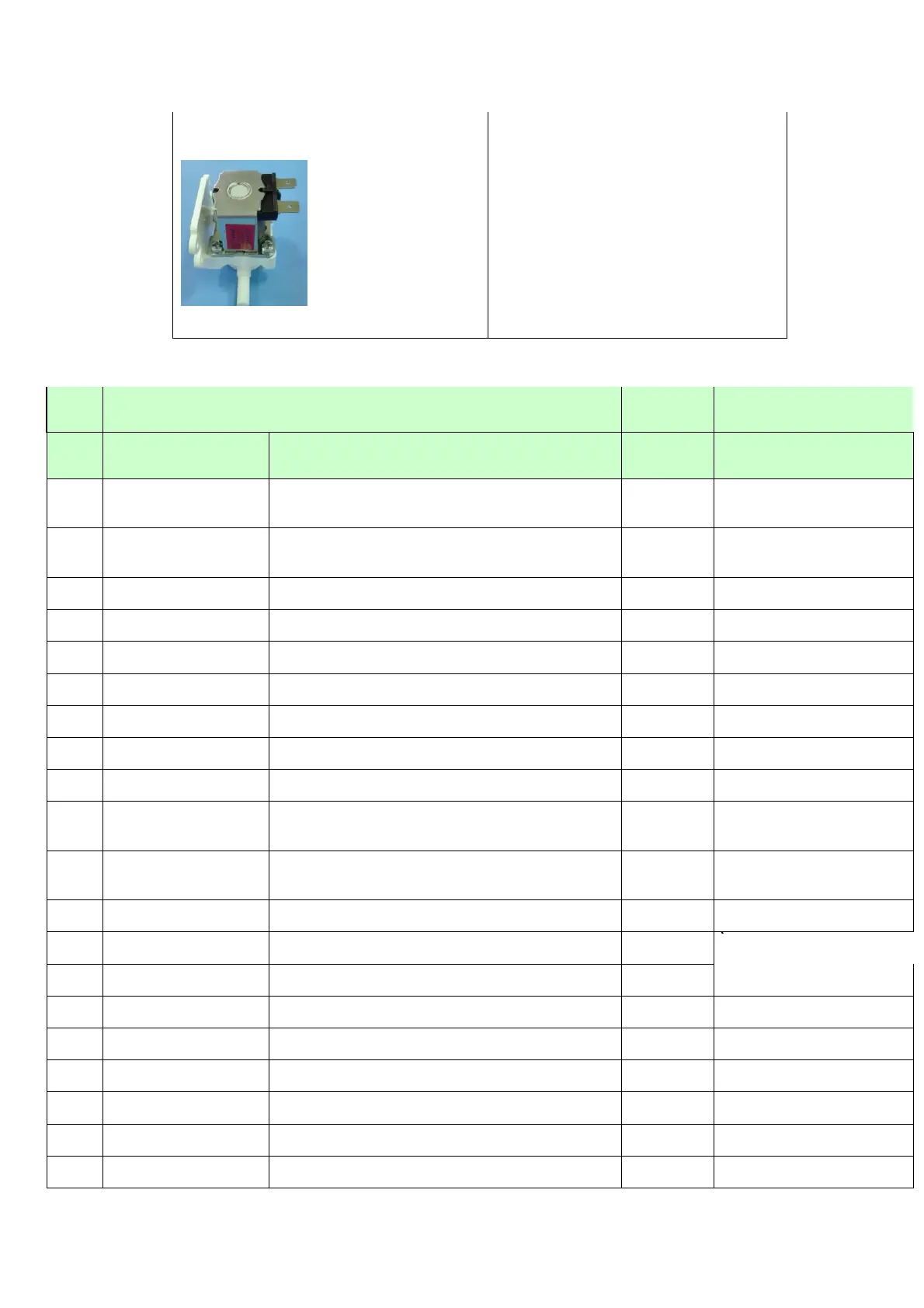

Product Exploded views and Part List
S/N
Part Name
Quantity
BOM Code
No.
English Name
Part Name
Quantity
BOM Code
1
Lower door
assembly
Lower door assembly
1.0
12163100003082
1.1
Tempered glass
panel
Tempered glass panel
1.0
12563100000542
1.2
Lower door
Lower door
1.0
12163100002966
1.3
Lower door lining
Lower door lining
1.0
12163100003121
1.4
Doorseal
Doorseal
1.0
12163100000521
2
Silicone Tube
Silicone Tube
1.0
12663100000301
3
Seal ring
Seal ring
2.0
12663100000361
4
Drip tray
Drip tray
1.0
12163100002967
5
Drip tray cover
Drip tray cover
1.0
12263100000581
6
Front housing
assembly
front housing assembly
1.0
12163100003061
6.1
Tempered glass
panel
Tempered glass panel
1.0
12563100000581
6.2
Front housing
Front housing
1.0
12163100003062
7
Top cover
Top cover
1.0
12163100002968
8
Small plastic parts
Small plastic parts
1.0
17463100000701
9
Plastic cover
Plastic cover
1.0
12163200004642
10
Floater
floater
1.0
12163000009217
11
Water tank
water tank
1.0
12163200A03363
12
Left side panel
Left side panel
1.0
12263100000624
13
Power Cord
Power Cord
1.0
17463000A01682
14
Quick connector
quick connector
1.0
12163200000354
Flushing valve
